ACN10-AHSQH (2001)

Toyota Nadia

Production Apr 2001 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )

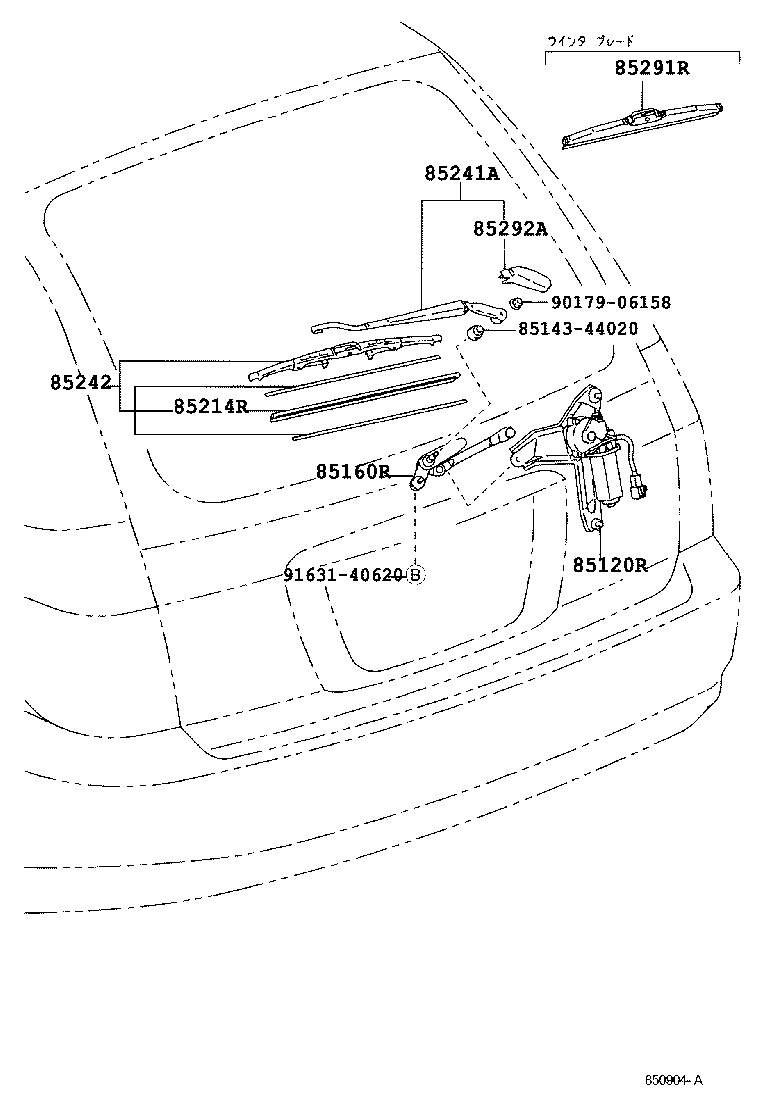

Click highlighted areas on diagram

diagram 85120R 8514344020 85160R 85214R 85241A 85242 85291R 85292A 9017906158 9163140620
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85080-44010

ACN1#,SXN1#

 1
85160R - LINK ASSY, REAR WIPER
85170-44010

ACN1#,SXN1#

 1
85214R - RUBBER, REAR WIPER
85214-26010

ACN1#,SXN1#

 1
85241A - ARM, REAR WIPER
85241-44030

ACN1#,SXN1#

 1
85242 - BLADE, RR WIPER
85242-26020

ACN1#

 1
85242-44020

ACN10,SXN1#

 1
85291R - BLADE,REAR WIPER, WINTER
85291-33050

ACN1#,SXN15

 1
85291-60020

ACN10,SXN1#

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-44020

ACN1#,SXN1#

 1
Common parts
85143-44020
90179-06158
91631-40620
