ACN10-AHSQH (2001)

Toyota Nadia

Production Apr 2001 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )1AZFSE

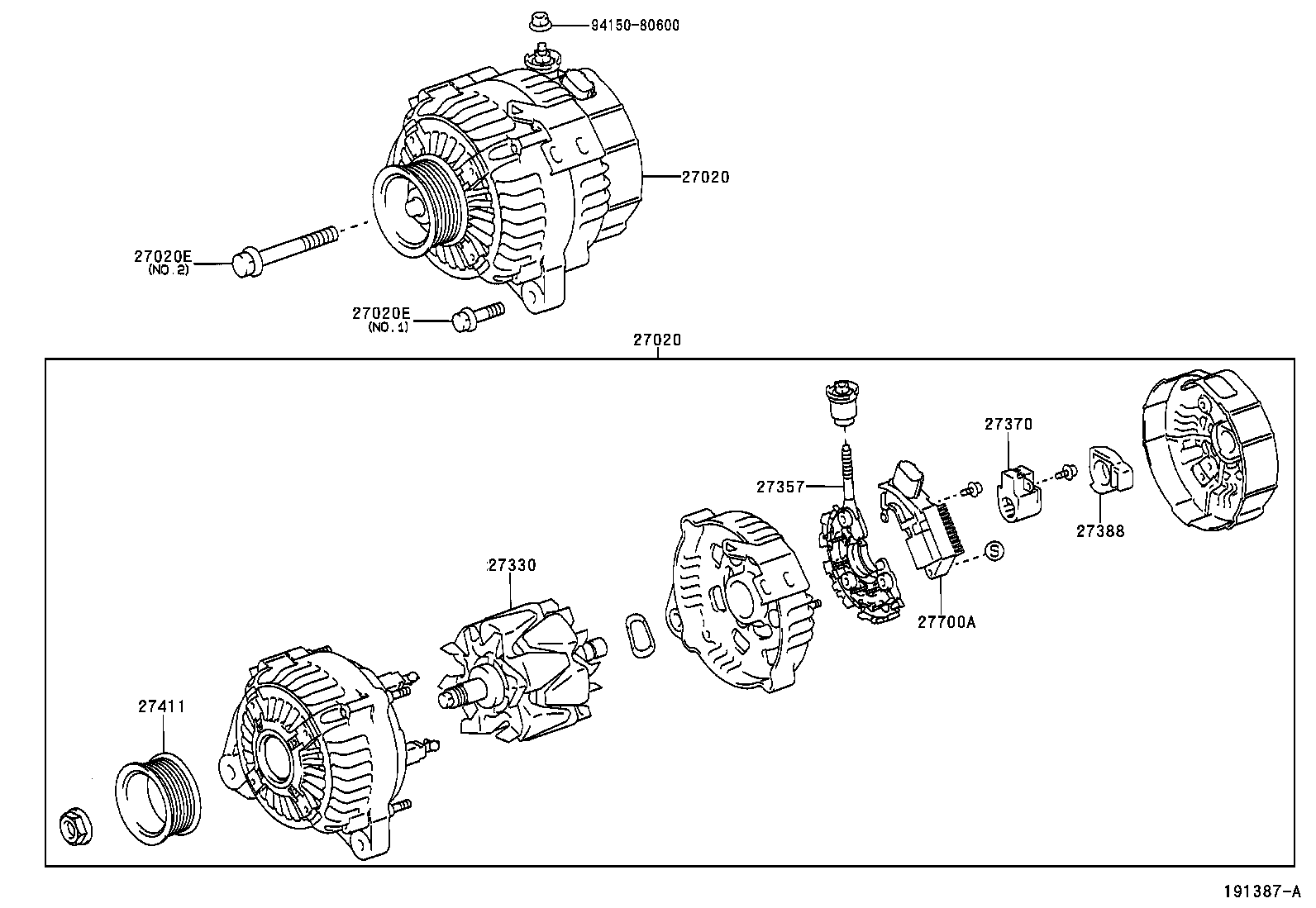

Click highlighted areas on diagram

12V 90A

diagram 27020 27020 27020E 27020E 27330 27357 27370 27388 27411 27700A 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-28120

1AZFSE..ACN1#

12V 90A

 1
27020 - ALTERNATOR ASSY
27060-28120

1AZFSE..ACN1#

12V 90A

 1
27020E - BOLT(FOR ALTERNATOR)
91512-81085

1AZFSE..ACN1#

NO.2

 1
91511-60840

1AZFSE..ACN1#

NO.1

 1
27020E - BOLT(FOR ALTERNATOR)
91512-81085

1AZFSE..ACN1#

NO.2

 1
91511-60840

1AZFSE..ACN1#

NO.1

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-74550

1AZFSE,3SFSE..ACN1#,SXN10

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-22070

1AZFSE..ACN1#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1AZFSE,3SF#..ACN1#,SXN1#

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

1AZFSE,3SF#..ACN1#,SXN1#

 1
27411 - PULLEY, ALTERNATOR
27411-28090

1AZFSE..ACN1#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-20050

1AZFSE..ACN1#

 1
Common parts
94150-80600
