ACN10-AHSQH (2001)
Toyota Nadia

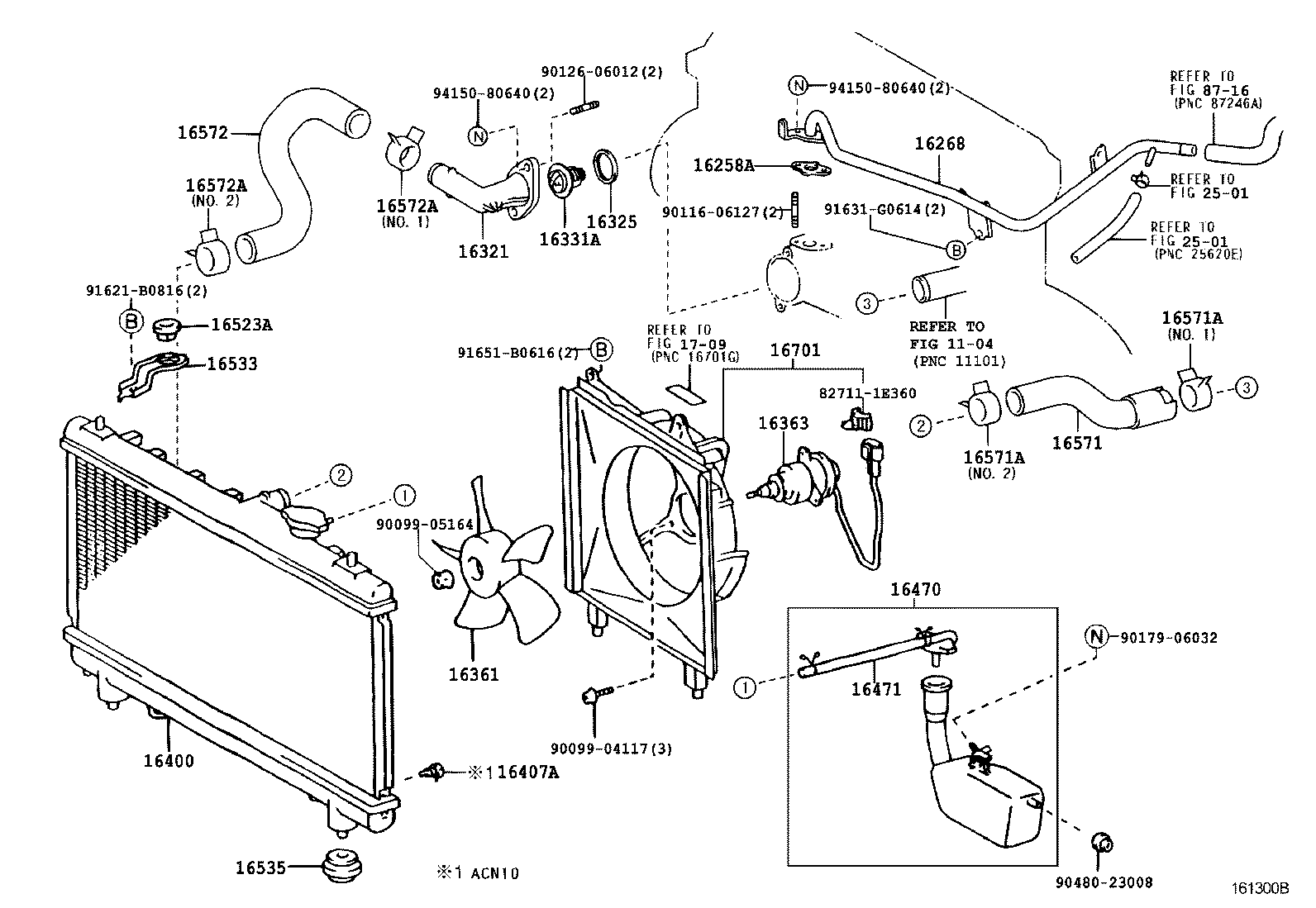

ILLUST NO. 1 OF 2(0104- )1AZFSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-28010 |
1AZFSE..ACN1# |
1 | ||
| 16258-28011 |
1AZFSE..ACN1# |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-28020 |
1AZFSE..ACN1# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-28010 |
1AZFSE..ACN1# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1AZFSE..ACN1# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03127 |
1AZFSE..ACN1# *WAX 88−100 |
1 | ||
| 16361 - FAN | ||||
| 16361-74140 |
1AZFSE..ACN1# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-74311 |
1AZFSE..ACN1# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-7A610 |
1AZFSE..ACN10 |
1 | ||
| 16407A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 90341-16016 |
1AZFSE..ACN10 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-74380 |
1AZFSE..ACN1# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-74330 |
1AZFSE..ACN1# |
1 | ||
| 16405-74340 |
1AZFSE..ACN1# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-74010 |
1AZFSE..ACN1# |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-28010 |
1AZFSE..ACN1# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74210 |
1AZFSE..ACN10 |
2 | ||
| 16535-64120 |
1AZFSE..ACN1# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-28140 |
1AZFSE..ACN1#..STD |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
1AZFSE..ACN1# NO.2 |
1 | ||
| 90466-37002 |
1AZFSE..ACN1# NO.1 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
1AZFSE..ACN1# NO.2 |
1 | ||
| 90466-37002 |
1AZFSE..ACN1# NO.1 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-28110 |
1AZFSE..ACN10..STD |
1 | ||
| 16572-28180 |
1AZFSE..ACN1#..STD |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-37002 |
1AZFSE..ACN1# NO.1 |
1 | ||
| 90467-34004 |
1AZFSE..ACN1# NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-37002 |
1AZFSE..ACN1# NO.1 |
1 | ||
| 90467-34004 |
1AZFSE..ACN1# NO.2 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74581 |
1AZFSE..ACN1# |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90116-06127 | ||||
| 90126-06012 | ||||
| 90179-06032 | ||||
| 90480-23008 | ||||
| 91621-B0816 | ||||
| 91631-G0614 | ||||
| 91651-B0616 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1709 | ||||
| 2501 | ||||
| 8716 | ||||

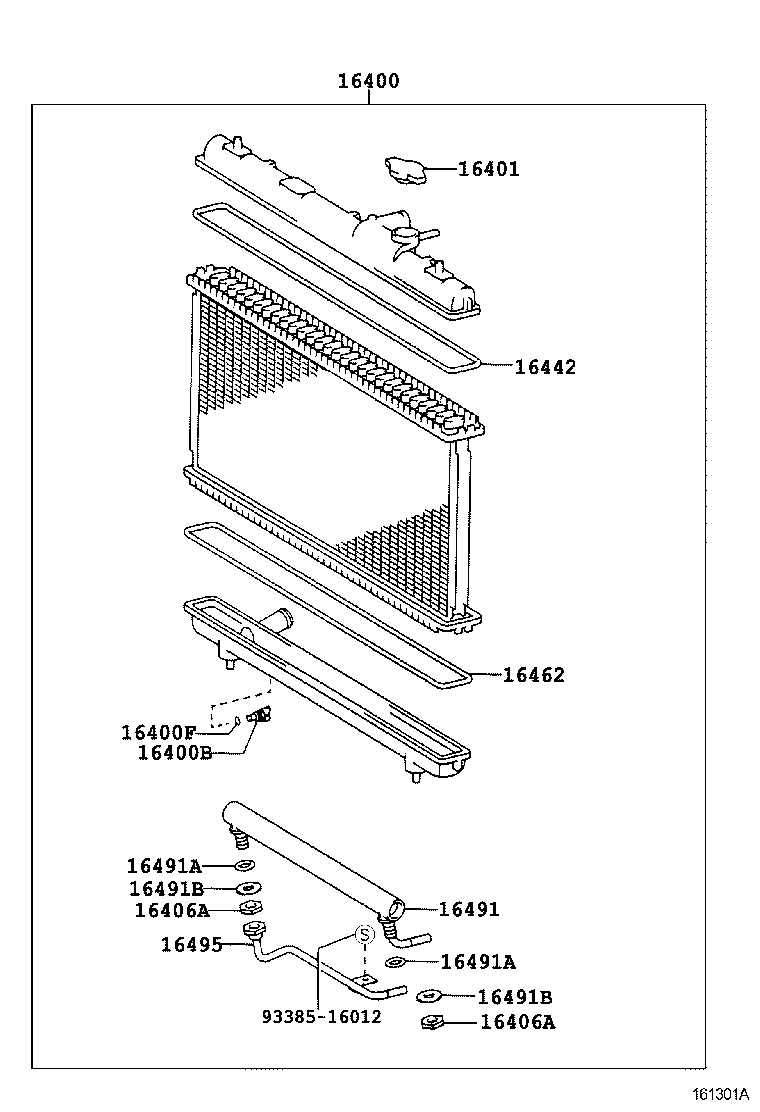

ILLUST NO. 2 OF 2(0104- )1AZFSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-7A610 |
1AZFSE..ACN10 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1AZFSE..ACN1# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1AZFSE..ACN1# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-62100 |
1AZFSE..ACN1# |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
1AZFSE..ACN1# |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
1AZFSE..ACN1# |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-74520 |
1AZFSE..ACN1# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-74520 |
1AZFSE..ACN1# |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-74790 |
1AZFSE..ACN1# |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
1AZFSE..ACN1# |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
1AZFSE..ACN1# |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
1AZFSE..ACN1# |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
1AZFSE..ACN1# |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-7A260 |
1AZFSE..ACN1# |
1 | ||
| Common parts | ||||
| 93385-16012 | ||||
