ACN10-AHSEH (2001)

Toyota Nadia

Production Apr 2001 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )ACN1#

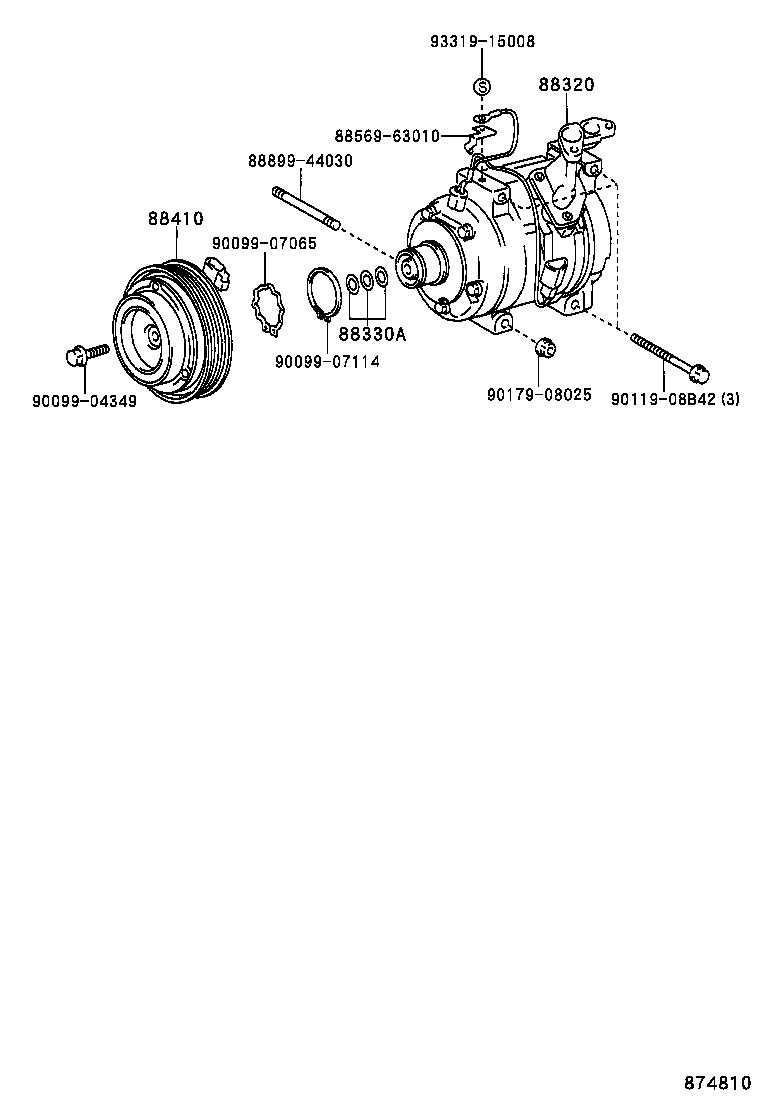

Click highlighted areas on diagram

diagram 88320 88330A 88410 8856963010 8889944030 9009904349 9009907065 9009907114 9011908B42 9017908025 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-44120

ACN1#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

ACN1#,SXN1#

 1
88410 - CLUTCH ASSY, MAGNET
88410-28200

ACN1#

 1
Common parts
88569-63010
88899-44030
90099-04349
90099-07065
90099-07114
90119-08B42
90179-08025
93319-15008
