ACN10-AHSEH (2001)

Toyota Nadia

Production Apr 2001 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )ACN1#

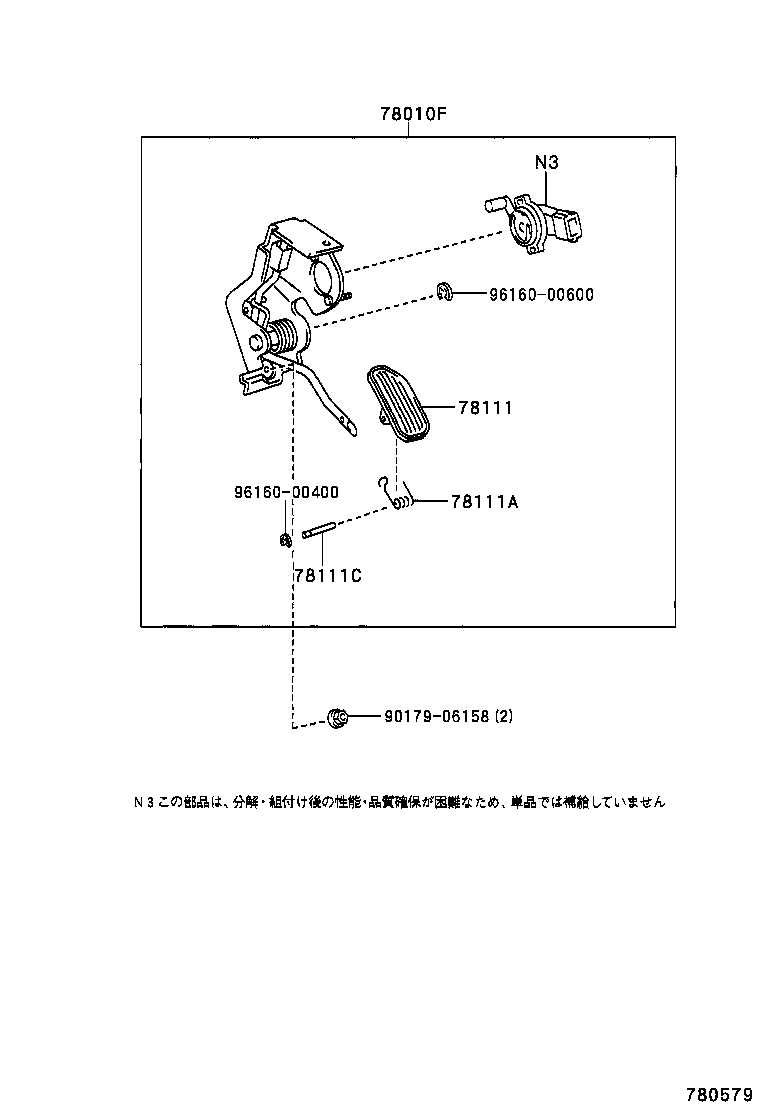

Click highlighted areas on diagram

diagram 78010F 78111 78111A 78111C 9017906158 9616000400 9616000600
Part # Description Qty Price
78010F - PEDAL ASSY, ACCELERATOR
78010-44060

ACN1#

 1
78111 - PEDAL, ACCELERATOR
78111-20050

ACN1#,SXN1#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

ACN1#,SXN1#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

ACN1#,SXN1#

 1
Common parts
90179-06158
96160-00400
96160-00600
