ACN10-AHSEH (2001)

Toyota Nadia

Production Apr 2001 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0104- )ACN1#

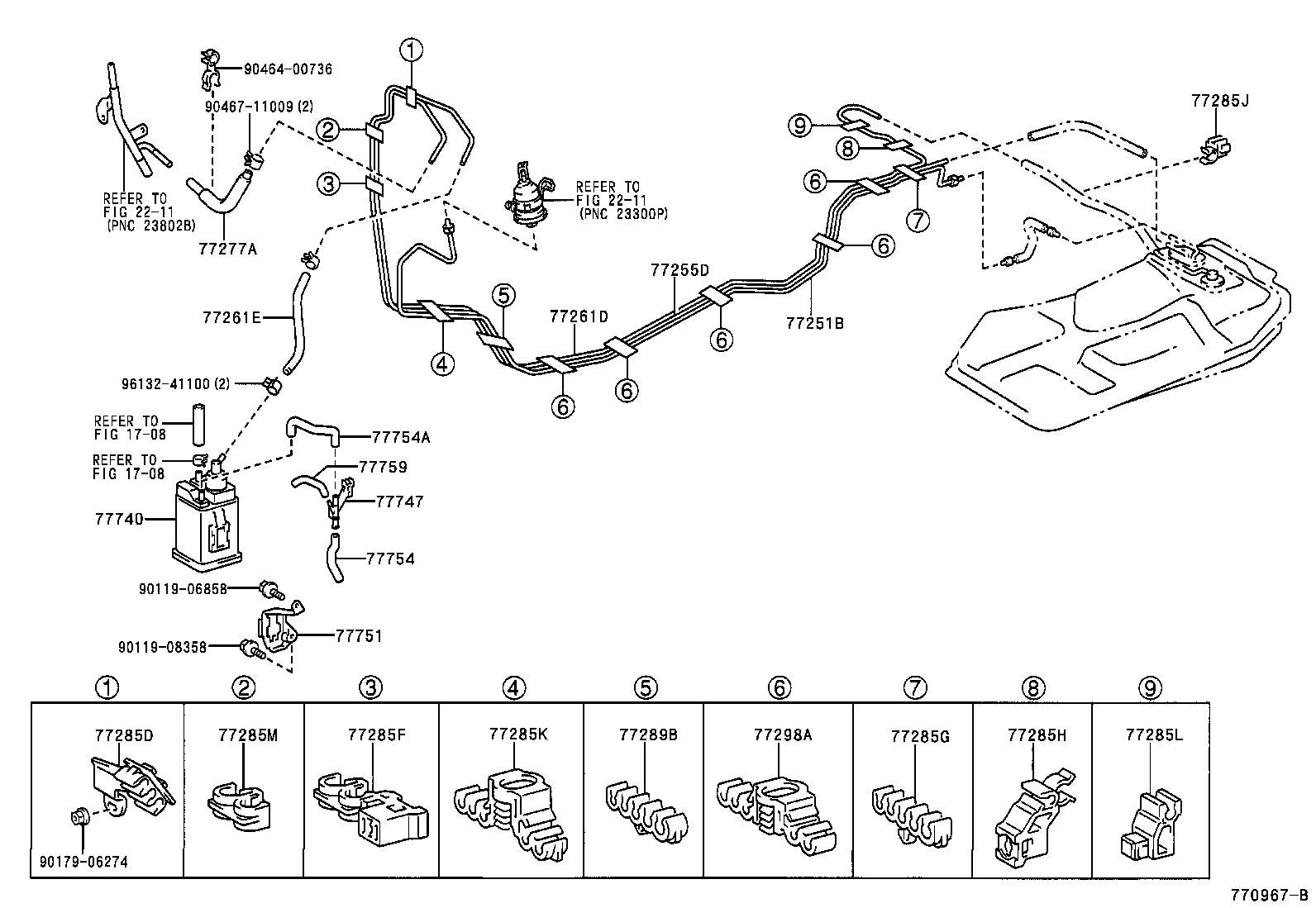

Click highlighted areas on diagram

diagram 1708 1708 2211 2211 77251B 77255D 77261D 77261E 77277A 77285D 77285F 77285G 77285H 77285J 77285K 77285L 77285M 77289B 77298A 77740 77747 77751 77754 77754A 77759 9011906858 9011908358 9017906274 9046400736 9046711009 9613241100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-44010

SXN10..EFI;ACN1#,SXN15

 1
77255D - TUBE, FUEL RETURN
77255-44010

ACN1#,SXN1#..STD

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-44010

ACN1#,SXN1#

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

ACN1#

*H,L=180

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-28060

ACN1#

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-44100

ACN1#,SXN1#

 1
77285F - CLAMP, FUEL TUBE, NO.1
77285-44110

ACN1#,SXN1#

 1
77285G - CLAMP, FUEL TUBE, NO.1
77285-44120

ACN1#,SXN1#

 1
77285H - CLAMP, FUEL TUBE, NO.1
77285-44130

ACN1#,SXN1#

 1
77285J - CLAMP, FUEL TUBE, NO.1
77285-44140

ACN1#,SXN1#

 1
77285K - CLAMP, FUEL TUBE, NO.1
77285-44150

ACN1#,SXN1#

 1
77285L - CLAMP, FUEL TUBE, NO.1
77285-44070

ACN1#,SXN1#

 1
77285M - CLAMP, FUEL TUBE, NO.1
77285-44080

ACN1#,SXN1#

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-44010

ACN1#,SXN1#

 1
77298A - CLAMP, FUEL TUBE, NO.4
77298-44020

ACN1#,SXN1#

 5
77740 - CANISTER ASSY, CHARCOAL
77740-44030

ACN1#

 1
77747 - PIPE, CHARCOAL CANISTER, NO.1
77747-44010

ACN1#

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-44080

ACN1#

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-44040

ACN1#

 1
77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2
77754-44050

ACN1#

 1
77759 - HOSE, CHARCOAL CANISTER
77754-44060

ACN1#

 1
Common parts
90119-06858
90119-08358
90179-06274
90464-00736
90467-11009
96132-41100
Linked diagrams
1708
2211
