ACN10-AHSEH (2001)
Toyota Nadia

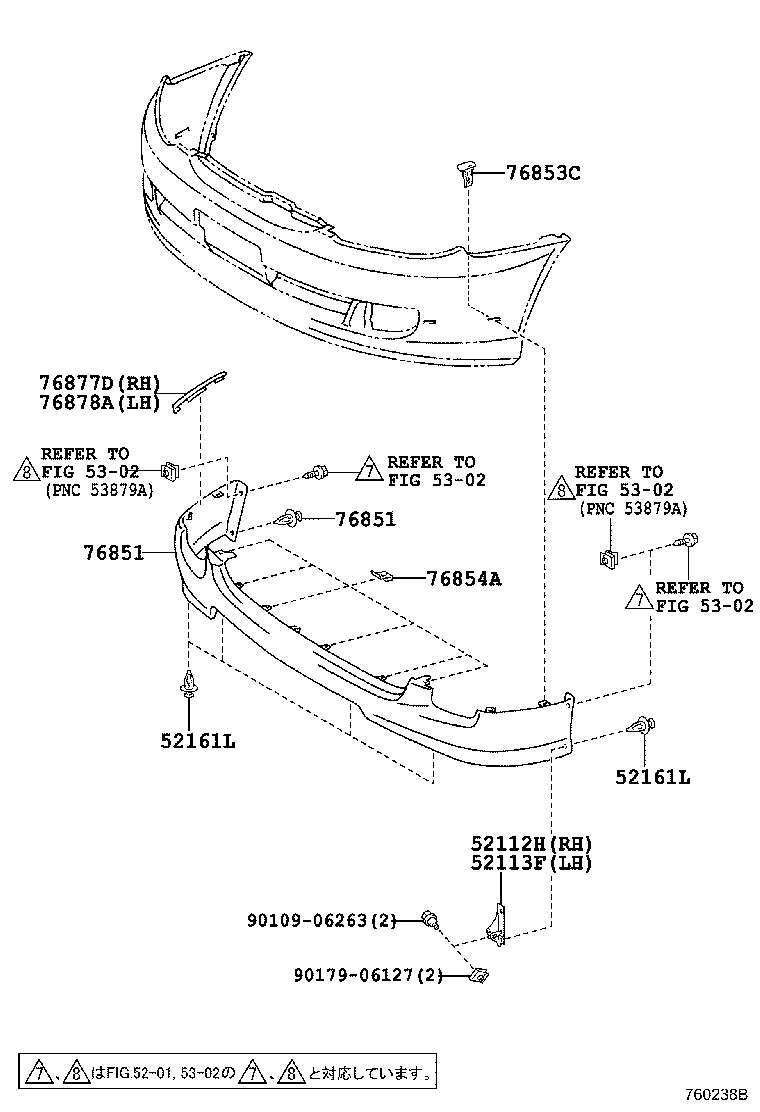

ILLUST NO. 2 OF 4(0104- )STD..S
ﾌﾛﾝﾄ ｽﾎﾟｲﾗ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112H - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-44030 |
ACN1#,SXN15..STD..S |
1 | ||
| 52113F - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-44030 |
ACN1#,SXN15..STD..S |
1 | ||
| 52161L - PIECE, FRONT SPOILER | ||||
| 52161-16010 |
ACN1#,SXN15..STD..S |
6 | ||
| 52161L - PIECE, FRONT SPOILER | ||||
| 52161-16010 |
ACN1#,SXN15..STD..S |
6 | ||
| 76851 - COVER, FRONT SPOILER | ||||
| 76851-44040C0 |
ACN1#,SXN15..STD..S BLACK,202 |
1 | ||
| 76851-44040A0 |
ACN1#,SXN15..STD..S WHITE PM.,042 |
1 | ||
| 76851-44040F0 |
ACN1#,SXN15..STD..S CHAMPAGNE ME.,583 |
1 | ||
| 76851-44040B0 |
ACN1#,SXN15..STD..S SILVER ME.,1C0 |
1 | ||
| 76851 - COVER, FRONT SPOILER | ||||
| 76851-44040C0 |
ACN1#,SXN15..STD..S BLACK,202 |
1 | ||
| 76851-44040A0 |
ACN1#,SXN15..STD..S WHITE PM.,042 |
1 | ||
| 76851-44040F0 |
ACN1#,SXN15..STD..S CHAMPAGNE ME.,583 |
1 | ||
| 76851-44040B0 |
ACN1#,SXN15..STD..S SILVER ME.,1C0 |
1 | ||
| 76853C - RETAINER, FRONT SPOILER, NO.1 | ||||
| 76853-10010 |
ACN1#,SXN15..STD..S |
4 | ||
| 76854A - RETAINER, FRONT SPOILER, NO.2 | ||||
| 76854-44010 |
ACN1#,SXN15..STD..S |
6 | ||
| 76877D - PROTECTOR, FRONT SPOILER SIDE, RH | ||||
| 76877-44030C0 |
ACN1#,SXN15..STD..S BLACK,202 |
1 | ||
| 76877-44030B0 |
ACN1#,SXN15..STD..S LT. GRAY,042 ,1C0 |
1 | ||
| 76877-44030B1 |
ACN1#,SXN15..STD..S MEDIUM GRAY,583 |
1 | ||
| 76878A - PROTECTOR, FRONT SPOILER SIDE, LH | ||||
| 76878-44040B1 |
ACN1#,SXN15..STD..S MEDIUM GRAY,583 |
1 | ||
| 76878-44040C0 |
ACN1#,SXN15..STD..S BLACK,202 |
1 | ||
| 76878-44040B0 |
ACN1#,SXN15..STD..S LT. GRAY,042 ,1C0 |
1 | ||
| Common parts | ||||
| 90109-06263 | ||||
| 90179-06127 | ||||
| Linked diagrams | ||||
| 5302 | ||||

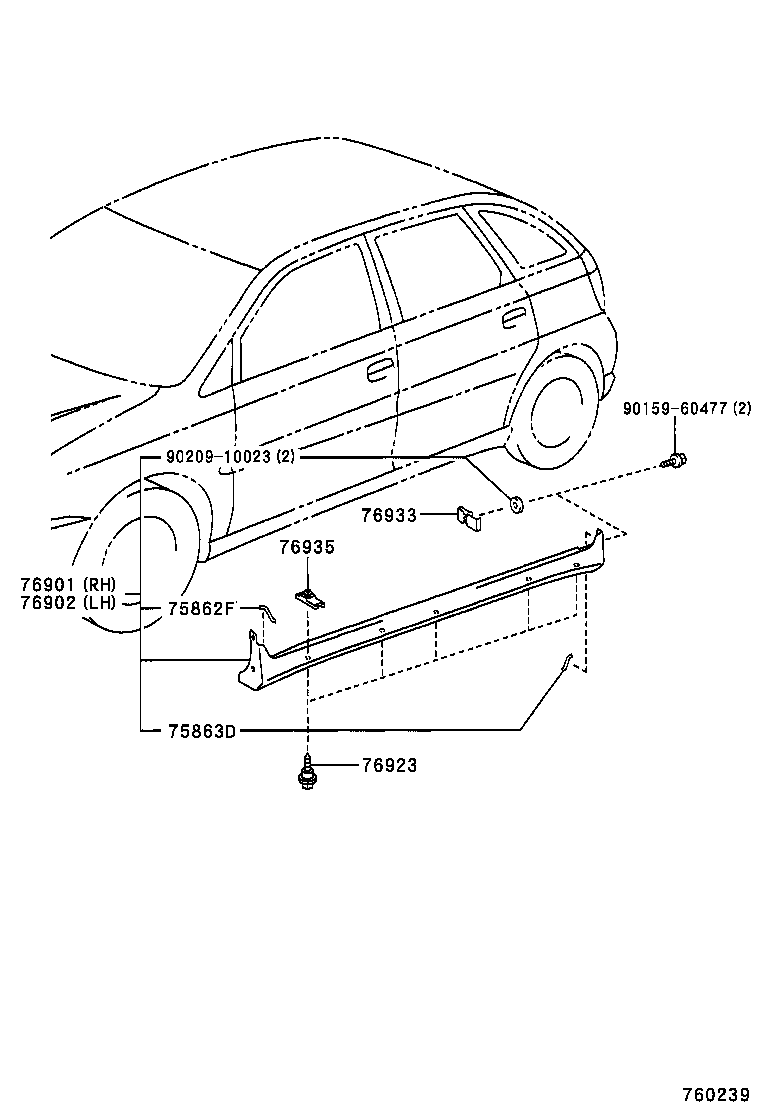

ILLUST NO. 3 OF 4(0104- )STD..S
ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75862F - PROTECTOR, ROCKER PANEL MOULDING, NO.2 | ||||
| 75862-44020B1 |
ACN1#,SXN15..STD..S MEDIUM GRAY,583 |
2 | ||
| 75862-44020B0 |
ACN1#,SXN15..STD..S LT. GRAY,042 ,1C0 |
2 | ||
| 75862-44020C0 |
ACN1#,SXN15..STD..S BLACK,202 |
2 | ||
| 75863D - PROTECTOR, ROCKER PANEL MOULDING, NO.3 | ||||
| 75863-44020B0 |
ACN1#,SXN15..STD..S LT. GRAY,042 ,1C0 |
2 | ||
| 75863-44020B1 |
ACN1#,SXN15..STD..S MEDIUM GRAY,583 |
2 | ||
| 75863-44020C0 |
ACN1#,SXN15..STD..S BLACK,202 |
2 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76901-44060B0 |
ACN1#,SXN15..STD..S SILVER ME.,1C0 |
1 | ||
| 76901-44060C0 |
ACN1#,SXN15..STD..S BLACK,202 |
1 | ||
| 76901-44060A0 |
ACN1#,SXN15..STD..S WHITE PM.,042 |
1 | ||
| 76901-44060F0 |
ACN1#,SXN15..STD..S CHAMPAGNE ME.,583 |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76902-44060C0 |
ACN1#,SXN15..STD..S BLACK,202 |
1 | ||
| 76902-44060B0 |
ACN1#,SXN15..STD..S SILVER ME.,1C0 |
1 | ||
| 76902-44060A0 |
ACN1#,SXN15..STD..S WHITE PM.,042 |
1 | ||
| 76902-44060F0 |
ACN1#,SXN15..STD..S CHAMPAGNE ME.,583 |
1 | ||
| 76923 - RETAINER, SIDE MUDGUARD | ||||
| 76923-44040 |
ACN1#,SXN15..STD..S |
10 | ||
| 76933 - RETAINER, SIDE MUDGUARD, NO.5 | ||||
| 76933-44030 |
ACN1#,SXN15..STD..S |
2 | ||
| 76935 - RETAINER, SIDE MUDGUARD, NO.7 | ||||
| 76935-21010 |
ACN1#,SXN15..STD..S |
10 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90209-10023 | ||||

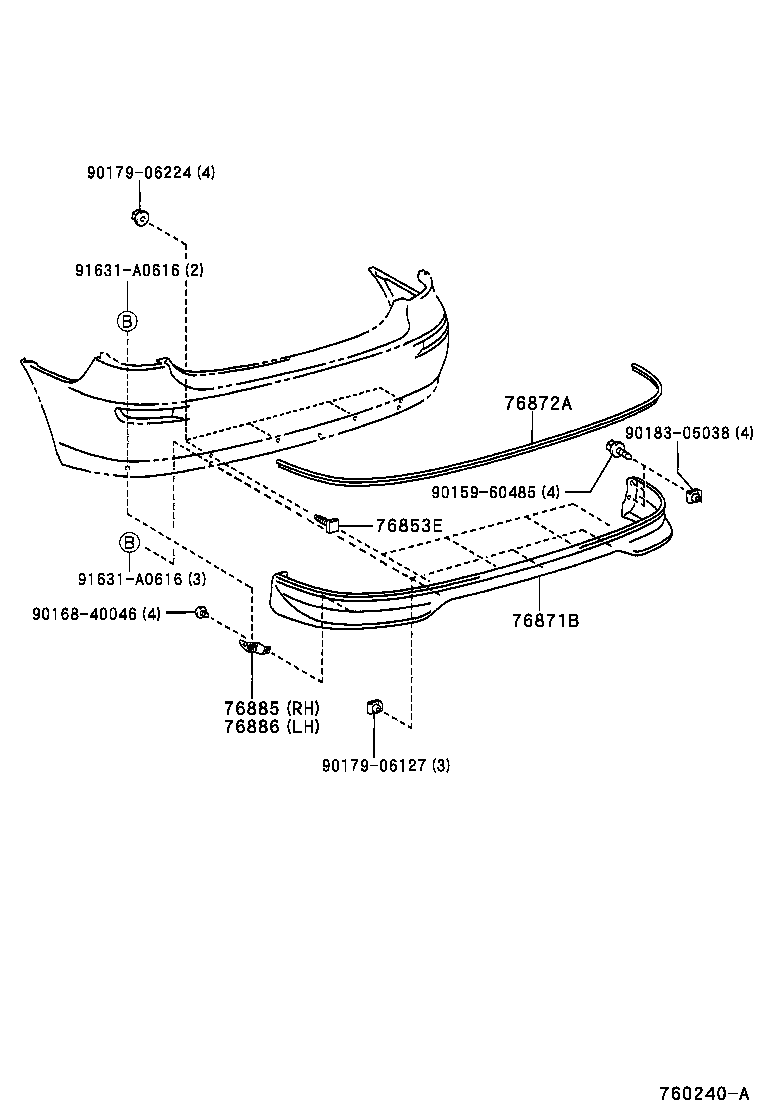

ILLUST NO. 4 OF 4(0104- )STD..S
ﾘﾔ ｽﾎﾟｲﾗ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76853E - RETAINER, REAR SPOILER, NO.1 | ||||
| 76853-44010 |
ACN1#,SXN15..STD..S |
4 | ||
| 76871B - COVER, REAR SPOILER | ||||
| 76871-44090B0 |
ACN1#,SXN15..STD..S SILVER ME.,1C0 |
1 | ||
| 76871-44090A0 |
ACN1#,SXN15..STD..S WHITE PM.,042 |
1 | ||
| 76871-44090C0 |
ACN1#,SXN15..STD..S BLACK,202 |
1 | ||
| 76871-44090F0 |
ACN1#,SXN15..STD..S CHAMPAGNE ME.,583 |
1 | ||
| 76872A - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-44020B0 |
ACN1#,SXN15..STD..S LT. GRAY,042 ,1C0 |
1 | ||
| 76872-44020C0 |
ACN1#,SXN15..STD..S BLACK,202 |
1 | ||
| 76872-44020B1 |
ACN1#,SXN15..STD..S MEDIUM GRAY,583 |
1 | ||
| 76885 - RETAINER, REAR SPOILER, NO.5 | ||||
| 76885-44010 |
ACN1#,SXN15..STD..S |
1 | ||
| 76886 - RETAINER, REAR SPOILER, NO.6 | ||||
| 76886-44010 |
ACN1#,SXN15..STD..S |
1 | ||
| Common parts | ||||
| 90159-60485 | ||||
| 90168-40046 | ||||
| 90179-06127 | ||||
| 90179-06224 | ||||
| 90183-05038 | ||||
| 91631-A0616 | ||||
