ACN10-AHSEH (2001)

Toyota Nadia

Production Apr 2001 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

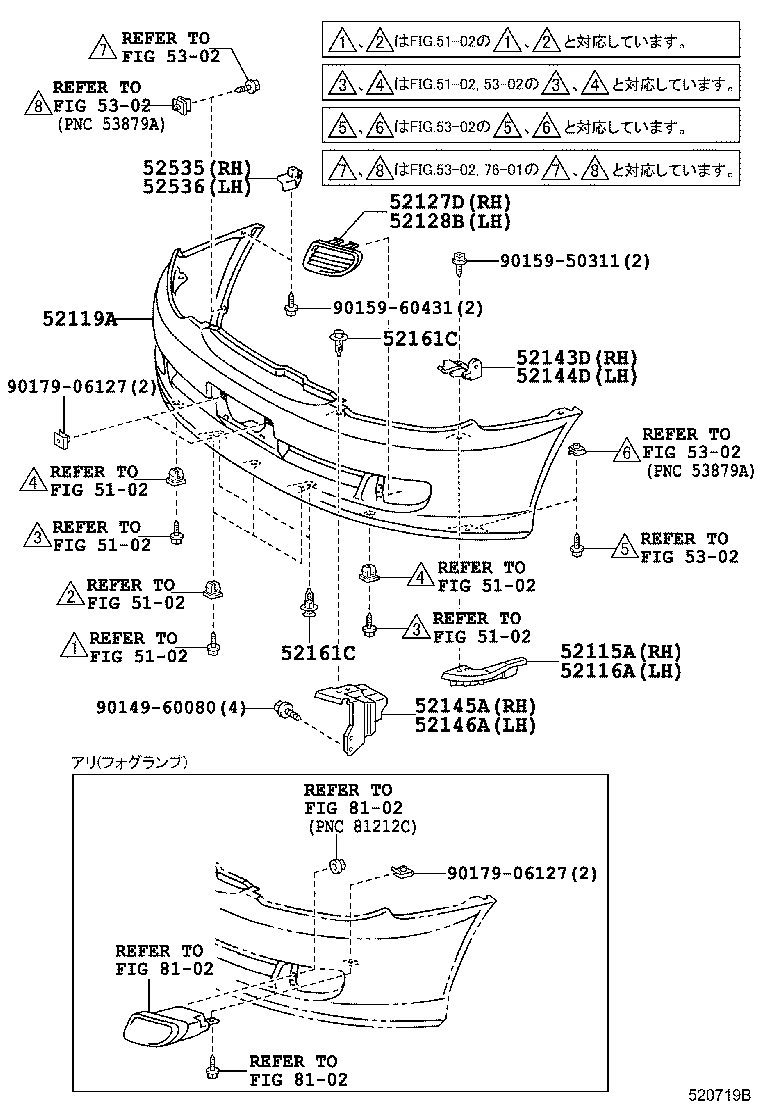

ILLUST NO. 1 OF 2(0104- )STD

Click highlighted areas on diagram

diagram 5102 5102 5102 5102 5102 5102 52115A 52116A 52119A 52127D 52128B 52143D 52144D 52145A 52146A 52161C 52161C 52535 52536 5302 5302 5302 5302 8102 8102 8102 9014960080 9015950311 9015960431 9017906127 9017906127
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-44030

ACN1#,SXN1#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-44030

ACN1#,SXN1#

 1
52119A - COVER, FRONT BUMPER
52119-44250F0

ACN1#,SXN15..STD..(L,X)

CHAMPAGNE ME.,583

 1
52119-44250A0

ACN1#,SXN15..STD..(L,X)

WHITE PM.,042

 1
52119-44250D0

ACN1#,SXN15..STD..(L,X)

BORDEAUX MC.,3P2

 1
52119-44260F0

ACN1#,SXN15..STD..(L,X)

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),CHAMPAGNE ME.,583

 1
52119-44250C0

ACN1#,SXN15..STD..(L,X)

BLACK,202

 1
52119-44270B0

ACN1#,SXN15..STD..S

SILVER ME.,1C0

 1
52119-44250J0

ACN1#,SXN15..STD..(L,X)

BLUE M.M.,8P5

 1
52119-44260C0

ACN1#,SXN15..STD..(L,X)

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),BLACK,202

 1
52119-44270C0

ACN1#,SXN15..STD..S

BLACK,202

 1
52119-44260A0

ACN1#,SXN15..STD..(L,X)

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),WHITE PM.,042

 1
52119-44260D0

ACN1#,SXN15..STD..(L,X)

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),BORDEAUX MC.,3P2

 1
52119-44260B0

ACN1#,SXN15..STD..(L,X)

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),SILVER ME.,1C0

 1
52119-44270A0

ACN1#,SXN15..STD..S

WHITE PM.,042

 1
52119-44250B0

ACN1#,SXN15..STD..(L,X)

SILVER ME.,1C0

 1
52119-44280A0

ACN1#,SXN15..STD..S

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),WHITE PM.,042

 1
52119-44280F0

ACN1#,SXN15..STD..S

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),CHAMPAGNE ME.,583

 1
52119-44270F0

ACN1#,SXN15..STD..S

CHAMPAGNE ME.,583

 1
52119-44280B0

ACN1#,SXN15..STD..S

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),SILVER ME.,1C0

 1
52119-44280C0

ACN1#,SXN15..STD..S

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),BLACK,202

 1
52119-44260J0

ACN1#,SXN15..STD..(L,X)

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),BLUE M.M.,8P5

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-20100

ACN1#,SXN15..STD..(L,X)

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-20060

ACN1#,SXN15..STD..(L,X)

 1
52143D - BRACKET, FRONT BUMPER SIDE, RH
52143-44030

ACN1#,SXN15

 1
52144D - BRACKET, FRONT BUMPER SIDE, LH
52144-44030

ACN1#,SXN15

 1
52145A - STAY, FRONT BUMPER, NO.2 RH
52145-44030

ACN1#,SXN1#

 1
52146A - STAY, FRONT BUMPER, NO.2 LH
52146-44030

ACN1#,SXN1#

 1
52161C - PIECE, FRONT BUMPER
52161-44010C0

ACN1#,SXN15..STD..(L,X)

BLACK,042 ,1C0 ,202 ,3P2 ,583 ,8P5

 5
52161-44010C0

ACN1#,SXN15..STD..S

BLACK,042 ,1C0 ,202 ,583

 5
52161C - PIECE, FRONT BUMPER
52161-44010C0

ACN1#,SXN15..STD..(L,X)

BLACK,042 ,1C0 ,202 ,3P2 ,583 ,8P5

 5
52161-44010C0

ACN1#,SXN15..STD..S

BLACK,042 ,1C0 ,202 ,583

 5
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-44030

ACN1#,SXN1#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-44030

ACN1#,SXN1#

 1
Common parts
90149-60080
90159-50311
90159-60431
90179-06127
Linked diagrams
5102
5302
8102

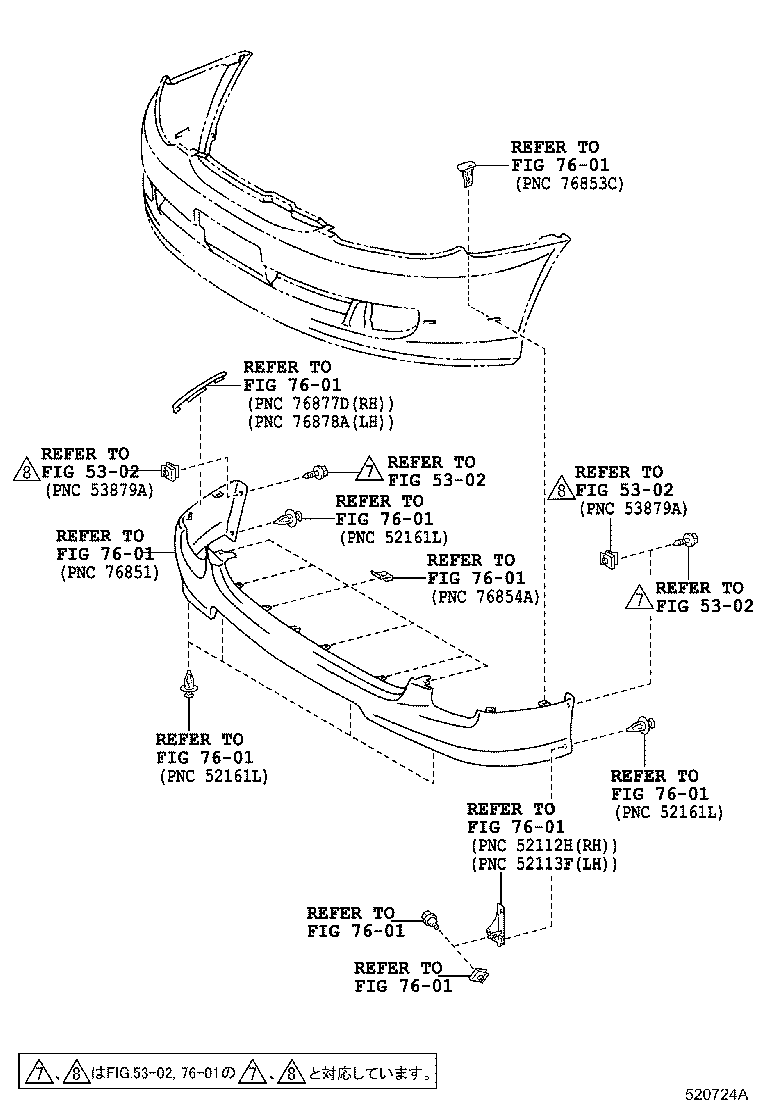

ILLUST NO. 2 OF 2(0104- )STD..S

Click highlighted areas on diagram

diagram 5302 5302 5302 5302 7601 7601 7601 7601 7601 7601 7601 7601 7601 7601
Part # Description Qty Price
Linked diagrams
5302
7601
