ACN10-AHSEH (2001)
Toyota Nadia
Production
Apr 2001
-
Jul 2003
Engine
1AZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

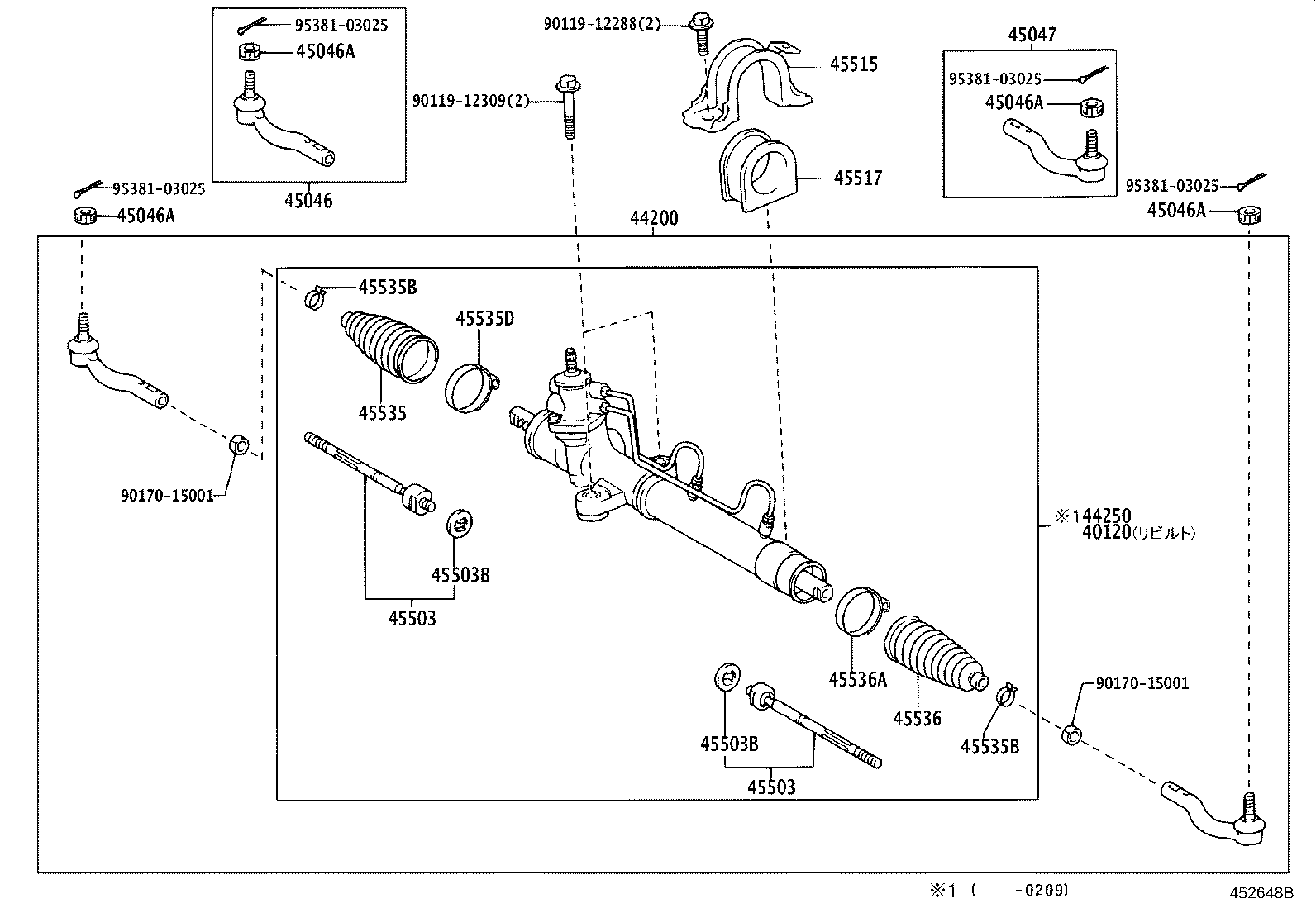

ILLUST NO. 1 OF 2(0104- )ACN10
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-44100 |
ACN10,SXN10..STD TOYODA KOKI |
1 | ||
| 40120-44060 |
ACN10,SXN10..STD..(L,NOG,X) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,TOYODA KOKI |
1 | ||
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-44060 |
ACN10..STD..(L,X) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ |
1 | ||
| 44200-44100 |
ACN10..STD |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-44100 |
ACN10,SXN10..STD |
1 | ||
| 44250-44060 |
ACN10,SXN10..STD..(L,NOG,X) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29335 |
ACN10,SXN10 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACN1#,SXN1# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACN1#,SXN1# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACN1#,SXN1# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACN1#,SXN1# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-29105 |
ACN10,SXN10 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29615 |
ACN10,SXN10..STD |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29615 |
ACN10,SXN10..STD |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
ACN1#,SXN1# 外径=37 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
ACN1#,SXN1# 外径=37 |
2 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-20160 |
ACN10,SXN10 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-44030 |
ACN10,SXN10 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-20190 |
ACN10,SXN10 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19018 |
ACN10,SXN10 |
2 | ||
| 90467-19021 |
ACN10 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19018 |
ACN10,SXN10 |
2 | ||
| 90467-19021 |
ACN10 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-49004 |
ACN1#,SXN1# |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-20190 |
ACN10,SXN10 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-49004 |
ACN1#,SXN1# |
1 | ||
| Common parts | ||||
| 90119-12288 | ||||
| 90119-12309 | ||||
| 90170-15001 | ||||
| 95381-03025 | ||||
ILLUST NO. 2 OF 2(0104- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-20161 |
ACN1#,SXN1# |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-20120 |
ACN1#,SXN1# |
1 | ||
