ACN10-AHSEH (2001)

Toyota Nadia

Production Apr 2001 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

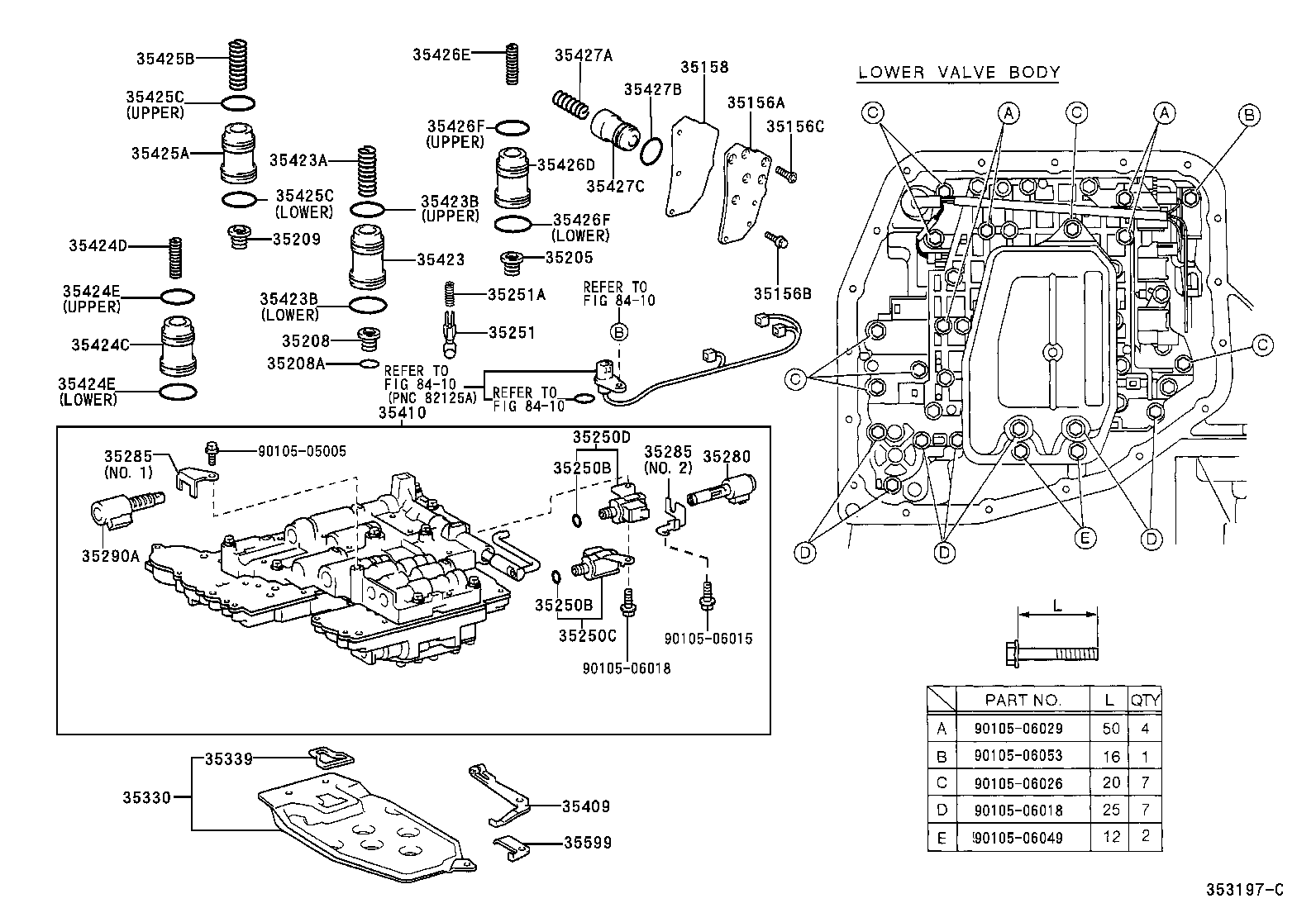

ILLUST NO. 1 OF 2(0104- )ACN1#

Click highlighted areas on diagram

A247E,A248E,A248F

diagram 35156A 35156B 35156C 35158 35205 35208 35208A 35209 35250B 35250B 35250C 35250D 35251 35251A 35280 35285 35285 35290A 35330 35339 35409 35410 35423 35423A 35423B 35423B 35424C 35424D 35424E 35424E 35425A 35425B 35425C 35425C 35426D 35426E 35426F 35426F 35427A 35427B 35427C 35599 8410 8410 8410 9010505005 9010506015 9010506018 9010506018 9010506026 9010506029 9010506049 9010506053
Part # Description Qty Price
35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR
35205-20040

ACN1#;SXN10..EFI

 1
35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
90521-22004

ACN1#;SXN10..EFI

 1
35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR
35209-20030

ACN1#;SXN10..EFI

 1
35250C - SOLENOID ASSY, TRANSMISSION NO.1
35250-12010

ACN10

AISIN

 1
35250-12040

ACN10

DENSO

 1
35250D - SOLENOID ASSY, TRANSMISSION NO.2
35250-12020

ACN10

AISIN

 1
35250-12050

ACN10

DENSO

 1
35251 - BODY, CHECK BALL
35251-30020

ACN1#,SXN10

 1
35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY)
90501-03005

ACN1#,SXN10

 1
35339 - GASKET, OIL STRAINER
35339-12020

ACN1#;SXN10..EFI

 1
35409 - SPRING SUB-ASSY, MANUAL DETENT
35409-12030

ACN1#;SXN10..EFI

 1
35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
90501-22034

ACN1#;SXN10..EFI

 1
35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
90501-22034

ACN1#;SXN10..STD..EFI

 1
35427A - SPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON)
90501-26078

ACN10;SXN10..EFI

 1
35427C - PISTON, B-4 ACCUMULATOR
35427-13010

ACN1#;SXN10..EFI

 1
35599 - COVER, MANUAL DETENT SPRING
35599-12020

ACN1#;SXN10..EFI

 1
Common parts
90105-05005
90105-06015
90105-06018
90105-06026
90105-06029
90105-06049
90105-06053
Linked diagrams
8410

ILLUST NO. 2 OF 2(0104- )ACN1#

Click highlighted areas on diagram

A247E,A248E,A248F

diagram 35195A 35195A 35196 35197 35847 35882A 35899 91611B0614 91611B0614 91611B0614 91611G0612
Part # Description Qty Price
35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1
35195-12030

ACN1#;SXN10..EFI

 2
35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1
35195-12030

ACN1#;SXN10..EFI

 2
35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2
35196-12030

ACN1#;SXN10..EFI

 1
35197 - CLAMP, TRANSAXLE APPLY TUBE, NO.3
35197-12030

ACN1#;SXN10..EFI

 1
35847 - TUBE, TRANSMISSION LUBE APPLY
35847-12030

ACN1#;SXN10..EFI

 1
35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY
35882-12020

ACN10;SXN10..EFI

 1
35899 - TUBE, GOVERNOR PRESSURE
35899-12040

ACN1#;SXN10..EFI

 1
Common parts
91611-B0614
91611-G0612
