ACN10-AHSEH (2001)

Toyota Nadia

Production Apr 2001 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )1AZFSE

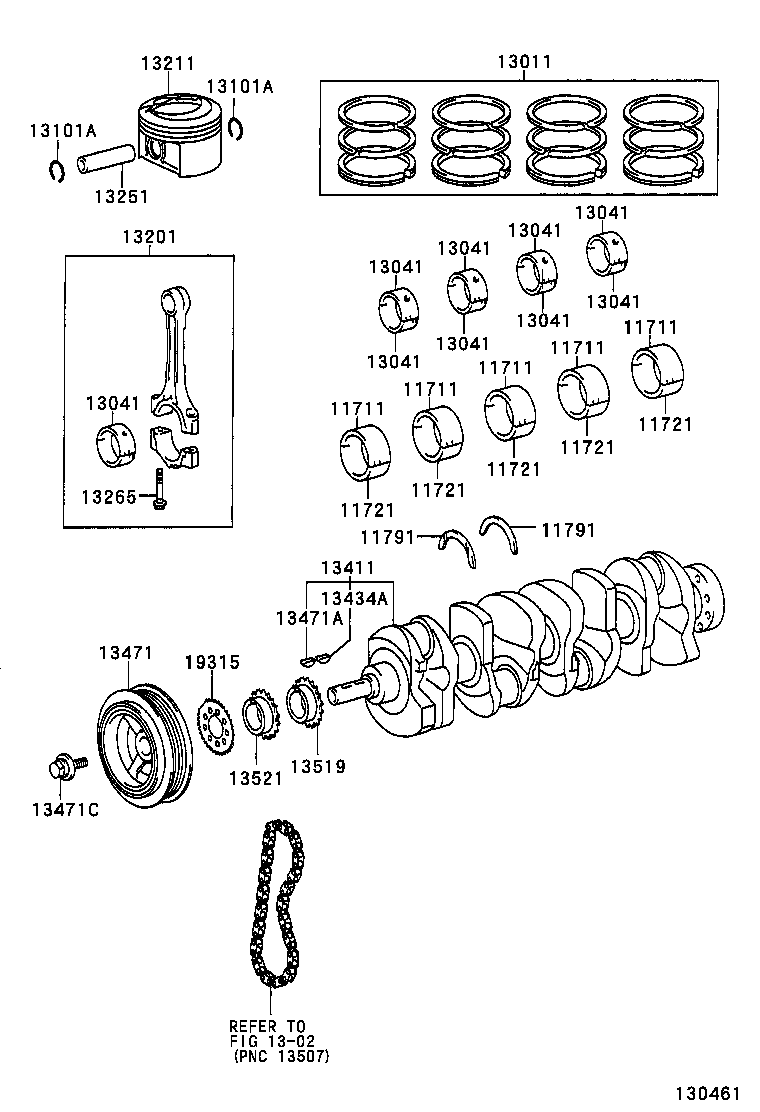

Click highlighted areas on diagram

diagram 11711 11711 11711 11711 11711 11721 11721 11721 11721 11721 11791 11791 13011 1302 13041 13041 13041 13041 13041 13041 13041 13041 13041 13101A 13101A 13201 13211 13251 13265 13411 13434A 13471 13471A 13471C 13519 13521 19315
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11711-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 5
11711-2801004

1AZFSE..ACN1#

MARK 4,ﾏｰｸ 4

 5
11711-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 5
11711-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 5
11711 - BEARING, CRANKSHAFT
11711-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 5
11711-2801004

1AZFSE..ACN1#

MARK 4,ﾏｰｸ 4

 5
11711-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 5
11711-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 5
11711 - BEARING, CRANKSHAFT
11711-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 5
11711-2801004

1AZFSE..ACN1#

MARK 4,ﾏｰｸ 4

 5
11711-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 5
11711-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 5
11711 - BEARING, CRANKSHAFT
11711-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 5
11711-2801004

1AZFSE..ACN1#

MARK 4,ﾏｰｸ 4

 5
11711-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 5
11711-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 5
11711 - BEARING, CRANKSHAFT
11711-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 5
11711-2801004

1AZFSE..ACN1#

MARK 4,ﾏｰｸ 4

 5
11711-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 5
11711-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 5
11721 - BEARING, CRANKSHAFT, NO.2
11721-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 5
11721-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 5
11721-2801004

1AZFSE..ACN1#

MARK 4,ﾏｰｸ 4

 5
11721-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 5
11721 - BEARING, CRANKSHAFT, NO.2
11721-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 5
11721-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 5
11721-2801004

1AZFSE..ACN1#

MARK 4,ﾏｰｸ 4

 5
11721-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 5
11721 - BEARING, CRANKSHAFT, NO.2
11721-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 5
11721-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 5
11721-2801004

1AZFSE..ACN1#

MARK 4,ﾏｰｸ 4

 5
11721-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 5
11721 - BEARING, CRANKSHAFT, NO.2
11721-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 5
11721-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 5
11721-2801004

1AZFSE..ACN1#

MARK 4,ﾏｰｸ 4

 5
11721-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 5
11721 - BEARING, CRANKSHAFT, NO.2
11721-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 5
11721-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 5
11721-2801004

1AZFSE..ACN1#

MARK 4,ﾏｰｸ 4

 5
11721-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 5
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-28020

1AZFSE..ACN1#

STD

 2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-28020

1AZFSE..ACN1#

STD

 2
13011 - RING SET, PISTON
13011-28110

1AZFSE..ACN1#

STD

 1
13041 - BEARING, CONNECTING ROD
13281-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 8
13281-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 8
13281-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 8
13041 - BEARING, CONNECTING ROD
13281-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 8
13281-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 8
13281-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 8
13041 - BEARING, CONNECTING ROD
13281-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 8
13281-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 8
13281-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 8
13041 - BEARING, CONNECTING ROD
13281-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 8
13281-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 8
13281-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 8
13041 - BEARING, CONNECTING ROD
13281-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 8
13281-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 8
13281-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 8
13041 - BEARING, CONNECTING ROD
13281-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 8
13281-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 8
13281-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 8
13041 - BEARING, CONNECTING ROD
13281-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 8
13281-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 8
13281-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 8
13041 - BEARING, CONNECTING ROD
13281-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 8
13281-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 8
13281-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 8
13041 - BEARING, CONNECTING ROD
13281-2801001

1AZFSE..ACN1#

MARK 1,ﾏｰｸ 1

 8
13281-2801002

1AZFSE..ACN1#

MARK 2,ﾏｰｸ 2

 8
13281-2801003

1AZFSE..ACN1#

MARK 3,ﾏｰｸ 3

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-22025

1AZFSE..ACN1#

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-22025

1AZFSE..ACN1#

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-29125A0

1AZFSE..ACN1#

MARK A,ﾏｰｸ A

 4
13201-29125B0

1AZFSE..ACN1#

MARK B,ﾏｰｸ B

 4
13201-29125C0

1AZFSE..ACN1#

MARK C,ﾏｰｸ C

 4
13211 - PISTON
13211-28040B0

1AZFSE..ACN1#

MARK B,ﾏｰｸ B

 4
13211-28040A0

1AZFSE..ACN1#

MARK A,ﾏｰｸ A

 4
13211-28040C0

1AZFSE..ACN1#

MARK C,ﾏｰｸ C

 4
13251 - PIN, PISTON
13251-28010C0

1AZFSE..ACN1#

MARK C,ﾏｰｸ C

 4
13251-28010A0

1AZFSE..ACN1#

MARK A,ﾏｰｸ A

 4
13251-28010B0

1AZFSE..ACN1#

MARK B,ﾏｰｸ B

 4
13265 - BOLT, CONNECTING ROD
13265-28010

1AZFSE..ACN1#

 8
13411 - CRANKSHAFT
13411-28902

1AZFSE..ACN10

 1
13411-28040

1AZFSE..ACN1#

 1
13434A - KEY(FOR OIL PUMP DRIVE SPLINE)
95161-30416

1AZFSE..ACN1#

 1
13471 - PULLEY, CRANKSHAFT
13470-28020

1AZFSE..ACN1#

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-30416

1AZFSE..ACN1#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-14106

1AZFSE..ACN1#

 1
13519 - GEAR, OIL PUMP DRIVE
13519-28010

1AZFSE..ACN1#

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-28010

1AZFSE..ACN1#

 1
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-28010

1AZFSE..ACN1#

 1
Linked diagrams
1302
