ACN10-AHSEH (2001)
Toyota Nadia
Production
Apr 2001
-
Jul 2003
Engine
1AZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0104- )1AZFSE..ACN10

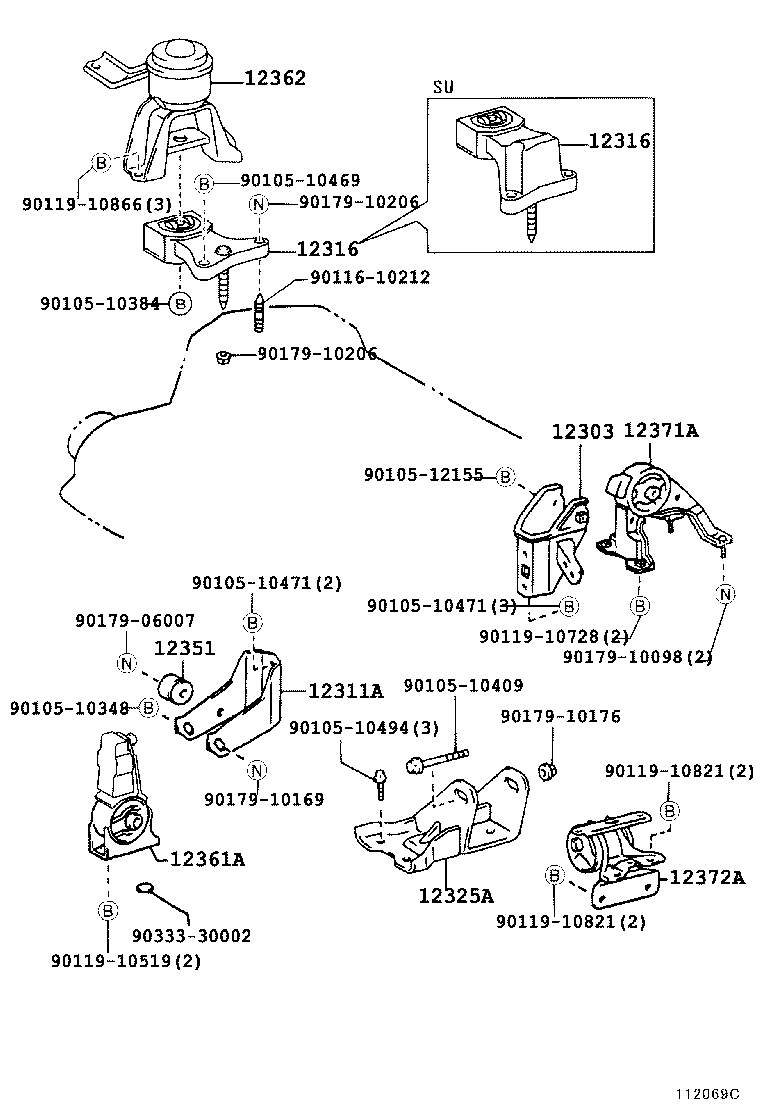

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12321-74500 |
1AZFSE..ACN10 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-74170 |
1AZFSE..ACN10 |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-28090 |
1AZFSE..ACN10..STD |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-28090 |
1AZFSE..ACN10..STD |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74440 |
1AZFSE..ACN10..STD |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-64020 |
1AZFSE..ACN10 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-28150 |
1AZFSE..ACN1# |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-28070 |
1AZFSE..ACN10..STD |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74500 |
1AZFSE..ACN10 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-16351 |
1AZFSE..ACN10 |
1 | ||
| Common parts | ||||
| 90105-10348 | ||||
| 90105-10384 | ||||
| 90105-10409 | ||||
| 90105-10469 | ||||
| 90105-10471 | ||||
| 90105-10494 | ||||
| 90105-12155 | ||||
| 90116-10212 | ||||
| 90119-10519 | ||||
| 90119-10728 | ||||
| 90119-10821 | ||||
| 90119-10866 | ||||
| 90179-06007 | ||||
| 90179-10098 | ||||
| 90179-10169 | ||||
| 90179-10176 | ||||
| 90179-10206 | ||||
| 90333-30002 | ||||
