SW20-AJPQF (1989)
Toyota Mr2
Production
Dec 1989
-
Aug 1999
Engine
3SGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(8912- )
Click highlighted areas on diagram

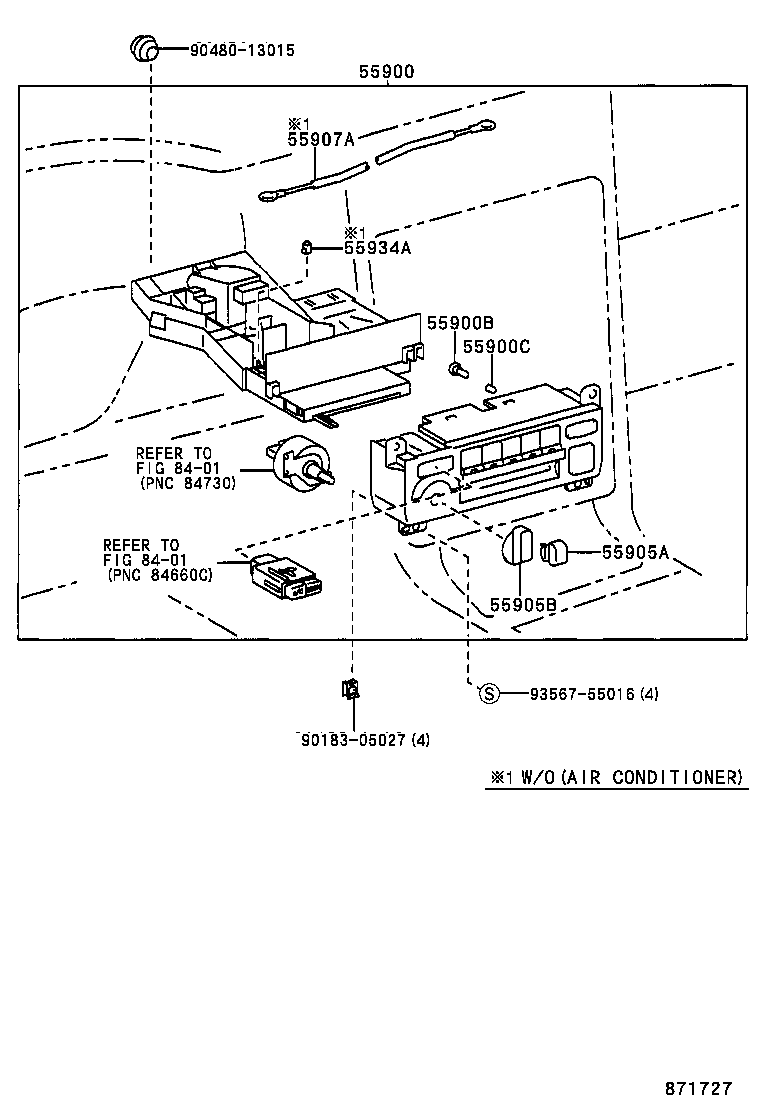

HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-17090 |
SW20 |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-10090 |
SW20 12V 1.8W |
2 | ||
| 55900C - CAP, AIR CONDITIONER CONTROL BULB | ||||
| 90339-04014 |
SW20 12V 1.8W |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-17040 |
SW20 |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-17050 |
SW20 |
1 | ||
| Common parts | ||||
| 90183-05027 | ||||
| 90480-13015 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(8912- )
Click highlighted areas on diagram

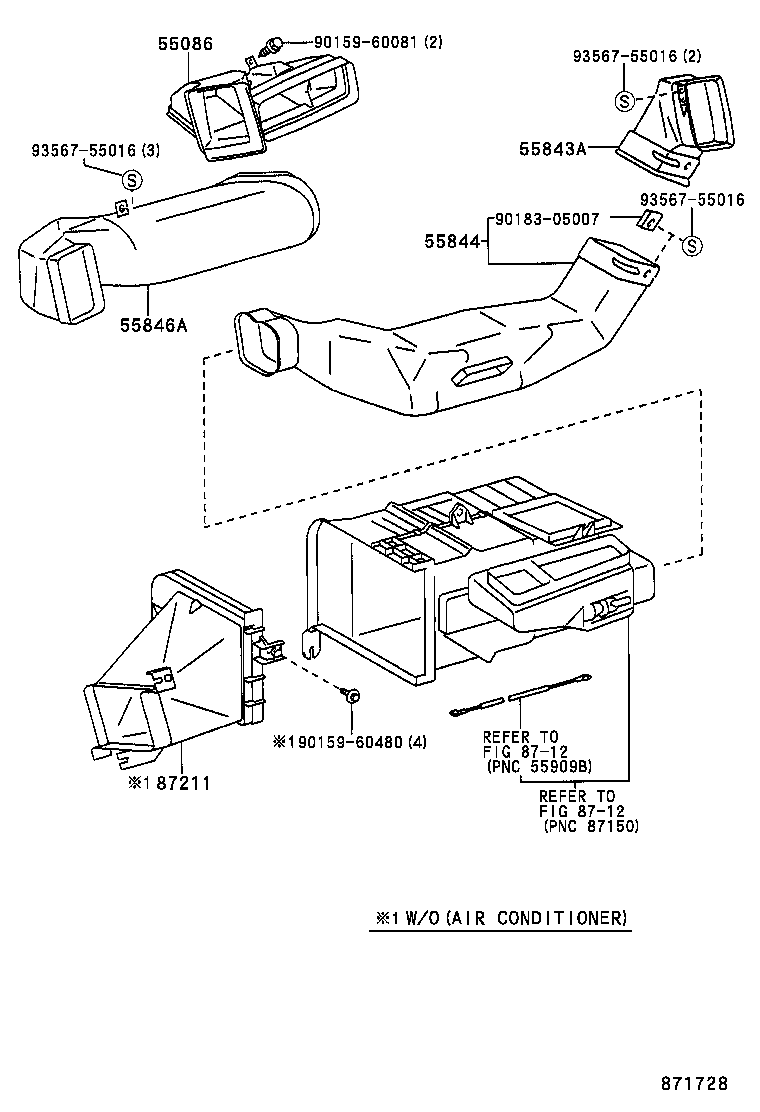

AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-17010 |
SW20 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-17030 |
SW20 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-17050 |
SW20 |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-17040 |
SW20 |
1 | ||
| 55846-17010 |
SW20 |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90159-60480 | ||||
| 90183-05007 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8712 | ||||
ILLUST NO. 3 OF 3(8912- )
Click highlighted areas on diagram

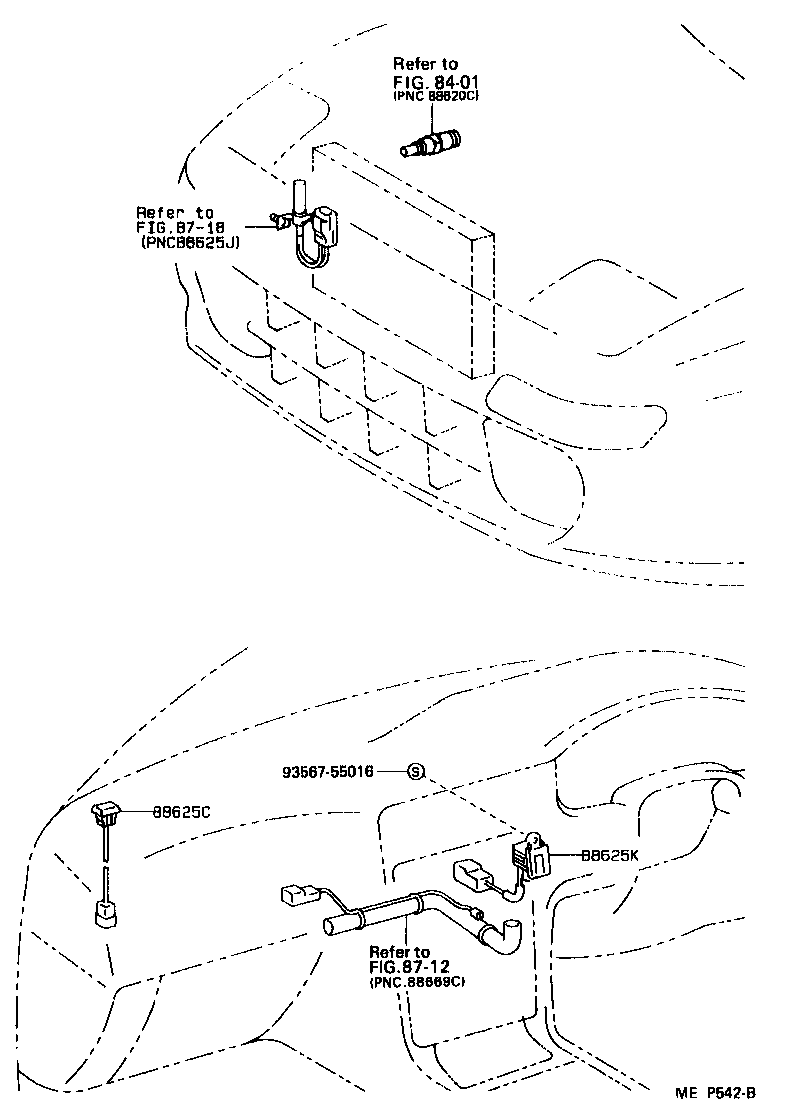

AUTO SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-17110 |
SW20 |
1 | ||
| 88625K - THERMISTOR, COOLER | ||||
| 88625-12220 |
SW20 |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8712 | ||||
| 8718 | ||||
