SW20-AJPQF (1989)
Toyota Mr2

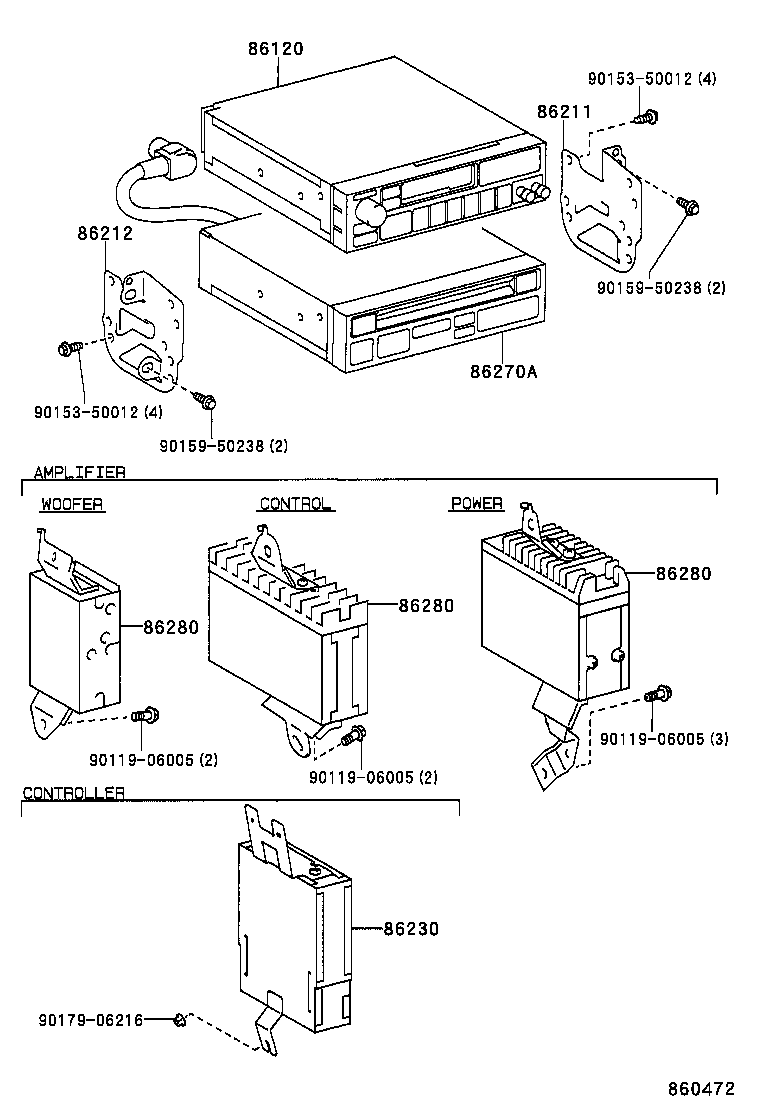

ILLUST NO. 1 OF 3(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

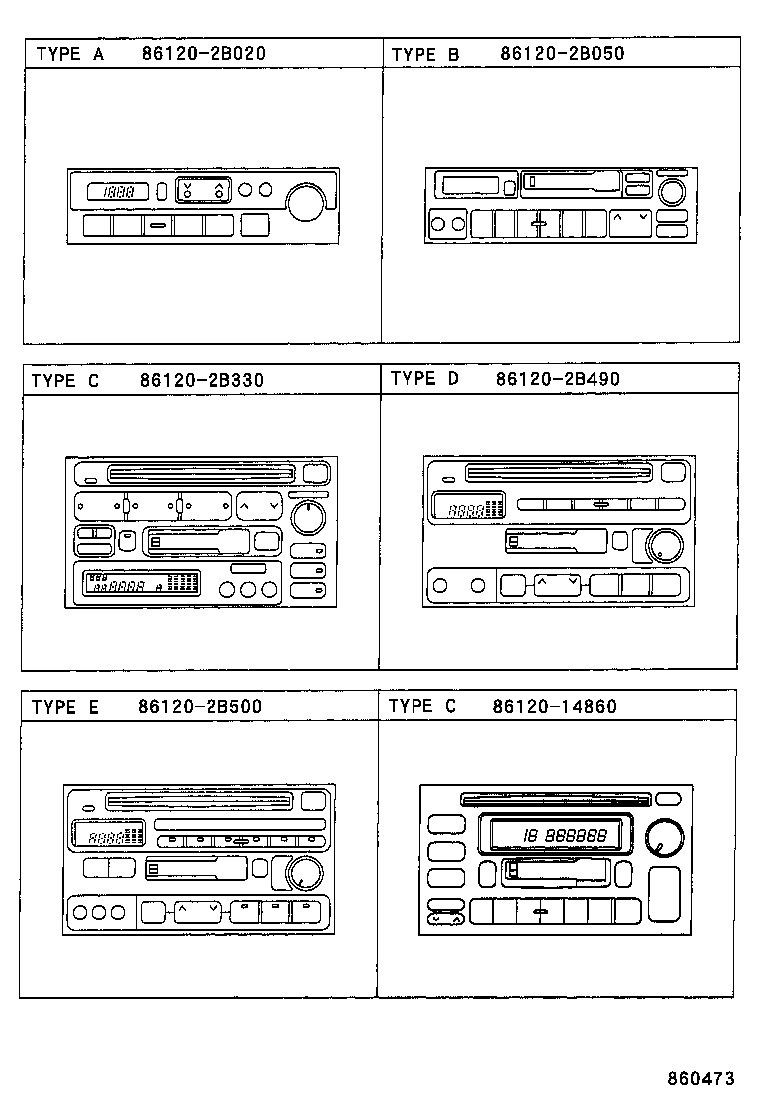

| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-2B330 |
SW20 MATSUSHITA,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B050 |
SW20 MATSUSHITA,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B500 |
SW20 MATSUSHITA,ID=55810,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B020 |
SW20..G MATSUSHITA,ID=5416,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B490 |
SW20 MATSUSHITA,ID=55844,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-14860 |
SW20 MATSUSHITA,ID=55818,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-17040 |
SW20 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-17040 |
SW20 |
1 | ||
| 86230 - CONTROLLER ASSY, STEREO COMPONENT | ||||
| 86230-17010 |
SW20 |
1 | ||
| 86270A - DISC PLAYER ASSY | ||||
| 86270-20050 |
SW20 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-17041 |
SW20 WOOFER,LH |
1 | ||
| 86280-17090 |
SW20 ｱﾘ(DSP),POWER |
1 | ||
| 86280-17050 |
SW20 CONTROL |
1 | ||
| 86280-17090 |
SW20 POWER |
1 | ||
| 86280-17080 |
SW20..G ﾅｼ(DSP),POWER |
1 | ||
| 86280-17070 |
SW20 WOOFER,RH |
1 | ||
| 86280-17040 |
SW20 WOOFER |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-17041 |
SW20 WOOFER,LH |
1 | ||
| 86280-17090 |
SW20 ｱﾘ(DSP),POWER |
1 | ||
| 86280-17050 |
SW20 CONTROL |
1 | ||
| 86280-17090 |
SW20 POWER |
1 | ||
| 86280-17080 |
SW20..G ﾅｼ(DSP),POWER |
1 | ||
| 86280-17070 |
SW20 WOOFER,RH |
1 | ||
| 86280-17040 |
SW20 WOOFER |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-17041 |
SW20 WOOFER,LH |
1 | ||
| 86280-17090 |
SW20 ｱﾘ(DSP),POWER |
1 | ||
| 86280-17050 |
SW20 CONTROL |
1 | ||
| 86280-17090 |
SW20 POWER |
1 | ||
| 86280-17080 |
SW20..G ﾅｼ(DSP),POWER |
1 | ||
| 86280-17070 |
SW20 WOOFER,RH |
1 | ||
| 86280-17040 |
SW20 WOOFER |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90153-50012 | ||||
| 90159-50238 | ||||
| 90179-06216 | ||||
ILLUST NO. 2 OF 3(8912- )
| Part # | Description | Qty | Price |
|---|

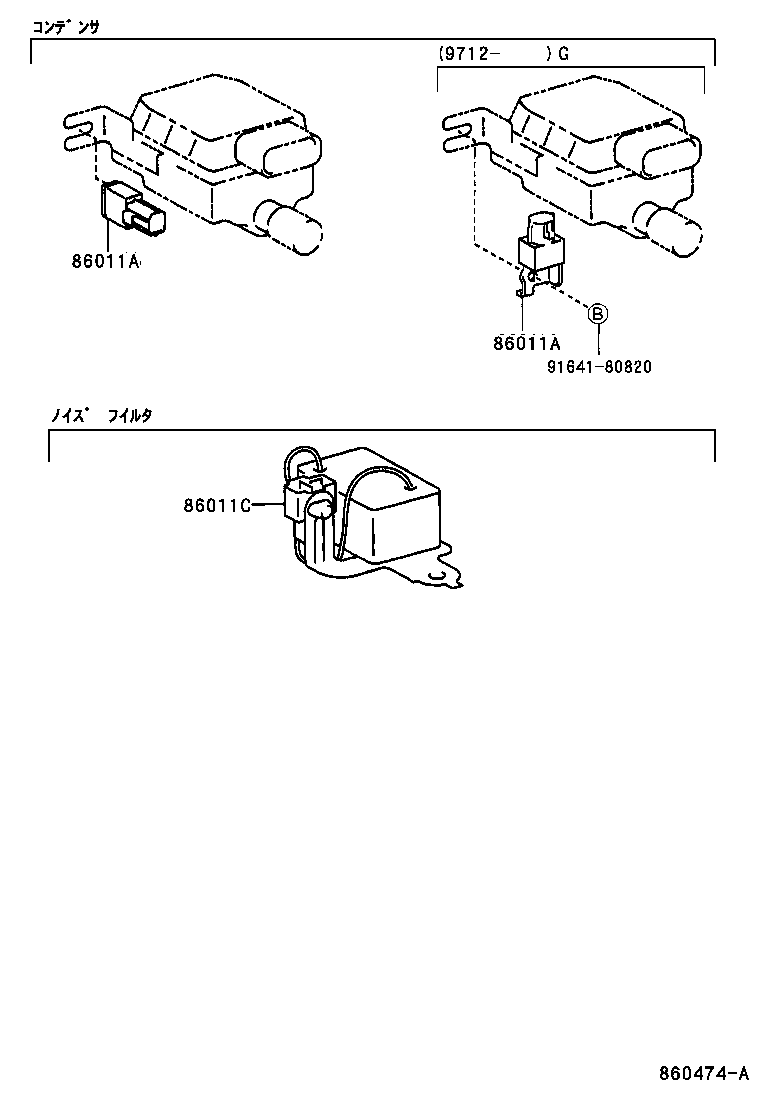

ILLUST NO. 3 OF 3(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04132 |
SW20..G |
1 | ||
| 90980-04084 |
SW20 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04132 |
SW20..G |
1 | ||
| 90980-04084 |
SW20 |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05179 |
SW20 |
1 | ||
| Common parts | ||||
| 91641-80820 | ||||
