SW20-AJPQF (1989)

Toyota Mr2

Production Dec 1989 - Aug 1999
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

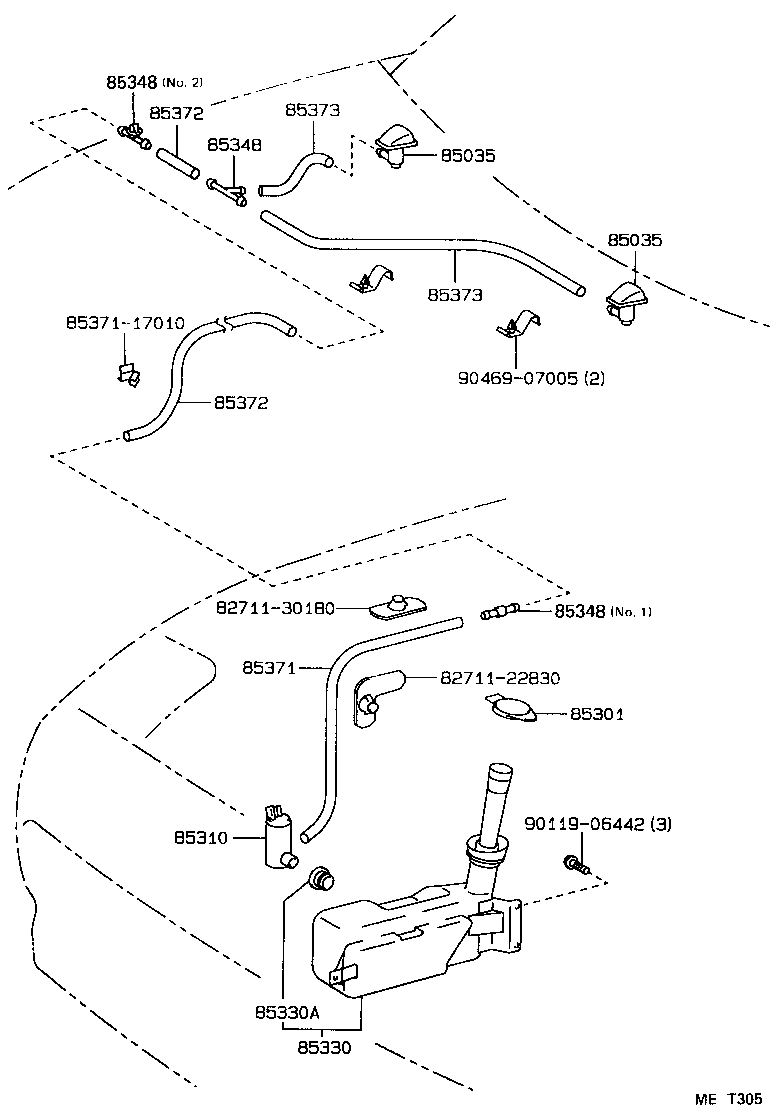

Click highlighted areas on diagram

diagram 8271122830 8271130180 85035 85035 85301 85310 85330 85330A 85348 85348 85348 85371 8537117010 85372 85372 85373 85373 9011906442 9046907005
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85382-17010

SW20

左側

 1
85381-17010

SW20

右側

 1
85381-12050

SW20

 2
85035 - NOZZLE SUB-ASSY, WASHER
85382-17010

SW20

左側

 1
85381-17010

SW20

右側

 1
85381-12050

SW20

 2
85301 - INLET SUB-ASSY, WASHER
85301-17020

SW20

ｶﾝﾚｲﾁ ｼﾖｳ

 1
85301-17010

SW20

 1
85301-17021

SW20

ｶﾝﾚｲﾁ ｼﾖｳ

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20210

SW20

 1
85310-22080

SW20

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-17020

SW20

 1
85315-17060

SW20

ｶﾝﾚｲﾁ ｼﾖｳ

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

SW20

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85334-22470

SW20

ｶﾝﾚｲﾁ ｼﾖｳ,2-WAY,NO.1

 1
85349-89122

SW20

2-WAY,NO.1

 1
85375-17050

SW20

2-WAY,NO.2

 1
85348-14390

SW20

3-WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85334-22470

SW20

ｶﾝﾚｲﾁ ｼﾖｳ,2-WAY,NO.1

 1
85349-89122

SW20

2-WAY,NO.1

 1
85375-17050

SW20

2-WAY,NO.2

 1
85348-14390

SW20

3-WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85334-22470

SW20

ｶﾝﾚｲﾁ ｼﾖｳ,2-WAY,NO.1

 1
85349-89122

SW20

2-WAY,NO.1

 1
85375-17050

SW20

2-WAY,NO.2

 1
85348-14390

SW20

3-WAY

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

SW20

*H,L=1020

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

SW20

*H,L=815

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

SW20

*H,L=815

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

SW20

*H,L=80

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

SW20

*H,L=80

 1
Common parts
82711-22830
82711-30180
85371-17010
90119-06442
90469-07005
