SW20-AJPQF (1989)
Toyota Mr2
Production
Dec 1989
-
Aug 1999
Engine
3SGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

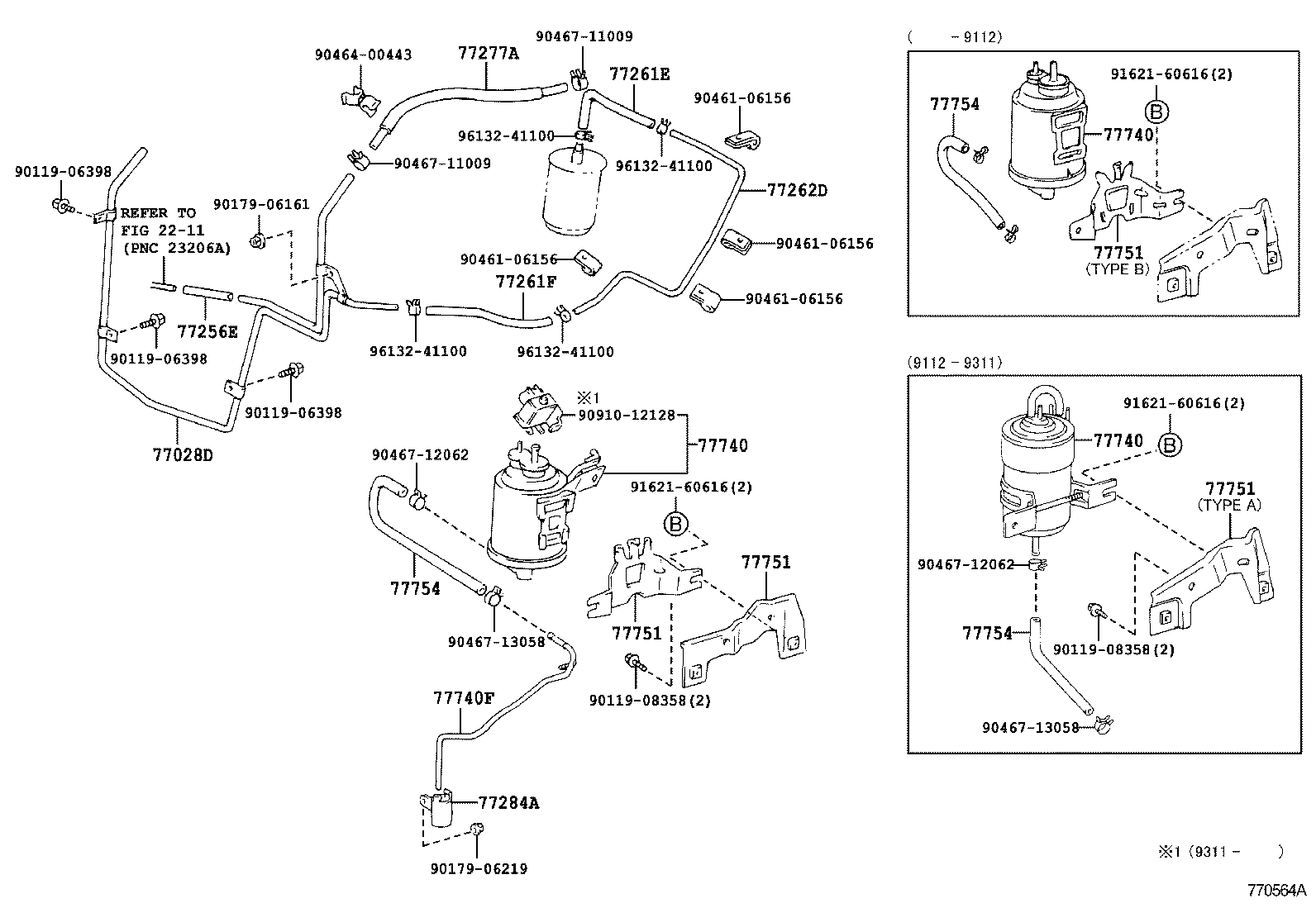

ILLUST NO. 2 OF 2(8912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77028D - TUBE SUB-ASSY, FUEL EMISSION, REAR | ||||
| 77028-17050 |
SW20 |
1 | ||
| 77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-06020 |
SW20 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-17020 |
SW20 D=12.1 |
1 | ||
| 77259-17020 |
SW20 |
1 | ||
| 95333-06020 |
SW20 *H,L=200,D=7.6 |
1 | ||
| 77259-17010 |
SW20 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
SW20 *H,L=200 |
1 | ||
| 77262D - GASKET, FUEL FILLER PIPE | ||||
| 77262-17010 |
SW20 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-74280 |
SW20 *H,L=400 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-17010 |
SW20 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-20230 |
SW20 |
1 | ||
| 77740-17041 |
SW20 |
1 | ||
| 77740-17030 |
SW20 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-20230 |
SW20 |
1 | ||
| 77740-17041 |
SW20 |
1 | ||
| 77740-17030 |
SW20 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-20230 |
SW20 |
1 | ||
| 77740-17041 |
SW20 |
1 | ||
| 77740-17030 |
SW20 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-17030 |
SW20 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-17010 |
SW20 ﾀｲﾌﾟ A |
1 | ||
| 77751-32010 |
SW20 ﾀｲﾌﾟ B |
1 | ||
| 77751-32010 |
SW20 ﾀｲﾌﾟ B |
1 | ||
| 77751-17010 |
SW20 |
1 | ||
| 77751-17010 |
SW20 ﾀｲﾌﾟ A |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-17010 |
SW20 ﾀｲﾌﾟ A |
1 | ||
| 77751-32010 |
SW20 ﾀｲﾌﾟ B |
1 | ||
| 77751-32010 |
SW20 ﾀｲﾌﾟ B |
1 | ||
| 77751-17010 |
SW20 |
1 | ||
| 77751-17010 |
SW20 ﾀｲﾌﾟ A |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-17010 |
SW20 ﾀｲﾌﾟ A |
1 | ||
| 77751-32010 |
SW20 ﾀｲﾌﾟ B |
1 | ||
| 77751-32010 |
SW20 ﾀｲﾌﾟ B |
1 | ||
| 77751-17010 |
SW20 |
1 | ||
| 77751-17010 |
SW20 ﾀｲﾌﾟ A |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-17010 |
SW20 ﾀｲﾌﾟ A |
1 | ||
| 77751-32010 |
SW20 ﾀｲﾌﾟ B |
1 | ||
| 77751-32010 |
SW20 ﾀｲﾌﾟ B |
1 | ||
| 77751-17010 |
SW20 |
1 | ||
| 77751-17010 |
SW20 ﾀｲﾌﾟ A |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-17020 |
SW20 |
1 | ||
| 77754-17020 |
SW20 |
1 | ||
| 77754-17030 |
SW20 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-17020 |
SW20 |
1 | ||
| 77754-17020 |
SW20 |
1 | ||
| 77754-17030 |
SW20 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-17020 |
SW20 |
1 | ||
| 77754-17020 |
SW20 |
1 | ||
| 77754-17030 |
SW20 |
1 | ||
| Common parts | ||||
| 90119-06398 | ||||
| 90119-08358 | ||||
| 90179-06161 | ||||
| 90179-06219 | ||||
| 90461-06156 | ||||
| 90464-00443 | ||||
| 90467-11009 | ||||
| 90467-12062 | ||||
| 90467-13058 | ||||
| 90910-12128 | ||||
| 91621-60616 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
ILLUST NO. 1 OF 2(8912- )
Click highlighted areas on diagram

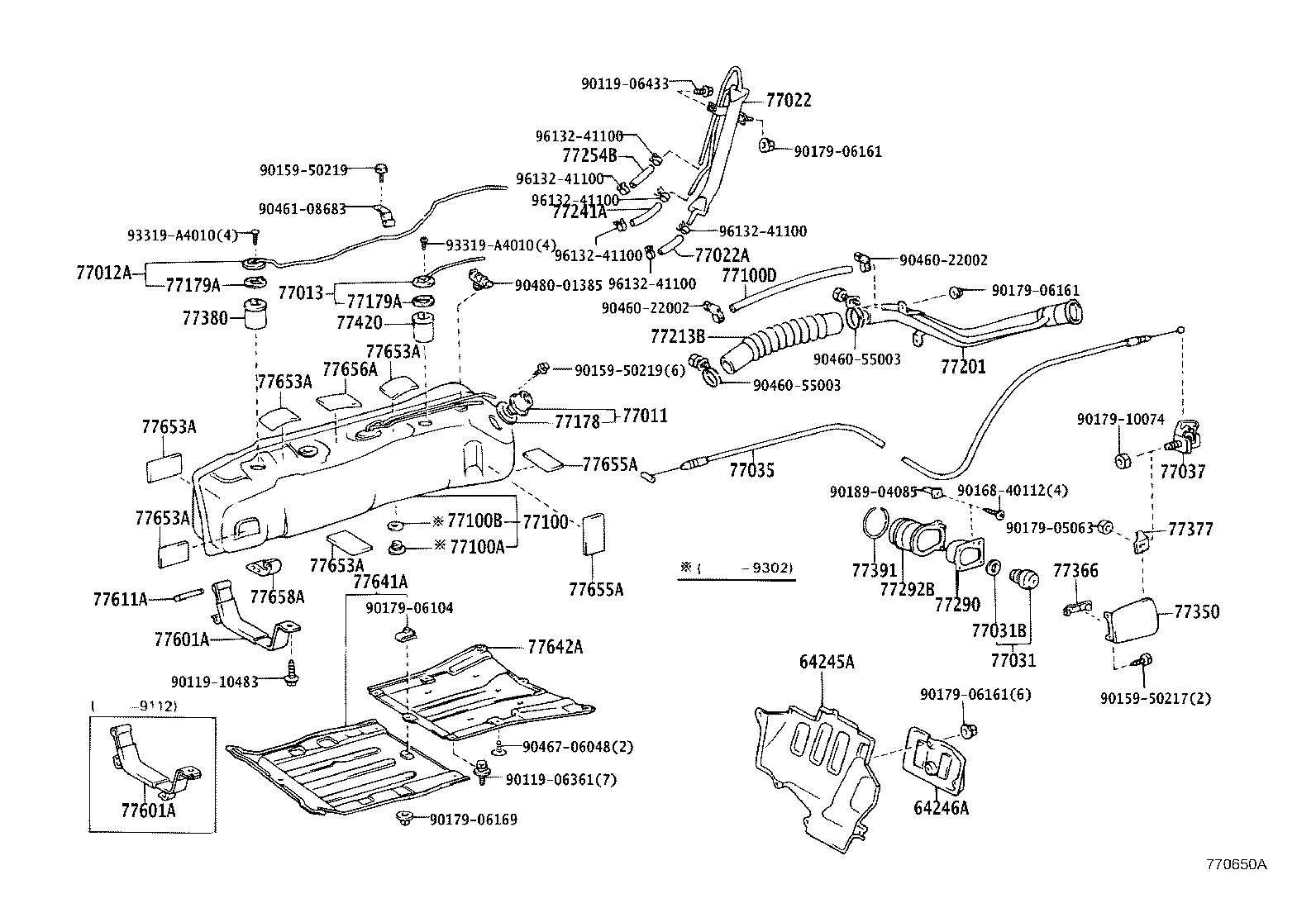

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64245A - INSULATOR, ROOM PARTITION HEAT, NO.1 | ||||
| 64245-17010 |
SW20 |
1 | ||
| 64246A - INSULATOR, ROOM PARTITION HEAT, NO.2 | ||||
| 64246-17010 |
SW20 |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-17040 |
SW20 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-17020 |
SW20 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77012-17010 |
SW20 |
1 | ||
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77013-17020 |
SW20 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77013-17010 |
SW20 |
1 | ||
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77022-17040 |
SW20 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77022-17030 |
SW20 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95334-06010 |
SW20 *H,L=100 |
1 | ||
| 95333-06010 |
SW20 *H,L=100 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
SW20 |
1 | ||
| 77310-16011 |
SW20 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
SW20 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-17050 |
SW20 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-17020 |
SW20 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-17905 |
SW20 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
SW20 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
SW20 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90447-22003 |
SW20 長さ=340 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
SW20 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
SW20 |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
SW20 |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-17060 |
SW20 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77201-17040 |
SW20 |
1 | ||
| 77201-17070 |
SW20 |
1 | ||
| 77201-17090 |
SW20 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-32010 |
SW20 長さ=248 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06020 |
SW20 *H,L=120 |
1 | ||
| 95334-06012 |
SW20 *H,L=120 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06020 |
SW20 *H,L=130 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-17020 |
SW20 |
1 | ||
| 77292B - SHIELD, FUEL TANK DRAIN PLUG | ||||
| 77292-17010 |
SW20 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-17020 |
SW20 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-17010 |
SW20 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20040 |
SW20 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
SW20 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-17010 |
SW20 |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
SW20 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-17030 |
SW20 |
1 | ||
| 77601-17020 |
SW20 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-17030 |
SW20 |
1 | ||
| 77601-17020 |
SW20 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
SW20 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-17020 |
SW20 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-17020 |
SW20 |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-17010 |
SW20 |
7 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-17010 |
SW20 |
7 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-17010 |
SW20 |
7 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-17010 |
SW20 |
7 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-17010 |
SW20 |
7 | ||
| 77655A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-17010 |
SW20 |
1 | ||
| 77655A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-17010 |
SW20 |
1 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-17010 |
SW20 |
1 | ||
| 77658A - PROTECTOR, FUEL TANK EDGE, NO.1 | ||||
| 77658-17010 |
SW20 |
1 | ||
| Common parts | ||||
| 90119-06361 | ||||
| 90119-06433 | ||||
| 90119-10483 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90168-40112 | ||||
| 90179-05063 | ||||
| 90179-06104 | ||||
| 90179-06161 | ||||
| 90179-06169 | ||||
| 90179-10074 | ||||
| 90189-04085 | ||||
| 90460-22002 | ||||
| 90460-55003 | ||||
| 90461-08683 | ||||
| 90467-06048 | ||||
| 90480-01385 | ||||
| 93319-A4010 | ||||
| 96132-41100 | ||||
