SW20-AJPQF (1989)

Toyota Mr2

Production Dec 1989 - Aug 1999
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

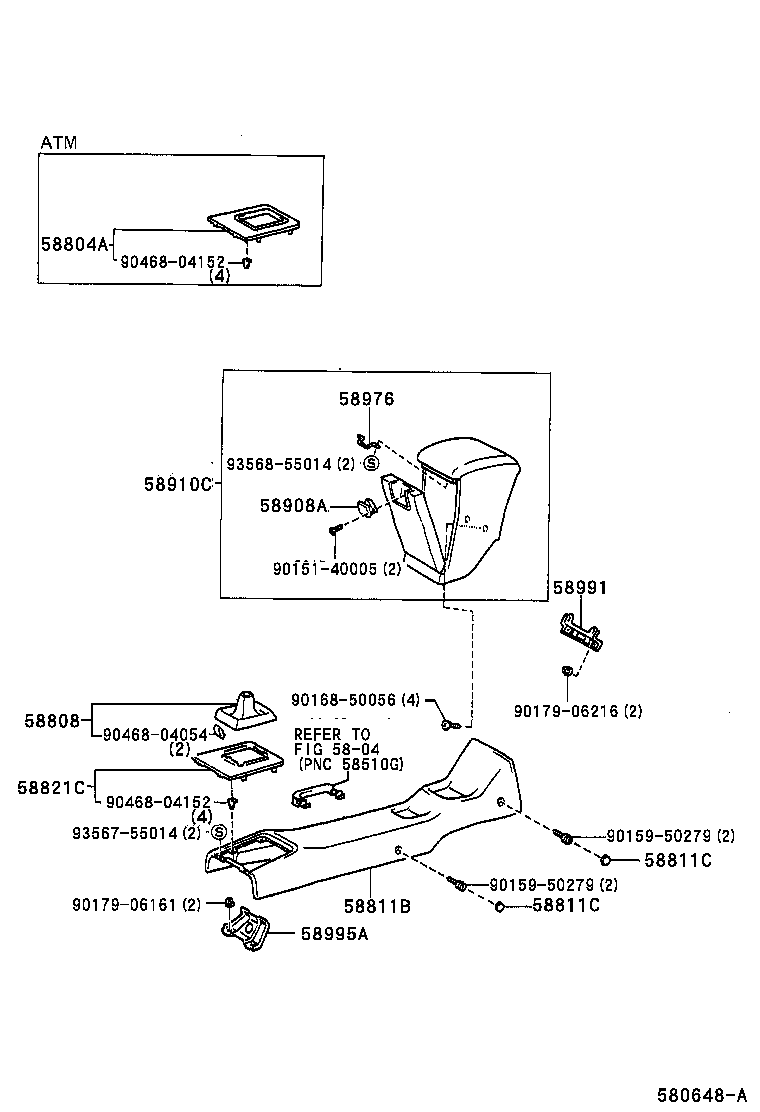

Click highlighted areas on diagram

diagram 5804 58804A 58808 58811B 58811C 58811C 58821C 58908A 58910C 58976 58991 58995A 9015140005 9015950279 9015950279 9016850056 9017906161 9017906216 9046804054 9046804152 9046804152 9356755014 9356855014
Part # Description Qty Price
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-17050

SW20..4FC

 1
58811B - BOX, CONSOLE
58801-1711001

SW20..G

BLACK,TRIM2#

 1
58801-1712001

SW20..G

ｱﾘ(ﾘﾔ ｺﾝｿ-ﾙ ﾎﾞﾂｸｽ),BLACK,TRIM2#

 1
58801-1711004

SW20..G

DARK BLUE,TRIM8#

 1
58801-1712022

SW20

BLACK,TRIM2#

 1
58801-1712004

SW20..G

ｱﾘ(ﾘﾔ ｺﾝｿ-ﾙ ﾎﾞﾂｸｽ),DARK BLUE,TRIM8#

 1
58801-17130C0

SW20

ｱﾘ(CD ｲﾂﾀｲｼｷ ｶｾﾂﾄ),BLACK,TRIM2#

 1
58801-1712001

SW20

BLACK,TRIM2#

 1
58811C - CAP(FOR CONSOLE)
90339-1000101

SW20

BLACK,TRIM2#

 4
90339-10001J1

SW20..G

DARK BLUE,TRIM8#

 4
90339-10001C0

SW20

BLACK,TRIM2#

 4
58811C - CAP(FOR CONSOLE)
90339-1000101

SW20

BLACK,TRIM2#

 4
90339-10001J1

SW20..G

DARK BLUE,TRIM8#

 4
90339-10001C0

SW20

BLACK,TRIM2#

 4
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-1701004

SW20..G

DARK BLUE,TRIM8#

 1
58908-1701001

SW20

BLACK,TRIM2#

 1
58908-1701022

SW20

BLACK,TRIM2#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-1702004

SW20..G

DARK BLUE,TRIM8#

 1
58910-17030C0

SW20

ｱﾘ(CD ｲﾂﾀｲｼｷ ｶｾﾂﾄ),BLACK,TRIM2#

 1
58910-1702022

SW20

BLACK,TRIM2#

 1
58910-1702001

SW20

BLACK,TRIM2#

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-17010

SW20

 1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-17020

SW20

 1
58991-17030

SW20

ｱﾘ(CD ｲﾂﾀｲｼｷ ｶｾﾂﾄ)

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-17020

SW20

 1
Common parts
90151-40005
90159-50279
90168-50056
90179-06161
90179-06216
90468-04054
90468-04152
93567-55014
93568-55014
Linked diagrams
5804
