SW20-AJPQF (1989)
Toyota Mr2

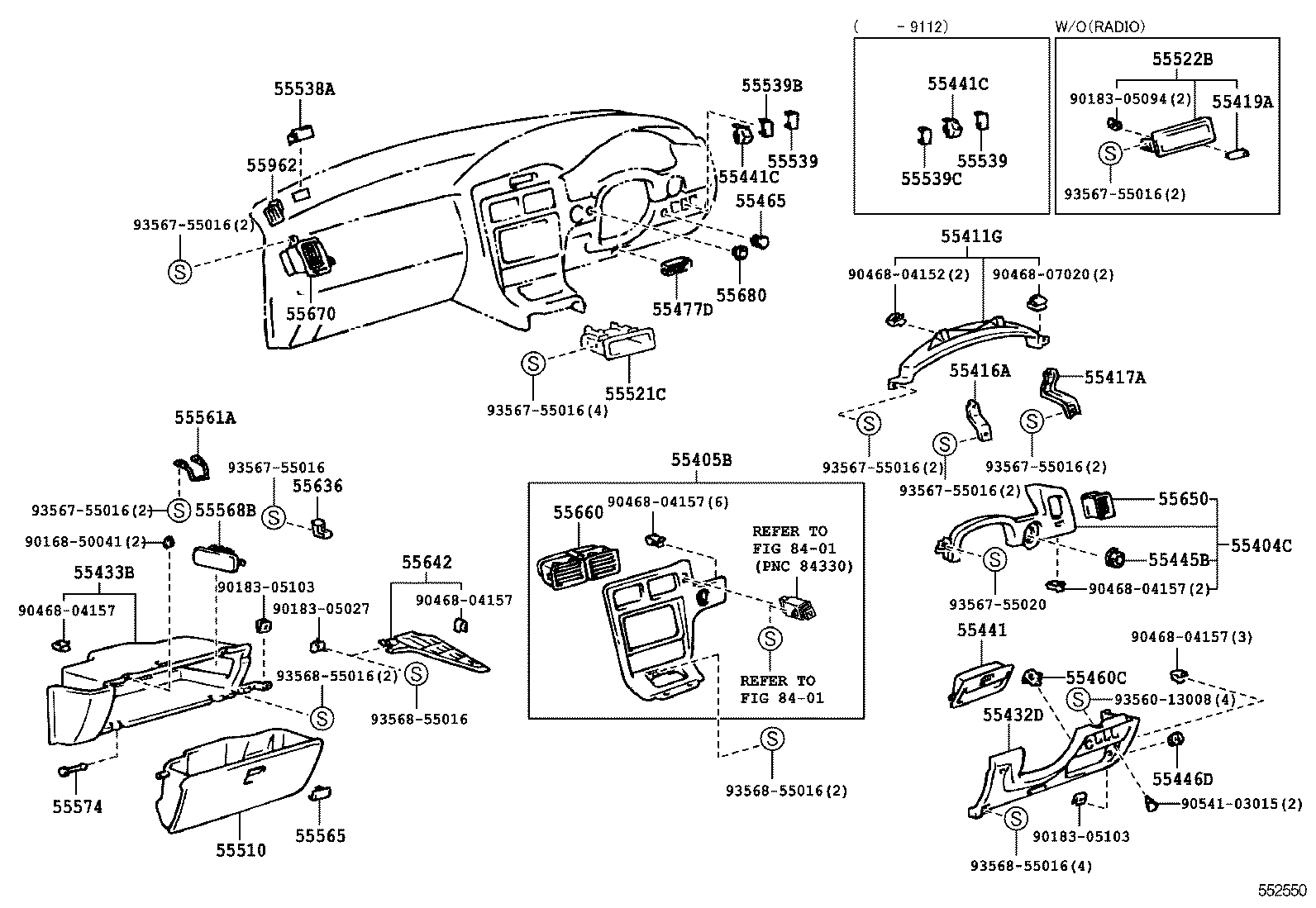

ILLUST NO. 2 OF 2(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-17020 |
SW20 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-17040 |
SW20 |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-17060 |
SW20 |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-17020 |
SW20 |
1 | ||
| 55417A - RETAINER, METER HOOD, NO.2 | ||||
| 55417-17010 |
SW20 |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-14020 |
SW20 |
2 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-1703004 |
SW20..G DARK BLUE,TRIM8# |
1 | ||
| 55432-1703001 |
SW20 BLACK,TRIM2# |
1 | ||
| 55432-17050C0 |
SW20 BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-1704001 |
SW20 BLACK,TRIM2# |
1 | ||
| 55433-1704004 |
SW20..G DARK BLUE,TRIM8# |
1 | ||
| 55433-1704022 |
SW20 BLACK,TRIM2# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-1702004 |
SW20..G DARK BLUE,TRIM8# |
1 | ||
| 55440-1702001 |
SW20 BLACK,TRIM2# |
1 | ||
| 55440-17020C0 |
SW20 BLACK,TRIM2# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-2014034 |
SW20..G DARK BLUE,TRIM8# |
1 | ||
| 55441-2014011 |
SW20 BLACK,TRIM2# |
1 | ||
| 55441-20140C0 |
SW20 BLACK,TRIM2# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-2014034 |
SW20..G DARK BLUE,TRIM8# |
1 | ||
| 55441-2014011 |
SW20 BLACK,TRIM2# |
1 | ||
| 55441-20140C0 |
SW20 BLACK,TRIM2# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-22090 |
SW20 |
1 | ||
| 55446D - SHAFT, INSTRUMENT PANEL BOX | ||||
| 55446-17020 |
SW20 |
2 | ||
| 55460C - LOCK ASSY, INSTRUMENT PANEL BOX | ||||
| 55460-17010 |
SW20 |
1 | ||
| 55465 - COVER, INSTRUMENT HOLE | ||||
| 55531-32020 |
SW20 |
1 | ||
| 55477D - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55477-17040 |
SW20 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1703022 |
SW20 BLACK,TRIM2# |
1 | ||
| 55550-1703001 |
SW20 BLACK,TRIM2# |
1 | ||
| 55550-1703004 |
SW20..G DARK BLUE,TRIM8# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
SW20 |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-20070 |
SW20 |
1 | ||
| 55522-32010 |
SW20 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-20080C0 |
SW20 BLACK,TRIM2# |
1 | ||
| 55539-2008001 |
SW20 BLACK,TRIM2# |
1 | ||
| 55539-2008004 |
SW20..G DARK BLUE,TRIM8# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-20080C0 |
SW20 BLACK,TRIM2# |
1 | ||
| 55539-2008001 |
SW20 BLACK,TRIM2# |
1 | ||
| 55539-2008004 |
SW20..G DARK BLUE,TRIM8# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-20080C0 |
SW20 BLACK,TRIM2# |
1 | ||
| 55539-2008001 |
SW20 BLACK,TRIM2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-2008001 |
SW20..G BLACK,TRIM2# |
1 | ||
| 55539-2008004 |
SW20..G DARK BLUE,TRIM8# |
1 | ||
| 55539-20080C0 |
SW20..G;SW20..CP..GT BLACK,TRIM2# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-17020 |
SW20 |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-2007004 |
SW20..G DARK BLUE,TRIM8# |
1 | ||
| 55565-2007001 |
SW20 BLACK,TRIM2# |
1 | ||
| 55565-2007022 |
SW20 BLACK,TRIM2# |
1 | ||
| 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH | ||||
| 55568-24020 |
SW20 |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
SW20 |
2 | ||
| 55636 - BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1 | ||||
| 55636-17010 |
SW20 |
1 | ||
| 55642 - COVER, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55642-1701004 |
SW20..G DARK BLUE,TRIM8# |
1 | ||
| 55642-1701001 |
SW20 BLACK,TRIM2# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-17020 |
SW20 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-17030 |
SW20 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1705004 |
SW20..G DARK BLUE,TRIM8# |
1 | ||
| 55670-1705022 |
SW20 BLACK,TRIM2# |
1 | ||
| 55670-1705001 |
SW20 BLACK,TRIM2# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-1705004 |
SW20..G DARK BLUE,TRIM8# |
1 | ||
| 55680-1705001 |
SW20 BLACK,TRIM2# |
1 | ||
| 55680-1705022 |
SW20 BLACK,TRIM2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-1701022 |
SW20 BLACK,TRIM2# |
1 | ||
| 55962-1701004 |
SW20..G DARK BLUE,TRIM8# |
1 | ||
| 55962-1701001 |
SW20 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90168-50041 | ||||
| 90183-05027 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90468-04152 | ||||
| 90468-04157 | ||||
| 90468-07020 | ||||
| 90541-03015 | ||||
| 93560-13008 | ||||
| 93567-55016 | ||||
| 93567-55020 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

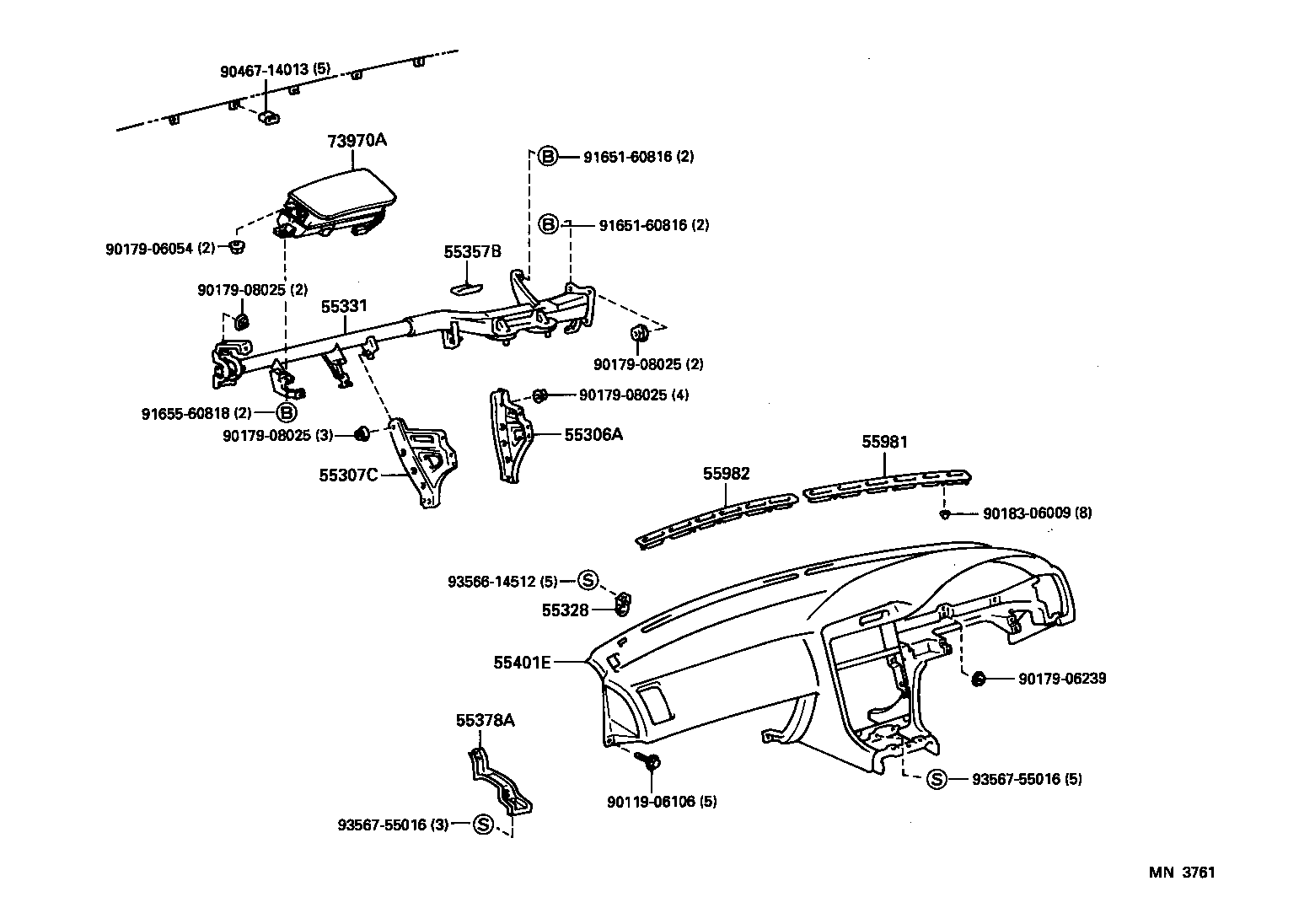

ILLUST NO. 1 OF 2(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-17040 |
SW20 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-17030 |
SW20 |
1 | ||
| 55307-17031 |
SW20 |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-14030 |
SW20 |
5 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-17040 |
SW20 |
1 | ||
| 55330-17060 |
SW20 |
1 | ||
| 55330-17090 |
SW20 |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-22010 |
SW20 |
2 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-17010 |
SW20 |
1 | ||
| 55378-17040 |
SW20 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-1703001 |
SW20 BLACK,TRIM2# |
1 | ||
| 55401-1703004 |
SW20..G DARK BLUE,TRIM8# |
1 | ||
| 55401-17030C0 |
SW20 BLACK,TRIM2# |
1 | ||
| 55401-17070C0 |
SW20 BLACK,TRIM2# |
1 | ||
| 55401-17060C0 |
SW20 BLACK,TRIM2# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-1701001 |
SW20 BLACK,TRIM2# |
1 | ||
| 55981-1701022 |
SW20 BLACK,TRIM2# |
1 | ||
| 55981-1701004 |
SW20..G DARK BLUE,TRIM8# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-1701001 |
SW20 BLACK,TRIM2# |
1 | ||
| 55982-1701004 |
SW20..G DARK BLUE,TRIM8# |
1 | ||
| 55982-1701022 |
SW20 BLACK,TRIM2# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-17021 |
SW20 |
1 | ||
| 73970-17020 |
SW20 |
1 | ||
| Common parts | ||||
| 90119-06106 | ||||
| 90179-06054 | ||||
| 90179-06239 | ||||
| 90179-08025 | ||||
| 90183-06009 | ||||
| 90467-14013 | ||||
| 91651-60816 | ||||
| 91655-60818 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
