SW20-AJPQF (1989)
Toyota Mr2

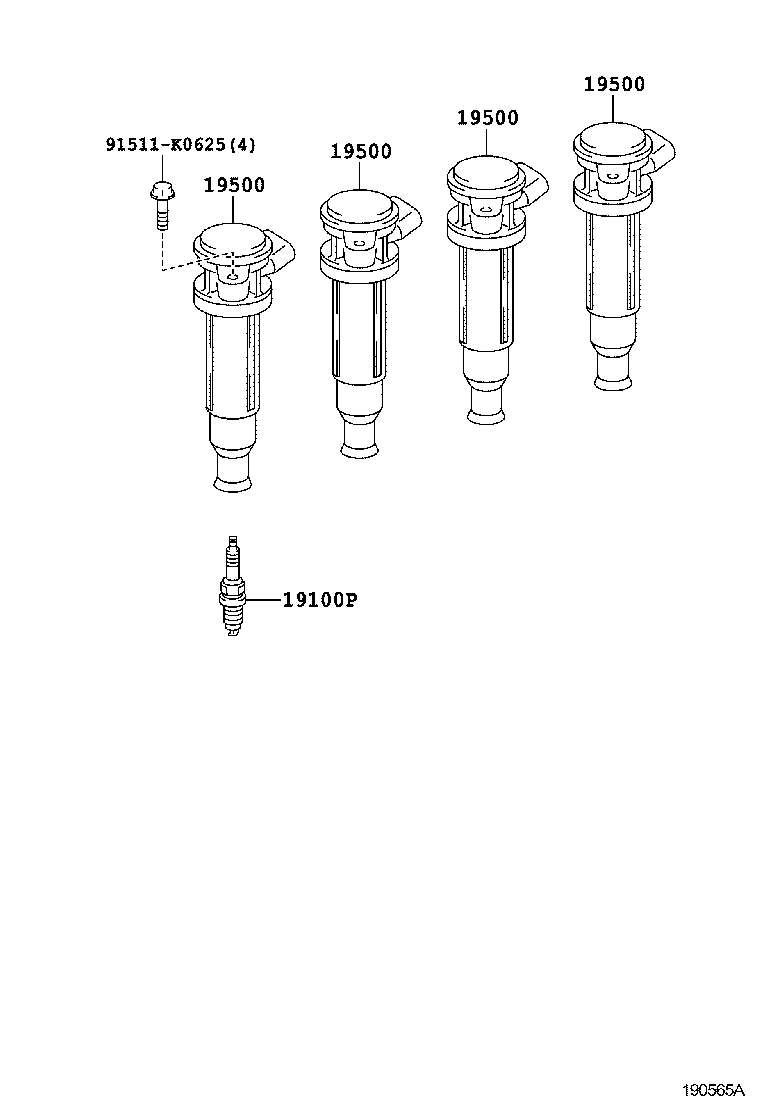

(9712- )3SGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01179 |
3SGE..SW20 BKR6EP11 |
4 | ||
| 90919-01181 |
3SG#..SW20 BKR6EP−8 |
4 | ||
| 90919-01180 |
3SG#..SW20 PK20R8 |
4 | ||
| 90919-01178 |
3SGE..SW20 PK20R11 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02197 |
3SG#..SW20 |
1 | ||
| 90919-02227 |
3SGE..SW20 |
4 | ||
| 90919-02185 |
3SG#..SW20 |
1 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02197 |
3SG#..SW20 |
1 | ||
| 90919-02227 |
3SGE..SW20 |
4 | ||
| 90919-02185 |
3SG#..SW20 |
1 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02197 |
3SG#..SW20 |
1 | ||
| 90919-02227 |
3SGE..SW20 |
4 | ||
| 90919-02185 |
3SG#..SW20 |
1 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02197 |
3SG#..SW20 |
1 | ||
| 90919-02227 |
3SGE..SW20 |
4 | ||
| 90919-02185 |
3SG#..SW20 |
1 | ||
| Common parts | ||||
| 91511-K0625 | ||||

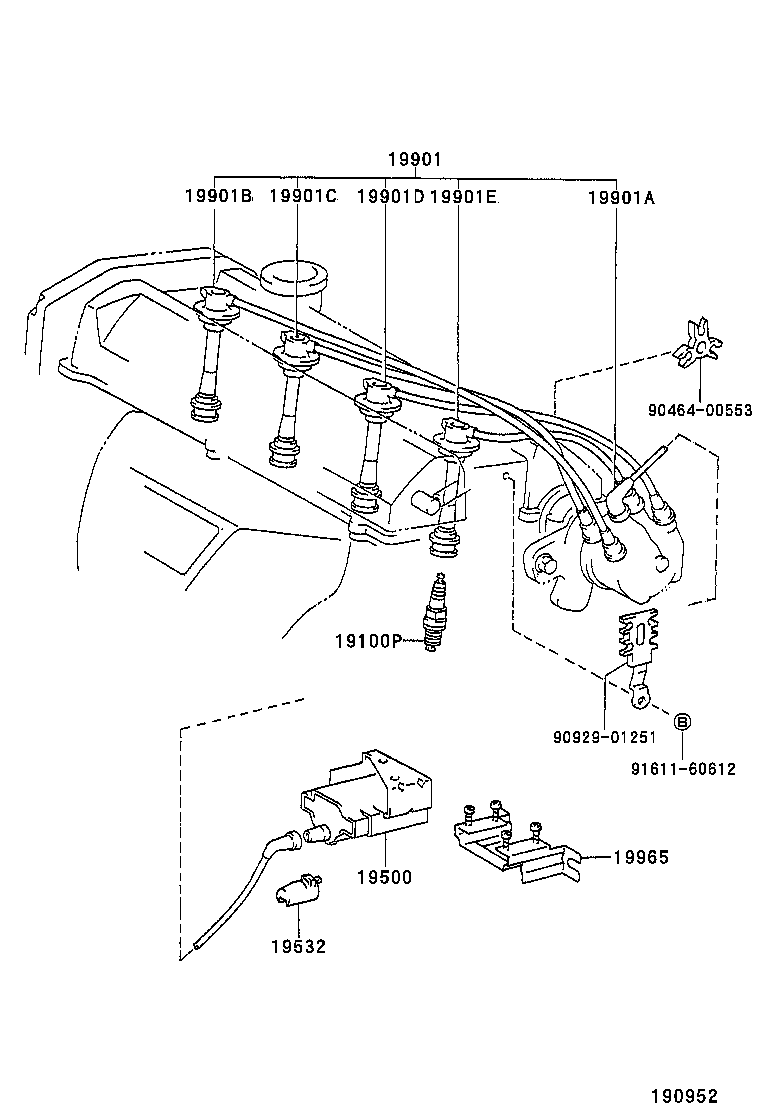

(8912-9112)3SGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01179 |
3SGE..SW20 BKR6EP11 |
4 | ||
| 90919-01181 |
3SG#..SW20 BKR6EP−8 |
4 | ||
| 90919-01180 |
3SG#..SW20 PK20R8 |
4 | ||
| 90919-01178 |
3SGE..SW20 PK20R11 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02197 |
3SG#..SW20 |
1 | ||
| 90919-02227 |
3SGE..SW20 |
4 | ||
| 90919-02185 |
3SG#..SW20 |
1 | ||
| 19532 - HOLDER, RESISTIVE CODE, NO.2 | ||||
| 19532-74010 |
3SG#..SW20 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21494 |
3SGE..SW20 |
1 | ||
| 90919-21537 |
3SGE..SW20 |
1 | ||
| 90919-21580 |
3SGE..SW20 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 19590-74170 |
3SG#..SW20 |
1 | ||
| 19590-74060 |
3SGE..SW20 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-15046 |
3SGE..SW20 |
1 | ||
| 90919-15396 |
3SGE..SW20 |
1 | ||
| 90919-15262 |
3SGE..SW20 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-15263 |
3SGE..SW20 |
1 | ||
| 90919-15047 |
3SGE..SW20 |
1 | ||
| 90919-15397 |
3SGE..SW20 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-15048 |
3SGE..SW20 |
1 | ||
| 90919-15398 |
3SGE..SW20 |
1 | ||
| 90919-15264 |
3SGE..SW20 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-15399 |
3SGE..SW20 |
1 | ||
| 90919-15049 |
3SGE..SW20 |
1 | ||
| 90919-15265 |
3SGE..SW20 |
1 | ||
| 19965 - BAND, IGNITION COIL, NO.1 | ||||
| 90919-03112 |
3SG#..SW20 |
1 | ||
| Common parts | ||||
| 90464-00553 | ||||
| 90929-01251 | ||||
| 91611-60612 | ||||

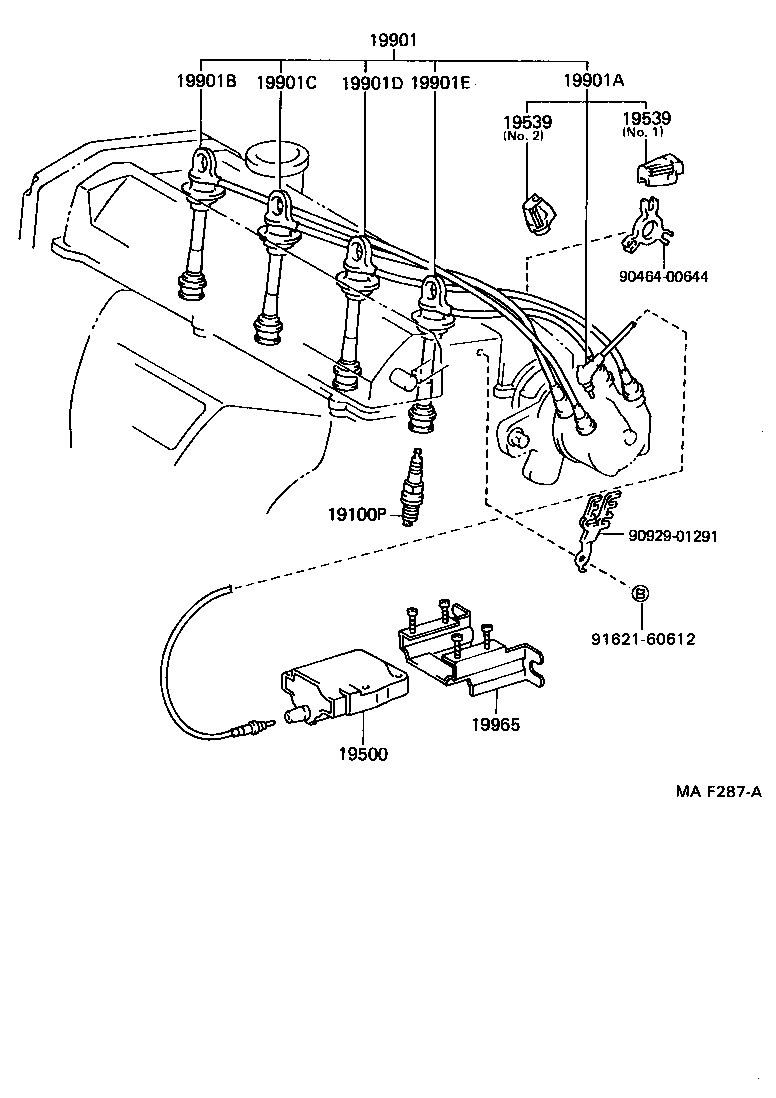

(9112-9311)3SGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01179 |
3SGE..SW20 BKR6EP11 |
4 | ||
| 90919-01181 |
3SG#..SW20 BKR6EP−8 |
4 | ||
| 90919-01180 |
3SG#..SW20 PK20R8 |
4 | ||
| 90919-01178 |
3SGE..SW20 PK20R11 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02197 |
3SG#..SW20 |
1 | ||
| 90919-02227 |
3SGE..SW20 |
4 | ||
| 90919-02185 |
3SG#..SW20 |
1 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-74010 |
3SG#..SW20 NO.1 |
1 | ||
| 19539-74020 |
3SG#..SW20 NO.2 |
1 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-74010 |
3SG#..SW20 NO.1 |
1 | ||
| 19539-74020 |
3SG#..SW20 NO.2 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21494 |
3SGE..SW20 |
1 | ||
| 90919-21537 |
3SGE..SW20 |
1 | ||
| 90919-21580 |
3SGE..SW20 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 19590-74170 |
3SG#..SW20 |
1 | ||
| 19590-74060 |
3SGE..SW20 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-15046 |
3SGE..SW20 |
1 | ||
| 90919-15396 |
3SGE..SW20 |
1 | ||
| 90919-15262 |
3SGE..SW20 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-15263 |
3SGE..SW20 |
1 | ||
| 90919-15047 |
3SGE..SW20 |
1 | ||
| 90919-15397 |
3SGE..SW20 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-15048 |
3SGE..SW20 |
1 | ||
| 90919-15398 |
3SGE..SW20 |
1 | ||
| 90919-15264 |
3SGE..SW20 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-15399 |
3SGE..SW20 |
1 | ||
| 90919-15049 |
3SGE..SW20 |
1 | ||
| 90919-15265 |
3SGE..SW20 |
1 | ||
| 19965 - BAND, IGNITION COIL, NO.1 | ||||
| 90919-03112 |
3SG#..SW20 |
1 | ||
| Common parts | ||||
| 90464-00644 | ||||
| 90929-01291 | ||||
| 91621-60612 | ||||

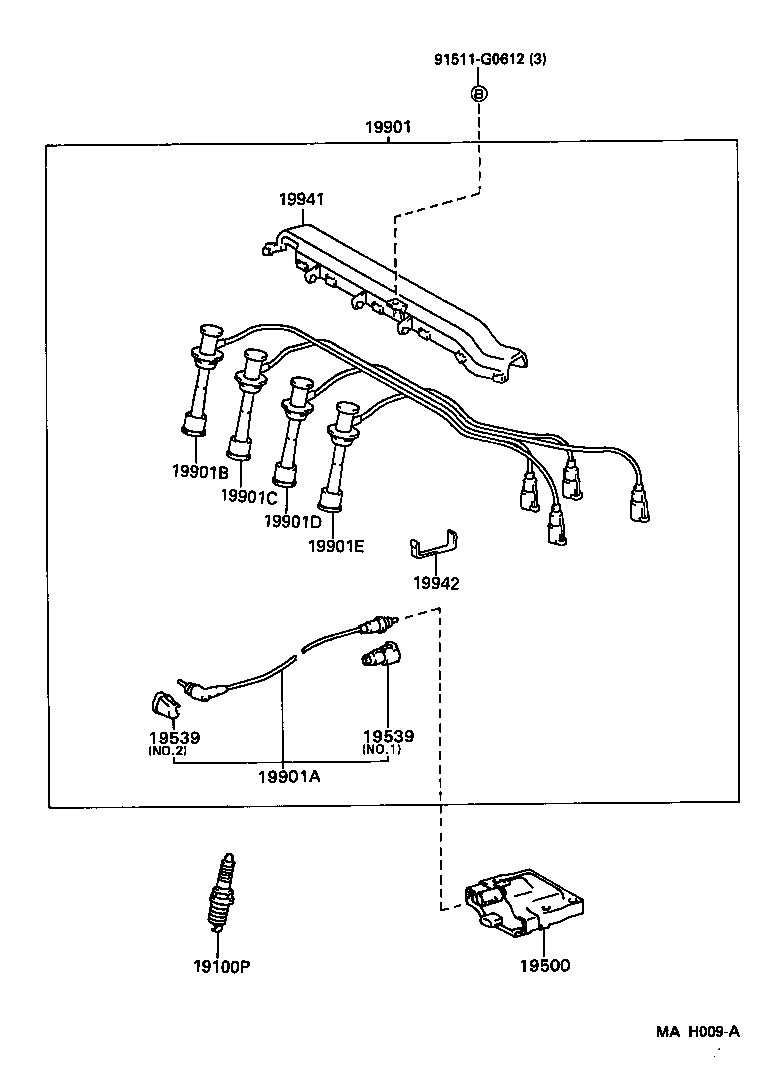

(9311-9712)3SGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01179 |
3SGE..SW20 BKR6EP11 |
4 | ||
| 90919-01181 |
3SG#..SW20 BKR6EP−8 |
4 | ||
| 90919-01180 |
3SG#..SW20 PK20R8 |
4 | ||
| 90919-01178 |
3SGE..SW20 PK20R11 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02197 |
3SG#..SW20 |
1 | ||
| 90919-02227 |
3SGE..SW20 |
4 | ||
| 90919-02185 |
3SG#..SW20 |
1 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-74010 |
3SG#..SW20 NO.1 |
1 | ||
| 19539-74020 |
3SG#..SW20 NO.2 |
1 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-74010 |
3SG#..SW20 NO.1 |
1 | ||
| 19539-74020 |
3SG#..SW20 NO.2 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21494 |
3SGE..SW20 |
1 | ||
| 90919-21537 |
3SGE..SW20 |
1 | ||
| 90919-21580 |
3SGE..SW20 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 19590-74170 |
3SG#..SW20 |
1 | ||
| 19590-74060 |
3SGE..SW20 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-15046 |
3SGE..SW20 |
1 | ||
| 90919-15396 |
3SGE..SW20 |
1 | ||
| 90919-15262 |
3SGE..SW20 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-15263 |
3SGE..SW20 |
1 | ||
| 90919-15047 |
3SGE..SW20 |
1 | ||
| 90919-15397 |
3SGE..SW20 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-15048 |
3SGE..SW20 |
1 | ||
| 90919-15398 |
3SGE..SW20 |
1 | ||
| 90919-15264 |
3SGE..SW20 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-15399 |
3SGE..SW20 |
1 | ||
| 90919-15049 |
3SGE..SW20 |
1 | ||
| 90919-15265 |
3SGE..SW20 |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 19941-88460 |
3SGE..SW20 |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 19942-88460 |
3SGE..SW20 |
6 | ||
| Common parts | ||||
| 91511-G0612 | ||||
