SW20-AJPQF (1989)
Toyota Mr2
Production
Dec 1989
-
Aug 1999
Engine
3SGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )

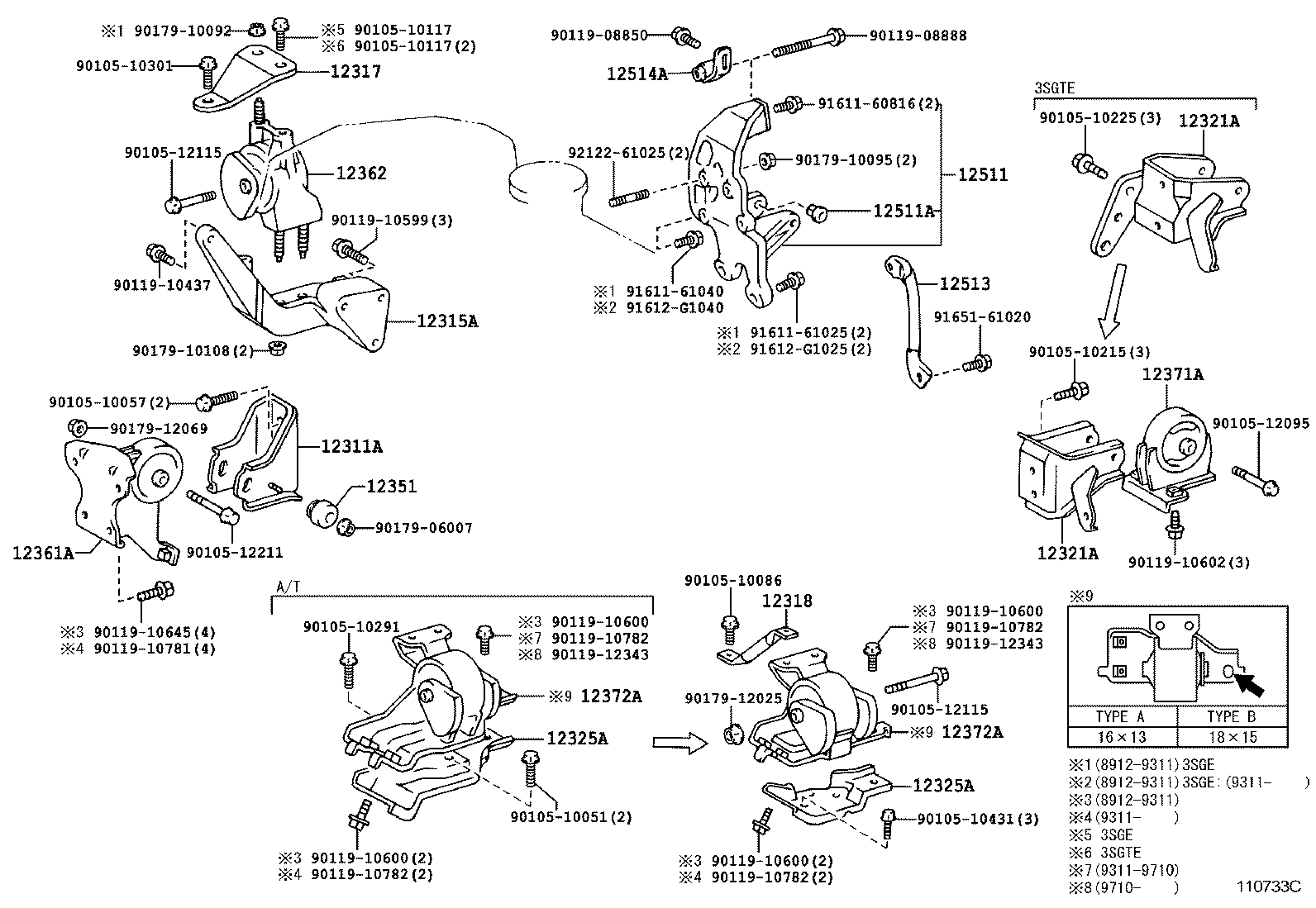

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-74090 |
3SG#..SW20 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-74070 |
3SG#..SW20 |
1 | ||
| 12315-74180 |
3SGE..SW20 |
1 | ||
| 12317 - STAY, ENGINE MOUNTING, RH | ||||
| 12317-74091 |
3SG#..SW20 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74200 |
3SGE..SW20..4FC |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74200 |
3SGE..SW20..4FC |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74100 |
3SGE..SW20..4FC |
1 | ||
| 12325-74450 |
3SGE..SW20..4FC |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74100 |
3SGE..SW20..4FC |
1 | ||
| 12325-74450 |
3SGE..SW20..4FC |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-74060 |
3SG#..SW20 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-74170 |
3SGE..SW20..4FC |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-74180 |
3SGE..SW20..4FC |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74230 |
3SGE..SW20 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74270 |
3SGE..SW20..4FC TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 12372-74272 |
3SGE..SW20..4FC |
1 | ||
| 12372-74271 |
3SGE..SW20..4FC TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74270 |
3SGE..SW20..4FC TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 12372-74272 |
3SGE..SW20..4FC |
1 | ||
| 12372-74271 |
3SGE..SW20..4FC TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12501-74010 |
3SGE..SW20 |
1 | ||
| 12501-74020 |
3SGE..SW20..4FC ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 12501-74040 |
3SGE..SW20 |
1 | ||
| 12501-74050 |
3SGE..SW20..4FC ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 12511A - BUSH, ALTERNATOR BRACKET | ||||
| 27351-70010 |
3SGTE..SW20;3SGE..SW20..TBR;3SGE..SW20..CP..4FC |
1 | ||
| 27351-70010 |
3SG#..SW20 |
1 | ||
| 12513 - BRACKET, ALTERNATOR, NO.3 | ||||
| 12513-74010 |
3SGE..SW20..4FC |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-74020 |
3SG#..SW20 |
1 | ||
| Common parts | ||||
| 90105-10051 | ||||
| 90105-10057 | ||||
| 90105-10086 | ||||
| 90105-10117 | ||||
| 90105-10215 | ||||
| 90105-10225 | ||||
| 90105-10291 | ||||
| 90105-10301 | ||||
| 90105-10431 | ||||
| 90105-12095 | ||||
| 90105-12115 | ||||
| 90105-12211 | ||||
| 90119-08850 | ||||
| 90119-08888 | ||||
| 90119-10437 | ||||
| 90119-10599 | ||||
| 90119-10600 | ||||
| 90119-10602 | ||||
| 90119-10645 | ||||
| 90119-10781 | ||||
| 90119-10782 | ||||
| 90119-12343 | ||||
| 90179-06007 | ||||
| 90179-10092 | ||||
| 90179-10095 | ||||
| 90179-10108 | ||||
| 90179-12025 | ||||
| 90179-12069 | ||||
| 91611-60816 | ||||
| 91611-61025 | ||||
| 91611-61040 | ||||
| 91612-G1025 | ||||
| 91612-G1040 | ||||
| 91651-61020 | ||||
| 92122-61025 | ||||
