SW20-AJMZZ (1989)
Toyota Mr2
Production
Dec 1989
-
Aug 1999
Engine
3SGTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

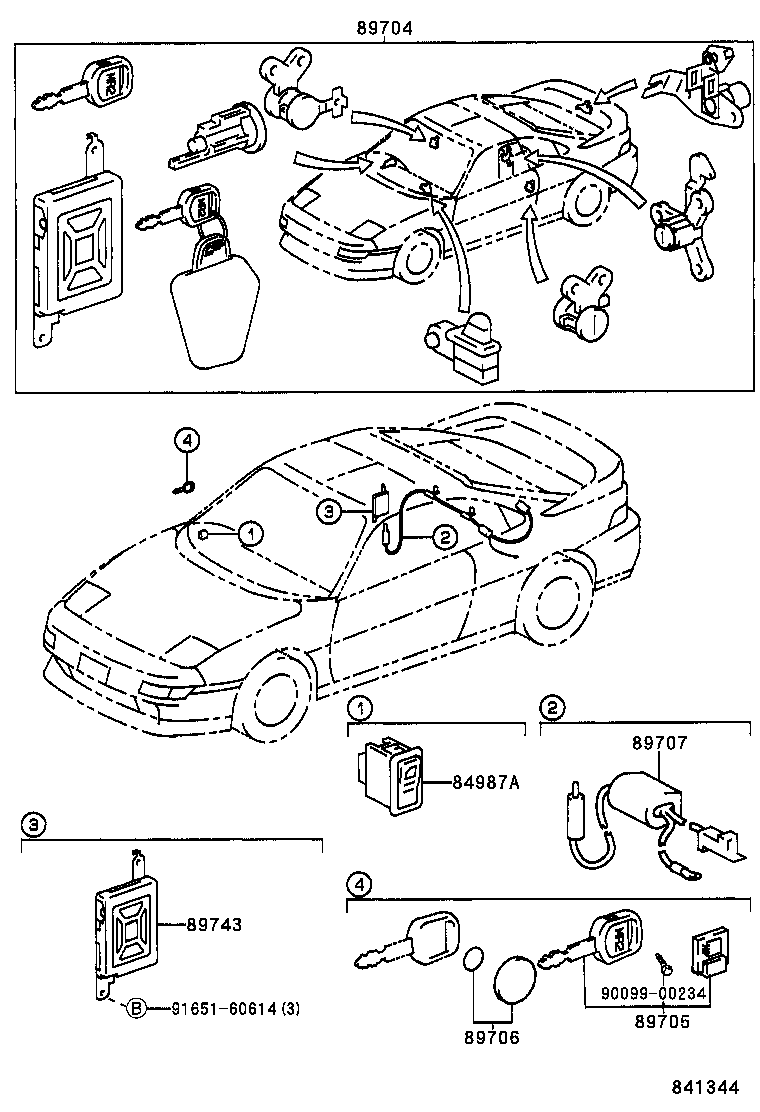

(8912-9311)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84987A - SWITCH, KEYLESS ENTRY CANCEL | ||||
| 84987-17010 |
SW20 |
1 | ||
| 89704 - CONTROL SET, WIRELESS DOOR LOCK | ||||
| 89704-17010 |
SW20 |
1 | ||
| 89704-17110 |
SW20 |
1 | ||
| 89704-17101 |
SW20 |
1 | ||
| 89705 - TRANSMITTER, DOOR CONTROL | ||||
| 89705-17011 |
SW20 |
1 | ||
| 89705-17010 |
SW20 |
1 | ||
| 89706 - BATTERY SET, TRANSMITTER | ||||
| 89706-30010 |
SW20..GT |
1 | ||
| 89706-50010 |
SW20 |
1 | ||
| 89707 - CORD SUB-ASSY, WIRELESS DOOR LOCK | ||||
| 89707-17010 |
SW20 |
1 | ||
| 89743 - RECEIVER, DOOR CONTROL | ||||
| 89743-17010 |
SW20 |
1 | ||
| Common parts | ||||
| 90099-00234 | ||||
| 91651-60614 | ||||

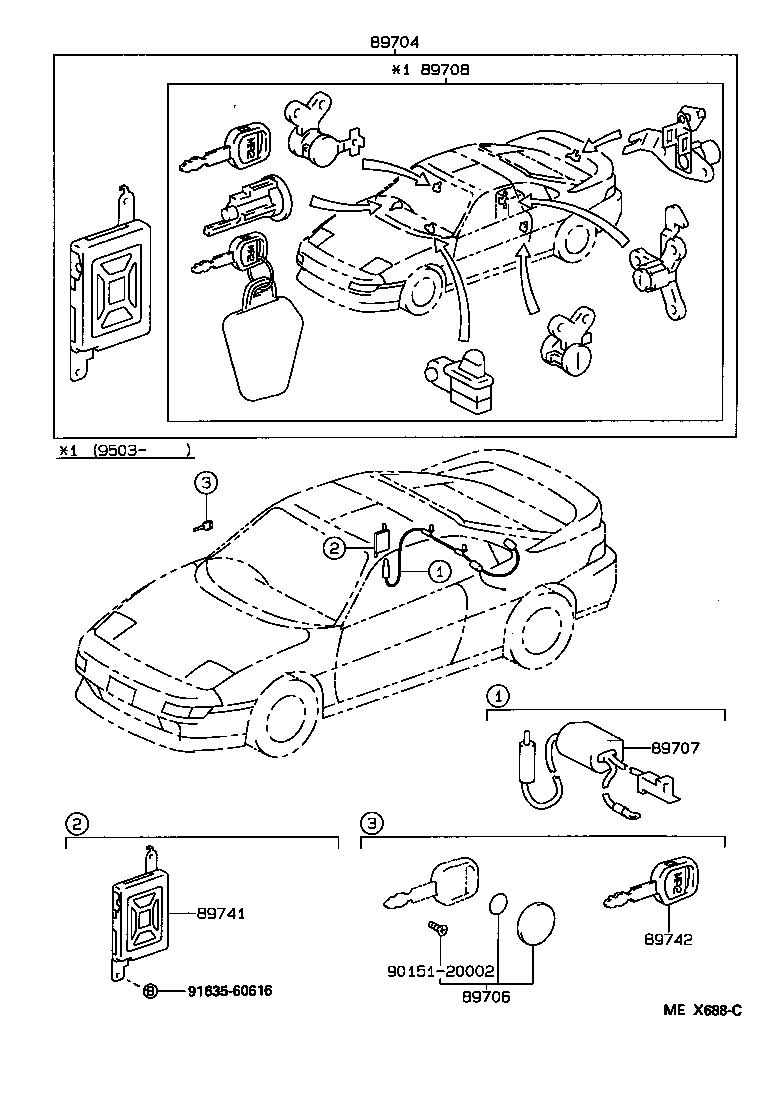

(9311- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89704 - CONTROL SET, WIRELESS DOOR LOCK | ||||
| 89704-17010 |
SW20 |
1 | ||
| 89704-17110 |
SW20 |
1 | ||
| 89704-17101 |
SW20 |
1 | ||
| 89706 - BATTERY SET, TRANSMITTER | ||||
| 89706-30010 |
SW20..GT |
1 | ||
| 89706-50010 |
SW20 |
1 | ||
| 89707 - CORD SUB-ASSY, WIRELESS DOOR LOCK | ||||
| 89707-17010 |
SW20 |
1 | ||
| 89708 - CYLINDER SET, WIRELESS DOOR LOCK | ||||
| 89708-17030 |
SW20 |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-17030 |
SW20 |
1 | ||
| 89742 - TRANSMITTER, DOOR CONTROL | ||||
| 89742-17080 |
SW20 |
1 | ||
| Common parts | ||||
| 90151-20002 | ||||
| 91635-60616 | ||||
