SW20-AJMZZ (1989)

Toyota Mr2

Production Dec 1989 - Aug 1999
Engine 3SGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

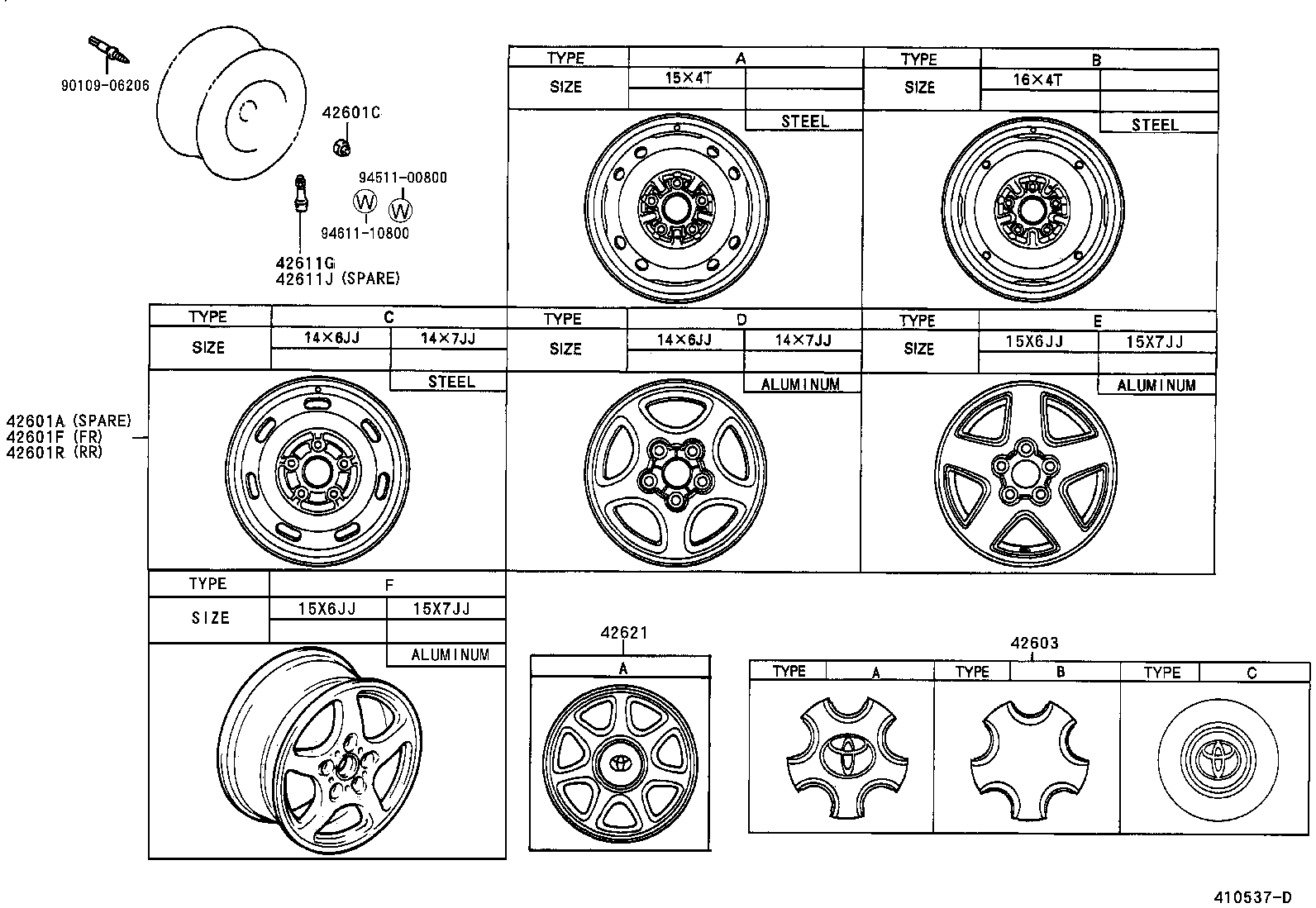

Click highlighted areas on diagram

diagram 42601A 42601C 42601F 42601R 42603 42611G 42611J 42621 9010906206 9451100800 9461110800
Part # Description Qty Price
42601A - WHEEL, DISC (FOR SPARE)
42611-17130

SW20

15X4T,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
42611-28210

SW20

16X4T,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
42601C - NUT, HUB (FOR AXLE)
90942-01007

SW20..G

 20
90942-01088

SW20

ﾘﾔ

 10
90942-01033

SW20

ﾌﾛﾝﾄ

 10
90942-01050

SW20..G

G ﾘﾐﾃﾂﾄﾞ OR ｱﾘ(ｱﾙﾐ ﾎｲ-ﾙ),ﾘﾔ

 10
90942-01084

SW20

ﾌﾛﾝﾄ

 10
90942-01050

SW20..GT

ﾘﾔ

 10
90942-01058

SW20..G

G ﾘﾐﾃﾂﾄﾞ OR ｱﾘ(ｱﾙﾐ ﾎｲ-ﾙ),ﾌﾛﾝﾄ

 10
90942-01058

SW20..GT

ﾌﾛﾝﾄ

 10
90942-01058

SW20

ﾘﾔ

 10
42601F - WHEEL, DISC (FOR FRONT)
42611-1709001

SW20..G

14X6JJ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,043 ,047 ,202 ,3J6 ,567 ,742

 2
42611-17200

SW20

15X6JJ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ

 2
42611-17110

SW20..G

14X6JJ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｱﾙﾐ ﾎｲ-ﾙ)

 2
42611-17160

SW20

15X6JJ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ

 2
42611-17110

SW20..GT

14X6JJ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 2
42611-17240

SW20

15X6JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ

 2
42611-1709001

SW20..G

14X6JJ,TYPE C,BLACK,043 ,202 ,3J6 ,567 ,742

 2
42601R - WHEEL, DISC (FOR REAR)
42611-17120

SW20..G

14X7JJ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｱﾙﾐ ﾎｲ-ﾙ)

 2
42611-17250

SW20

15X7JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ

 2
42611-1715001

SW20..G

14X7JJ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,043 ,202 ,3J6 ,567 ,742

 2
42611-17120

SW20..GT

14X7JJ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 2
42611-17210

SW20

15X7JJ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ

 2
42611-17170

SW20

15X7JJ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ

 2
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-17050

SW20

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 4
42603-17040

SW20

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 4
42603-17070

SW20

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 4
42603-17090

SW20

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

SW20..G

 4
90942-05004

SW20..GT

 4
90942-05009

SW20

 4
90942-05004

SW20..G

ｱﾘ(ｱﾙﾐ ﾎｲ-ﾙ)

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

SW20

 1
42621 - CAP, WHEEL
42621-17010

SW20..G

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 4
Common parts
90109-06206
94511-00800
94611-10800

(8912- )

Click highlighted areas on diagram

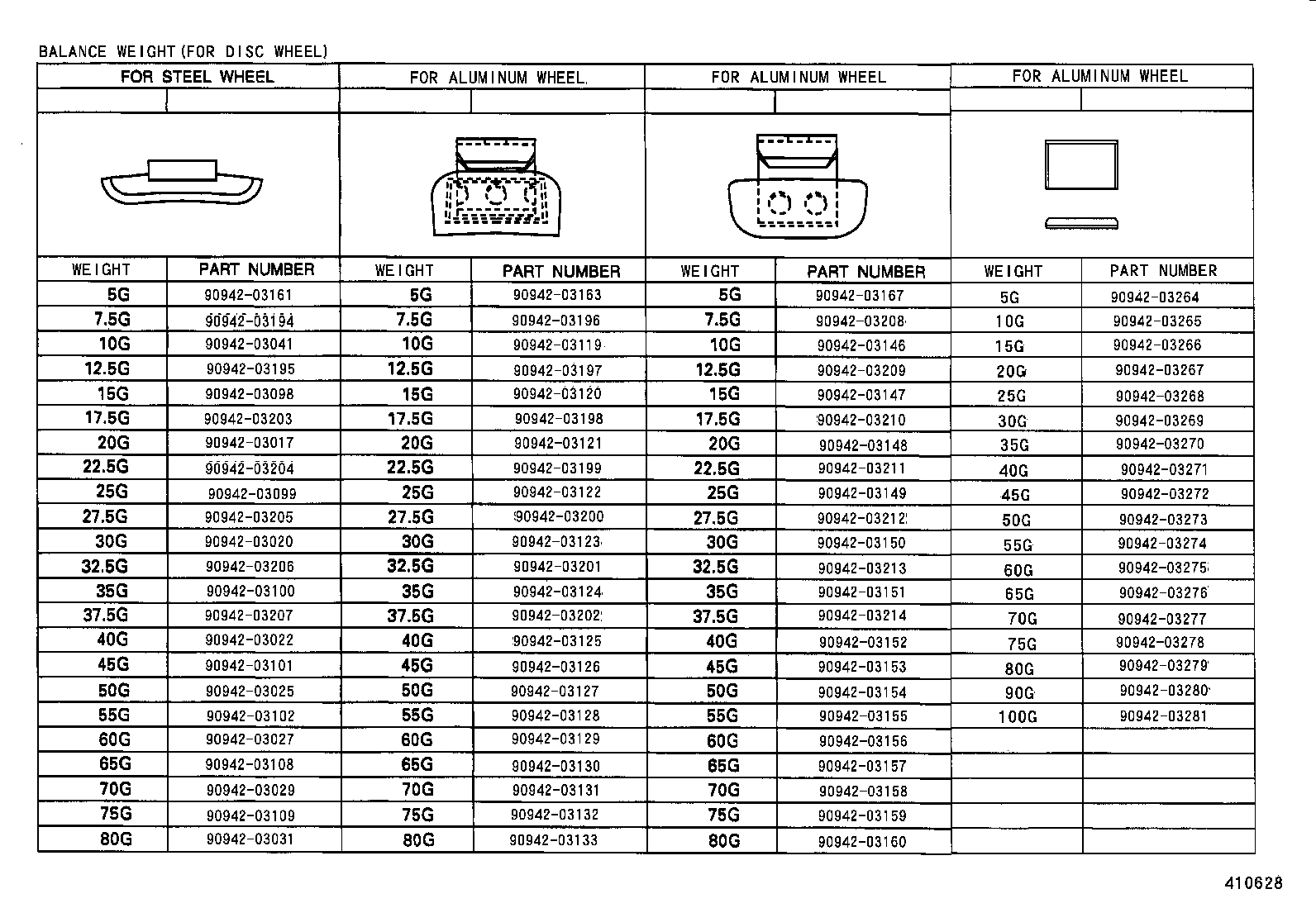

diagram 9094203017 9094203020 9094203022 9094203025 9094203027 9094203029 9094203031 9094203041 9094203098 9094203099 9094203100 9094203101 9094203102 9094203108 9094203109 9094203119 9094203120 9094203121 9094203122 9094203123 9094203124 9094203125 9094203126 9094203127 9094203128 9094203129 9094203130 9094203131 9094203132 9094203133 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203155 9094203156 9094203157 9094203158 9094203159 9094203160 9094203161 9094203163 9094203167 9094203194 9094203195 9094203196 9094203197 9094203198 9094203199 9094203200 9094203201 9094203202 9094203203 9094203204 9094203205 9094203206 9094203207 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 9094203264 9094203265 9094203266 9094203267 9094203268 9094203269 9094203270 9094203271 9094203272 9094203273 9094203274 9094203275 9094203276 9094203277 9094203278 9094203279 9094203280 9094203281
Part # Description Qty Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03029
90942-03031
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03109
90942-03119
90942-03120
90942-03121
90942-03122
90942-03123
90942-03124
90942-03125
90942-03126
90942-03127
90942-03128
90942-03129
90942-03130
90942-03131
90942-03132
90942-03133
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03157
90942-03158
90942-03159
90942-03160
90942-03161
90942-03163
90942-03167
90942-03194
90942-03195
90942-03196
90942-03197
90942-03198
90942-03199
90942-03200
90942-03201
90942-03202
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03266
90942-03267
90942-03268
90942-03269
90942-03270
90942-03271
90942-03272
90942-03273
90942-03274
90942-03275
90942-03276
90942-03277
90942-03278
90942-03279
90942-03280
90942-03281
