SW20-AJMQF (1989)

Toyota Mr2

Production Dec 1989 - Aug 1999
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )G

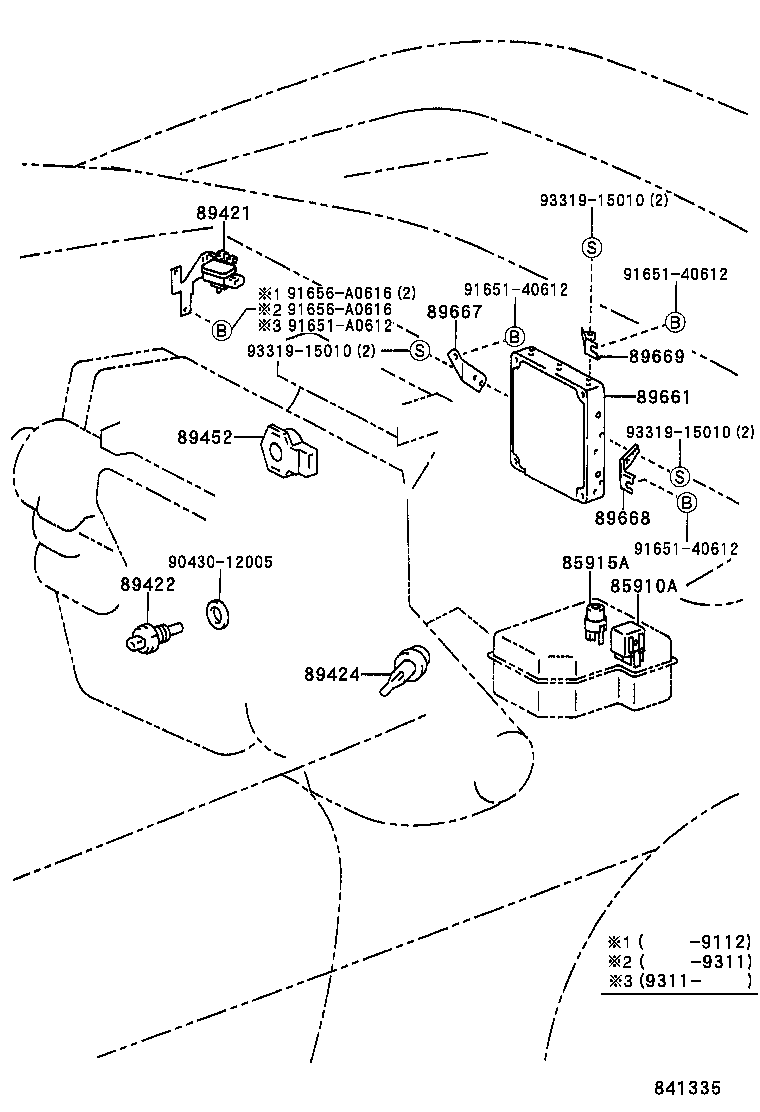

Click highlighted areas on diagram

diagram 85910A 85915A 89421 89422 89424 89452 89661 89667 89668 89669 9043012005 9165140612 9165140612 9165140612 91651A0612 91656A0616 91656A0616 9331915010 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-30050

SW20

 1
85915A - RELAY, MAIN
90987-02004

SW20

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-17040

SW20..G

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-22030

SW20..G

ﾏｰｸ 89422−22030 *369

 1
89422-35010

SW20

 1
89422-16010

SW20..G

ﾏｰｸ 89422−16010 *369

 1
89422-20010

SW20

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

SW20

 1
89424-12010

SW20..G

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-12040

SW20

 1
89452-20130

SW20..G

 1
89452-22090

SW20

 1
89661 - COMPUTER, ENGINE CONTROL
89661-17560

SW20..5F..G

 1
89661-17480

SW20..5F..G

 1
89661-17280

SW20..5F..G

 1
89661-17561

SW20..5F..G

 1
89661-17350

SW20..5F..G

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-17030

SW20

 1
89667-17040

SW20..G

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-17070

SW20..G

 1
89668-17060

SW20

 1
89668-17050

SW20

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-17060

SW20

 1
Common parts
90430-12005
91651-40612
91651-A0612
91656-A0616
93319-15010
