SW20-ACPQF (1989)

Toyota Mr2

Production Dec 1989 - Aug 1999
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

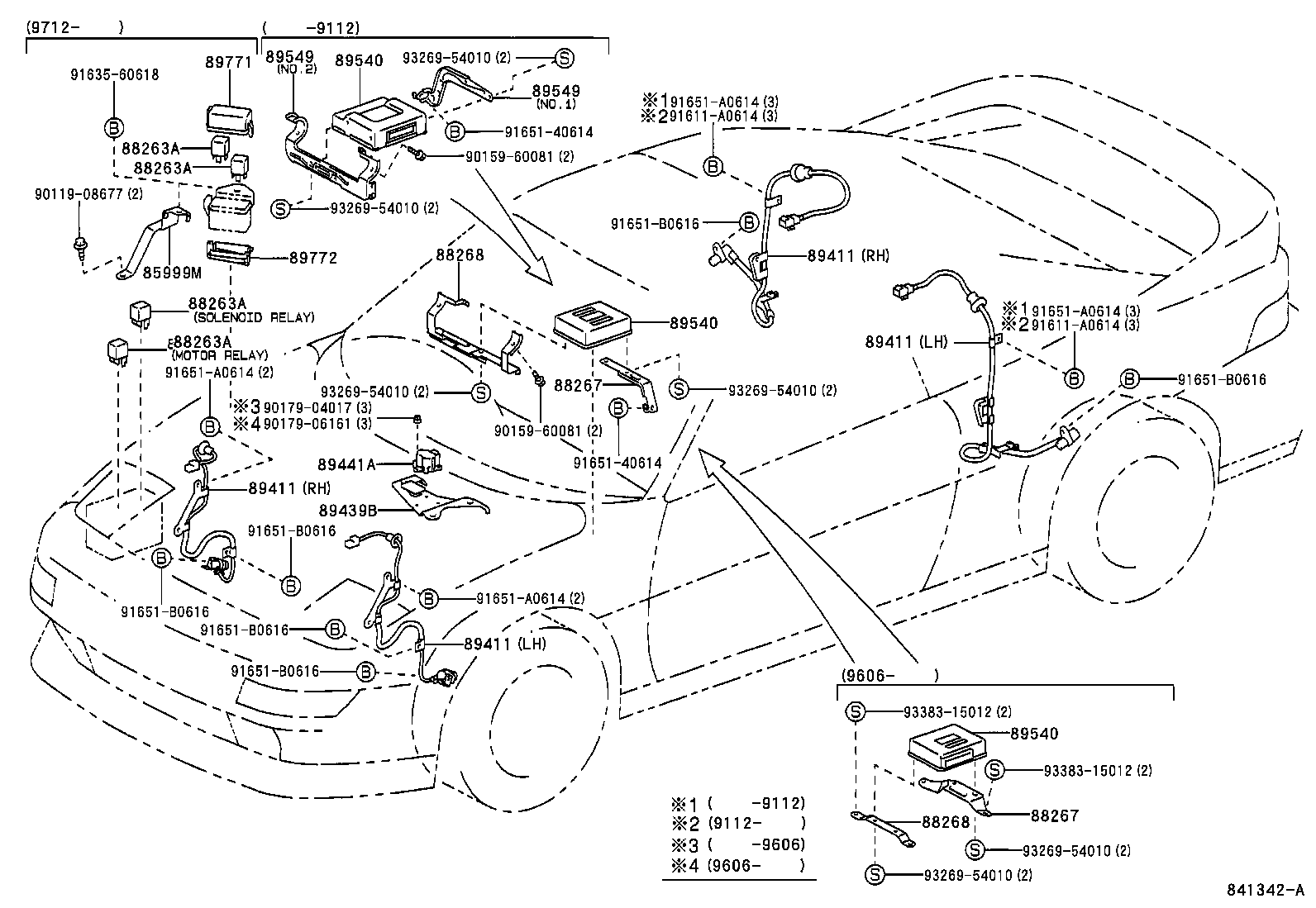

Click highlighted areas on diagram

diagram 85999M 88263A 88263A 88263A 88263A 88267 88267 88268 88268 89411 89411 89411 89411 89439B 89441A 89540 89540 89540 89549 89549 89771 89772 9011908677 9015960081 9015960081 9017904017 9017906161 91611A0614 91611A0614 9163560618 9165140614 9165140614 91651A0614 91651A0614 91651A0614 91651A0614 91651B0616 91651B0616 91651B0616 91651B0616 91651B0616 91651B0616 9326954010 9326954010 9326954010 9326954010 9326954010 9326954010 9338315012 9338315012
Part # Description Qty Price
85999M - BRACKET, RELAY
85999-17110

SW20

 1
88263A - RELAY, SKID CONTROL
88263-14120

SW20

SOLENOID

 1
88263-14110

SW20

MOTOR

 1
88263-24030

SW20

SOLENOID

 1
88263A - RELAY, SKID CONTROL
88263-14120

SW20

SOLENOID

 1
88263-14110

SW20

MOTOR

 1
88263-24030

SW20

SOLENOID

 1
88263A - RELAY, SKID CONTROL
88263-14120

SW20

SOLENOID

 1
88263-14110

SW20

MOTOR

 1
88263-24030

SW20

SOLENOID

 1
88263A - RELAY, SKID CONTROL
88263-14120

SW20

SOLENOID

 1
88263-14110

SW20

MOTOR

 1
88263-24030

SW20

SOLENOID

 1
88267 - BRACKET, SKID CONTROL COMPUTER, NO.1
88267-17060

SW20

 1
88267-17091

SW20

 1
88267-17090

SW20

 1
88267 - BRACKET, SKID CONTROL COMPUTER, NO.1
88267-17060

SW20

 1
88267-17091

SW20

 1
88267-17090

SW20

 1
88268 - BRACKET, SKID CONTROL COMPUTER, NO.2
88268-17110

SW20

 1
88268-17090

SW20

 1
88268-17060

SW20

 1
88268 - BRACKET, SKID CONTROL COMPUTER, NO.2
88268-17110

SW20

 1
88268-17090

SW20

 1
88268-17060

SW20

 1
89411 - SENSOR, SPEED
89546-17010

SW20

REAR LH

 1
89542-17020

SW20

FRONT RH

 1
89545-17010

SW20

REAR RH

 1
89542-17010

SW20

FRONT RH

 1
89543-17020

SW20

FRONT LH

 1
89543-17010

SW20

FRONT LH

 1
89411 - SENSOR, SPEED
89546-17010

SW20

REAR LH

 1
89542-17020

SW20

FRONT RH

 1
89545-17010

SW20

REAR RH

 1
89542-17010

SW20

FRONT RH

 1
89543-17020

SW20

FRONT LH

 1
89543-17010

SW20

FRONT LH

 1
89411 - SENSOR, SPEED
89546-17010

SW20

REAR LH

 1
89542-17020

SW20

FRONT RH

 1
89545-17010

SW20

REAR RH

 1
89542-17010

SW20

FRONT RH

 1
89543-17020

SW20

FRONT LH

 1
89543-17010

SW20

FRONT LH

 1
89411 - SENSOR, SPEED
89546-17010

SW20

REAR LH

 1
89542-17020

SW20

FRONT RH

 1
89545-17010

SW20

REAR RH

 1
89542-17010

SW20

FRONT RH

 1
89543-17020

SW20

FRONT LH

 1
89543-17010

SW20

FRONT LH

 1
89441A - SENSOR, DECELERATION
89440-17020

SW20

 1
89440-17030

SW20

 1
89540 - COMPUTER ASSY, SKID CONTROL
89541-17010

SW20

 1
89541-17050

SW20

 1
89541-17060

SW20

 1
89541-17020

SW20

 1
89541-17020

SW20..G

 1
89540 - COMPUTER ASSY, SKID CONTROL
89541-17010

SW20

 1
89541-17050

SW20

 1
89541-17060

SW20

 1
89541-17020

SW20

 1
89541-17020

SW20..G

 1
89540 - COMPUTER ASSY, SKID CONTROL
89541-17010

SW20

 1
89541-17050

SW20

 1
89541-17060

SW20

 1
89541-17020

SW20

 1
89541-17020

SW20..G

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88268-17040

SW20

NO.2

 1
88267-17040

SW20

NO.1

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88268-17040

SW20

NO.2

 1
88267-17040

SW20

NO.1

 1
89771 - COVER, ABS RELAY BLOCK, UPPER
89771-12010

SW20

 1
89772 - COVER, ABS RELAY BLOCK, LOWER
89772-12010

SW20

 1
Common parts
90119-08677
90159-60081
90179-04017
90179-06161
91611-A0614
91635-60618
91651-40614
91651-A0614
91651-B0616
93269-54010
93383-15012
