SW20-ACPQF (1989)
Toyota Mr2
Production
Dec 1989
-
Aug 1999
Engine
3SGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

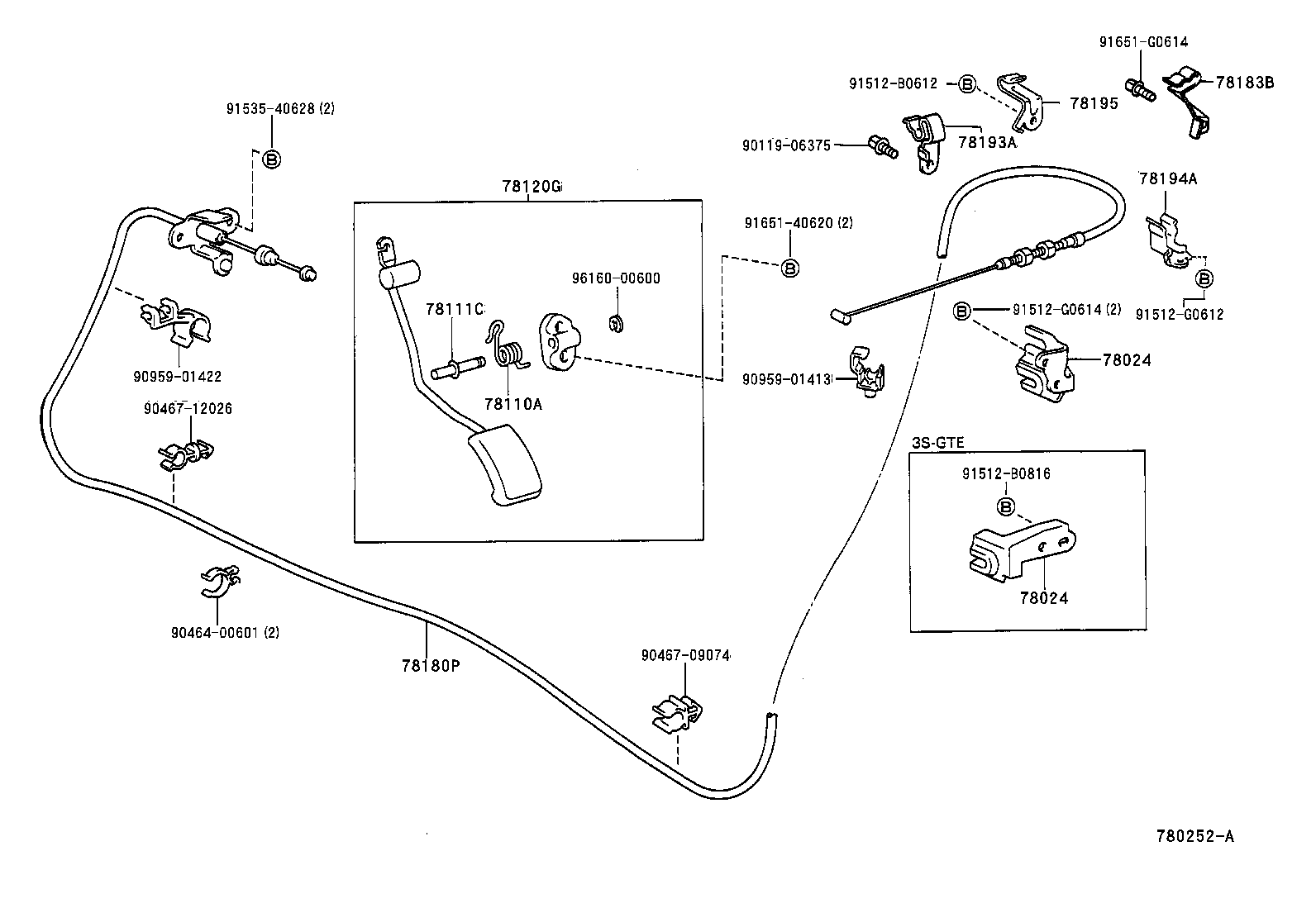

(9311- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-88561 |
SW20..G |
1 | ||
| 78024-88460 |
SW20..G |
1 | ||
| 78024-20120 |
SW20..4FC |
1 | ||
| 78024-20120 |
SW20..G |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-88561 |
SW20..G |
1 | ||
| 78024-88460 |
SW20..G |
1 | ||
| 78024-20120 |
SW20..4FC |
1 | ||
| 78024-20120 |
SW20..G |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18086 |
SW20 |
1 | ||
| 90959-03044 |
SW20 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-08116 |
SW20 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-17030 |
SW20 |
1 | ||
| 78120-17050 |
SW20 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-17140 |
SW20..G |
1 | ||
| 78180-17140 |
SW20..4FC |
1 | ||
| 78180-17190 |
SW20..G ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ(ｵ-ﾄﾄﾞﾗｲﾌﾞ)) |
1 | ||
| 78180-17350 |
SW20..G |
1 | ||
| 78180-17141 |
SW20..G |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-17050 |
SW20..G |
1 | ||
| 78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3 | ||||
| 78193-88560 |
SW20..4FC |
1 | ||
| 78194A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.4 | ||||
| 78194-88460 |
SW20..4FC |
1 | ||
| 78194-20080 |
SW20..4FC |
1 | ||
| 78195 - BRACKET, ACCELERATOR LINK | ||||
| 78195-88460 |
SW20..4FC |
1 | ||
| Common parts | ||||
| 90119-06375 | ||||
| 90464-00601 | ||||
| 90467-09074 | ||||
| 90467-12026 | ||||
| 90959-01413 | ||||
| 90959-01422 | ||||
| 91512-B0612 | ||||
| 91512-B0816 | ||||
| 91512-G0612 | ||||
| 91512-G0614 | ||||
| 91535-40628 | ||||
| 91651-40620 | ||||
| 91651-G0614 | ||||
| 96160-00600 | ||||

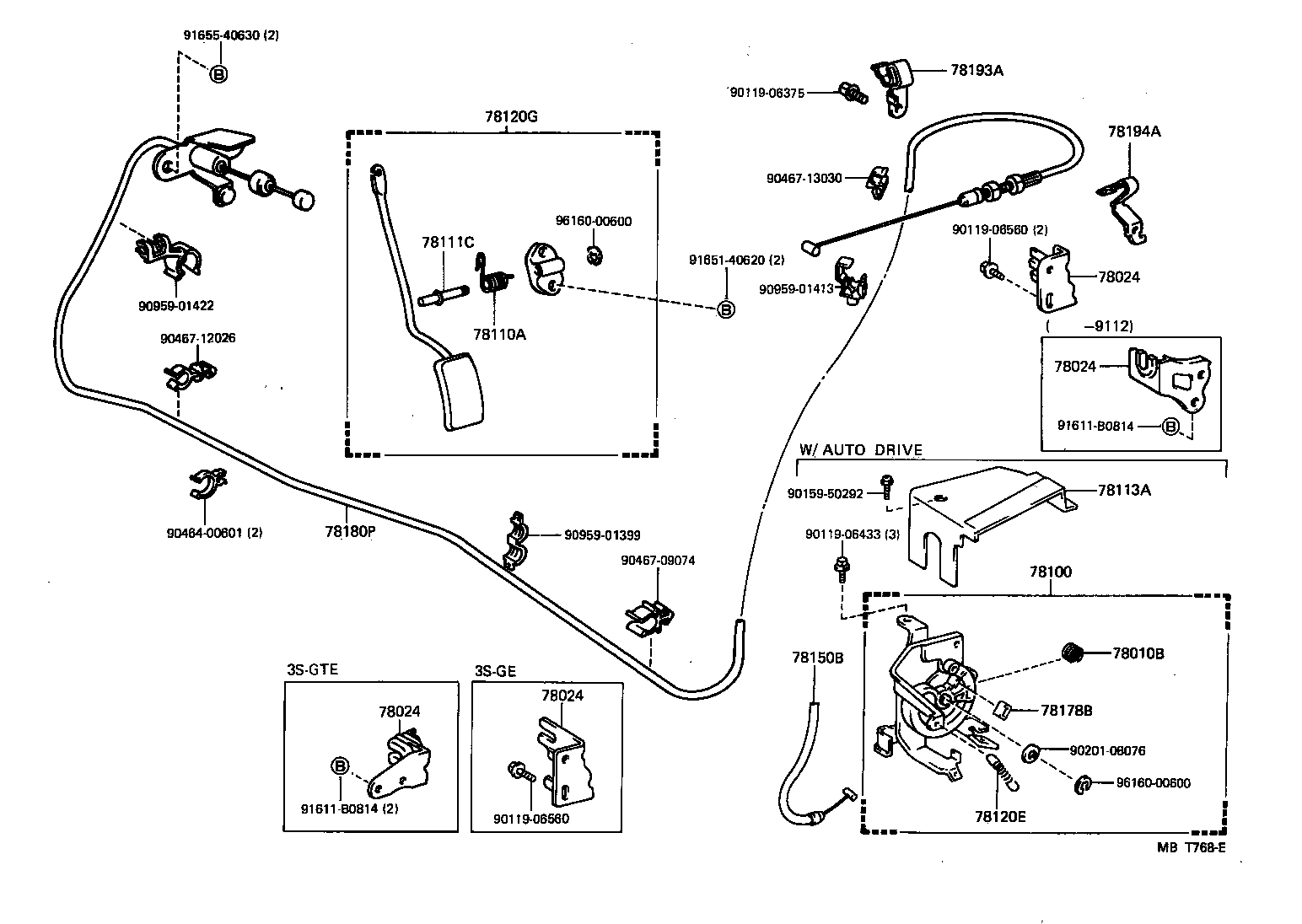

(8912-9311)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010B - SPRING, TORSION (FOR ACCELERATOR LINK) | ||||
| 90508-10063 |
SW20 |
1 | ||
| 90508-08027 |
SW20 |
1 | ||
| 90508-08030 |
SW20 |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-88460 |
SW20..G |
1 | ||
| 78024-20120 |
SW20..4FC |
1 | ||
| 78024-20120 |
SW20..G |
1 | ||
| 78024-88561 |
SW20..G |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-88460 |
SW20..G |
1 | ||
| 78024-20120 |
SW20..4FC |
1 | ||
| 78024-20120 |
SW20..G |
1 | ||
| 78024-88561 |
SW20..G |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-88561 |
SW20..G |
1 | ||
| 78024-88460 |
SW20..G |
1 | ||
| 78024-20120 |
SW20..4FC |
1 | ||
| 78024-20120 |
SW20..G |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-88460 |
SW20..G |
1 | ||
| 78024-20120 |
SW20..4FC |
1 | ||
| 78024-20120 |
SW20..G |
1 | ||
| 78024-88561 |
SW20..G |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-17060 |
SW20..4FC |
1 | ||
| 78100-17060 |
SW20..G |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18086 |
SW20 |
1 | ||
| 90959-03044 |
SW20 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-08116 |
SW20 |
1 | ||
| 78113A - COVER, AUTO DRIVE ACCELERATOR LINK | ||||
| 78113-17010 |
SW20..G |
1 | ||
| 78120E - SPRING, TENSION (FOR ACCELERATOR LINK ROD) | ||||
| 90506-08040 |
SW20 |
1 | ||
| 90506-08019 |
SW20 |
1 | ||
| 90506-08042 |
SW20 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-17030 |
SW20 |
1 | ||
| 78120-17050 |
SW20 |
1 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-17010 |
SW20..G |
1 | ||
| 78150-17010 |
SW20..4FC |
1 | ||
| 78178B - DAMPER, ACCEL CONTROL NO.4 ROD BRACKET | ||||
| 78178-14010 |
SW20 |
2 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-17140 |
SW20..G |
1 | ||
| 78180-17140 |
SW20..4FC |
1 | ||
| 78180-17190 |
SW20..G ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ(ｵ-ﾄﾄﾞﾗｲﾌﾞ)) |
1 | ||
| 78180-17350 |
SW20..G |
1 | ||
| 78180-17141 |
SW20..G |
1 | ||
| 78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3 | ||||
| 78193-88560 |
SW20..4FC |
1 | ||
| 78194A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.4 | ||||
| 78194-88460 |
SW20..4FC |
1 | ||
| 78194-20080 |
SW20..4FC |
1 | ||
| Common parts | ||||
| 90119-06375 | ||||
| 90119-06433 | ||||
| 90119-06560 | ||||
| 90159-50292 | ||||
| 90201-08076 | ||||
| 90464-00601 | ||||
| 90467-09074 | ||||
| 90467-12026 | ||||
| 90467-13030 | ||||
| 90959-01399 | ||||
| 90959-01413 | ||||
| 90959-01422 | ||||
| 91611-B0814 | ||||
| 91651-40620 | ||||
| 91655-40630 | ||||
| 96160-00600 | ||||
