SW20-ACPQF (1989)

Toyota Mr2

Production Dec 1989 - Aug 1999
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )CP

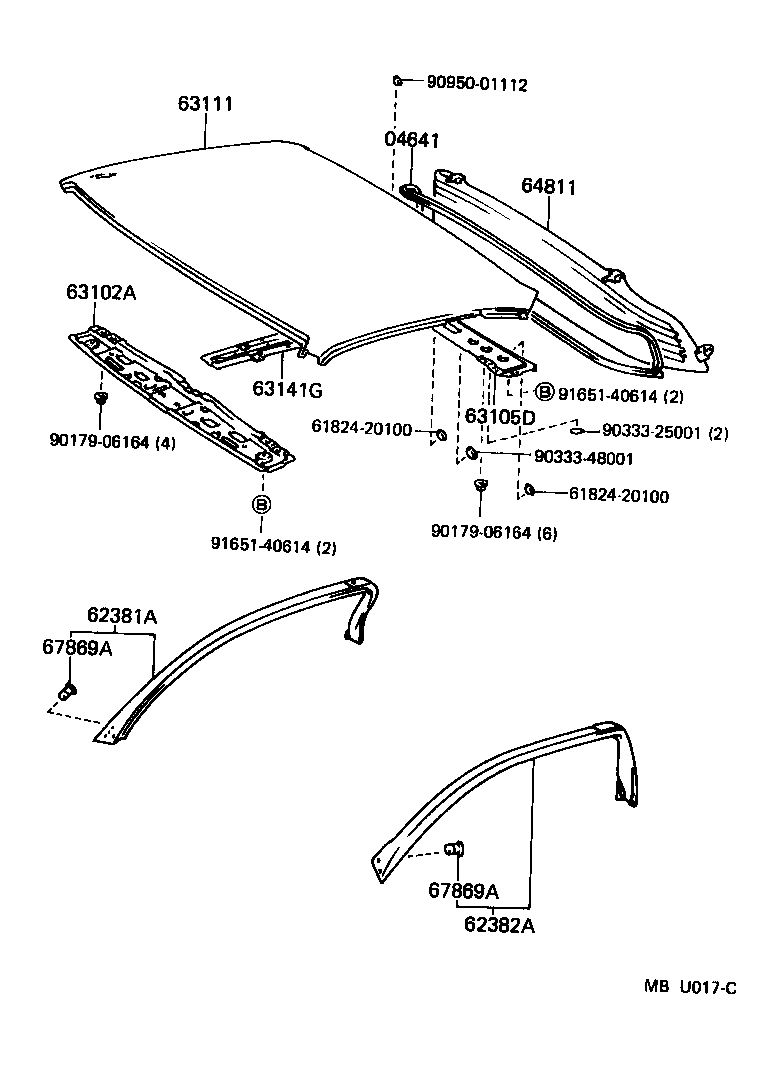

Click highlighted areas on diagram

diagram 04641 6182420100 6182420100 62381A 62382A 63102A 63105D 63111 63141G 64811 67869A 67869A 9017906164 9017906164 9033325001 9033348001 9095001112 9165140614 9165140614
Part # Description Qty Price
04641 - DAM KIT, BACK WINDOW GLASS
04562-12010

SW20

 1
62381A - WEATHERSTRIP, ROOF SIDE RAIL, RH
62381-17041

SW20..CP

 1
62381-17040

SW20..CP

 1
62381-17042

SW20..CP

 1
62382A - WEATHERSTRIP, ROOF SIDE RAIL, LH
62382-17041

SW20..CP

 1
62382-17042

SW20..CP

 1
62382-17040

SW20..CP

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-17020

SW20..CP

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-17010

SW20

 1
63111 - PANEL, ROOF
63111-17080

SW20..CP

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-17030

SW20..CP

 1
64811 - GLASS, BACK WINDOW
64811-17100

SW20..G

*EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ｼｴ-ﾄﾞ)

 1
64811-17040

SW20..G

*EHTT,厚さ=3.5,ﾌﾞﾙｰ

 1
64811-17180

SW20

*EHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ｷ-ﾚｽ ｴﾝﾄﾘ-)

 1
64811-17131

SW20

*EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ｷ-ﾚｽ ｴﾝﾄﾘ-)

 1
64811-17101

SW20

*EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
64811-17120

SW20..G

*EHTT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(ｷ-ﾚｽ ｴﾝﾄﾘ-)

 1
64811-17130

SW20

*EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ｷ-ﾚｽ ｴﾝﾄﾘ-)

 1
64811-17160

SW20

*EHTT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
64811-17100

SW20

*EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
67869A - CLIP(FOR REMOVABLE ROOF WEATHERSTRIP)
67869-20030

SW20

 8
67869A - CLIP(FOR REMOVABLE ROOF WEATHERSTRIP)
67869-20030

SW20

 8
Common parts
61824-20100
90179-06164
90333-25001
90333-48001
90950-01112
91651-40614
