SW20-ACPQF (1989)

Toyota Mr2

Production Dec 1989 - Aug 1999
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

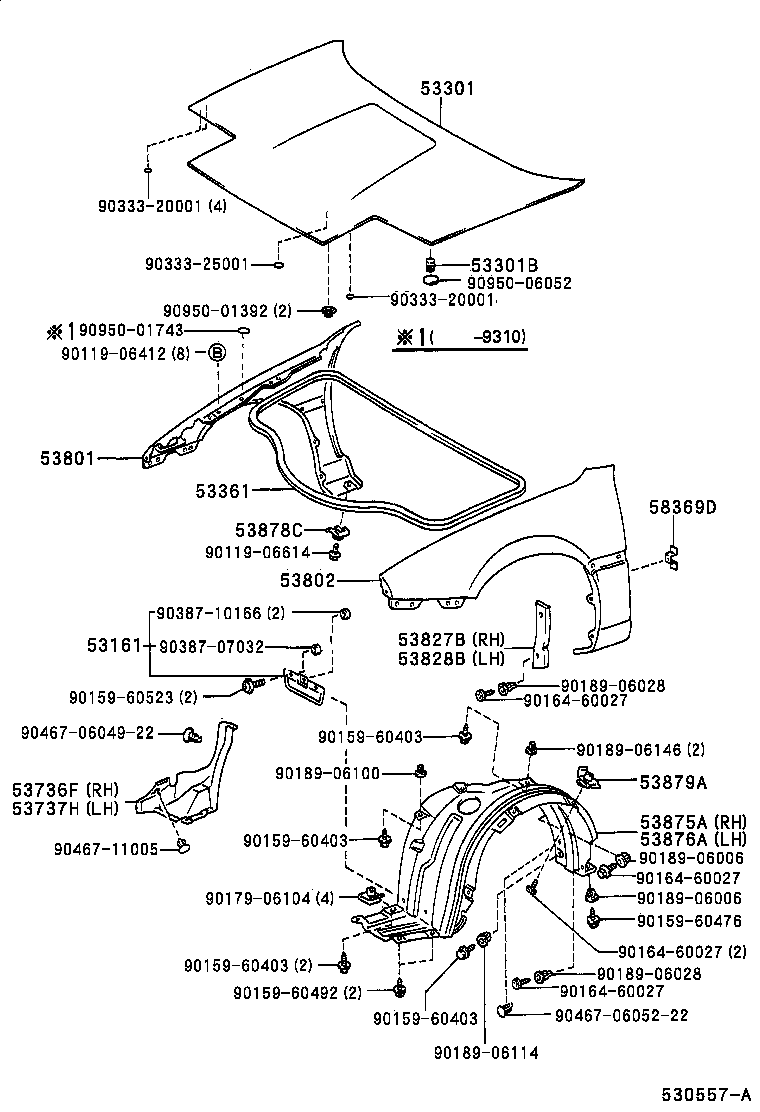

Click highlighted areas on diagram

diagram 53161 53301 53301B 53361 53736F 53737H 53801 53802 53827B 53828B 53875A 53876A 53878C 53879A 58369D 9011906412 9011906614 9015960403 9015960403 9015960403 9015960403 9015960476 9015960492 9015960523 9016460027 9016460027 9016460027 9016460027 9017906104 9018906006 9018906006 9018906028 9018906028 9018906100 9018906114 9018906146 9033320001 9033320001 9033325001 9038707032 9038710166 904670604922 904670605222 9046711005 9095001392 9095001743 9095006052
Part # Description Qty Price
53161 - DEFLECTOR, FRONT BUMPER STONE
53161-17010

SW20

 2
53301 - HOOD SUB-ASSY
53301-17060

SW20

 1
53301B - CUSHION, HOOD BUMPER
90541-15111

SW20

 4
53361 - WEATHERSTRIP, HOOD
53361-17010

SW20

 1
53736F - SEAL, FRONT FENDER APRON, RH
53736-17010

SW20

 1
53737H - SEAL, FRONT FENDER APRON, LH
53737-17010

SW20

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-17090

SW20

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53801-17110

SW20

 1
53801-17100

SW20

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-17090

SW20

 1
53802-17080

SW20

 1
53802-17070

SW20

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53827B - PROTECTOR, FRONT FENDER SIDE PANEL
53827-17020

SW20

 1
53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-17020

SW20

 1
53875A - LINER, FRONT FENDER, RH
53875-17030

SW20

 1
53805-17010

SW20

 1
53875-17020

SW20

 1
53876A - LINER, FRONT FENDER, LH
53876-17030

SW20

 1
53806-17010

SW20

 1
53876-17020

SW20

 1
53878C - SPACER, FRONT FENDER
53878-14020

SW20

 2
53879A - RETAINER, FRONT FENDER LINER
53879-14010

SW20

 4
58369D - BRACKET, FUEL TUBE, NO.3
58369-32010

SW20

 2
58369-32010

SW20

 1
Common parts
90119-06412
90119-06614
90159-60403
90159-60476
90159-60492
90159-60523
90164-60027
90179-06104
90189-06006
90189-06028
90189-06100
90189-06114
90189-06146
90333-20001
90333-25001
90387-07032
90387-10166
90467-0604922
90467-0605222
90467-11005
90950-01392
90950-01743
90950-06052
