SW20-ACPQF (1989)
Toyota Mr2
Production
Dec 1989
-
Aug 1999
Engine
3SGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

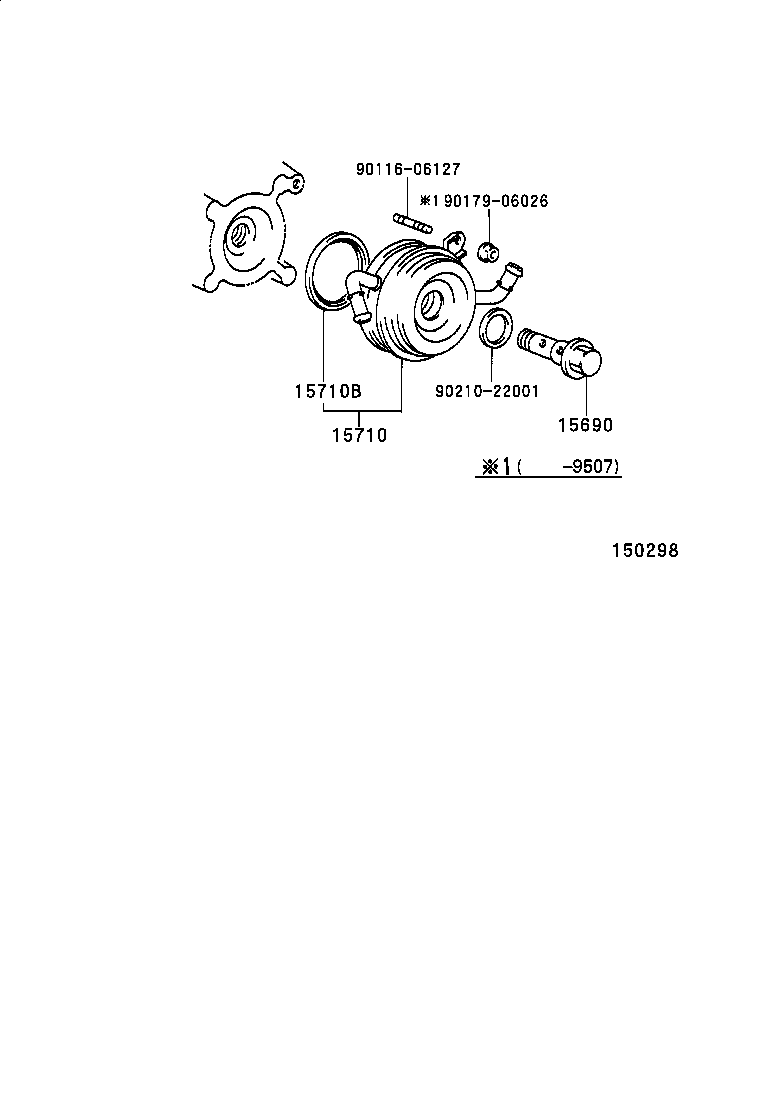

(9712- )3SGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15690 - VALVE ASSY, OIL COOLER RELIEF | ||||
| 15690-88470 |
3SGE..SW20 |
1 | ||
| 15695-88500 |
3SGE..SW20 |
1 | ||
| 15695-62010 |
3SGE..SW20 |
1 | ||
| 15690-88360 |
3SGE..SW20 |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-88470 |
3SGE..SW20 |
1 | ||
| 15710-88471 |
3SGE..SW20 |
1 | ||
| 15700-88360 |
3SGE..SW20 |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-58002 |
3SG#..SW20 |
1 | ||
| 90301-56005 |
3SG#..SW20 |
1 | ||
| 90301-52002 |
3SGE..SW20 |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90210-22001 | ||||

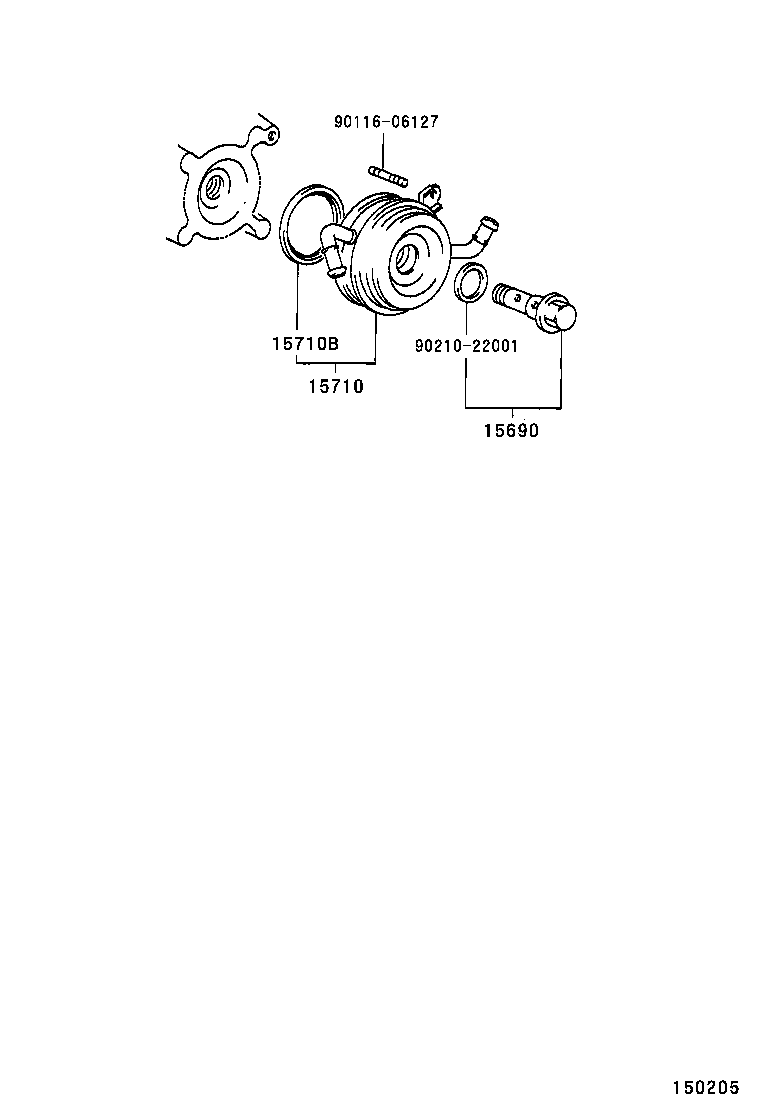

(9311-9712)3SGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15690 - VALVE ASSY, OIL COOLER RELIEF | ||||
| 15690-88470 |
3SGE..SW20 |
1 | ||
| 15695-88500 |
3SGE..SW20 |
1 | ||
| 15695-62010 |
3SGE..SW20 |
1 | ||
| 15690-88360 |
3SGE..SW20 |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-88470 |
3SGE..SW20 |
1 | ||
| 15710-88471 |
3SGE..SW20 |
1 | ||
| 15700-88360 |
3SGE..SW20 |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-58002 |
3SG#..SW20 |
1 | ||
| 90301-56005 |
3SG#..SW20 |
1 | ||
| 90301-52002 |
3SGE..SW20 |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90179-06026 | ||||
| 90210-22001 | ||||

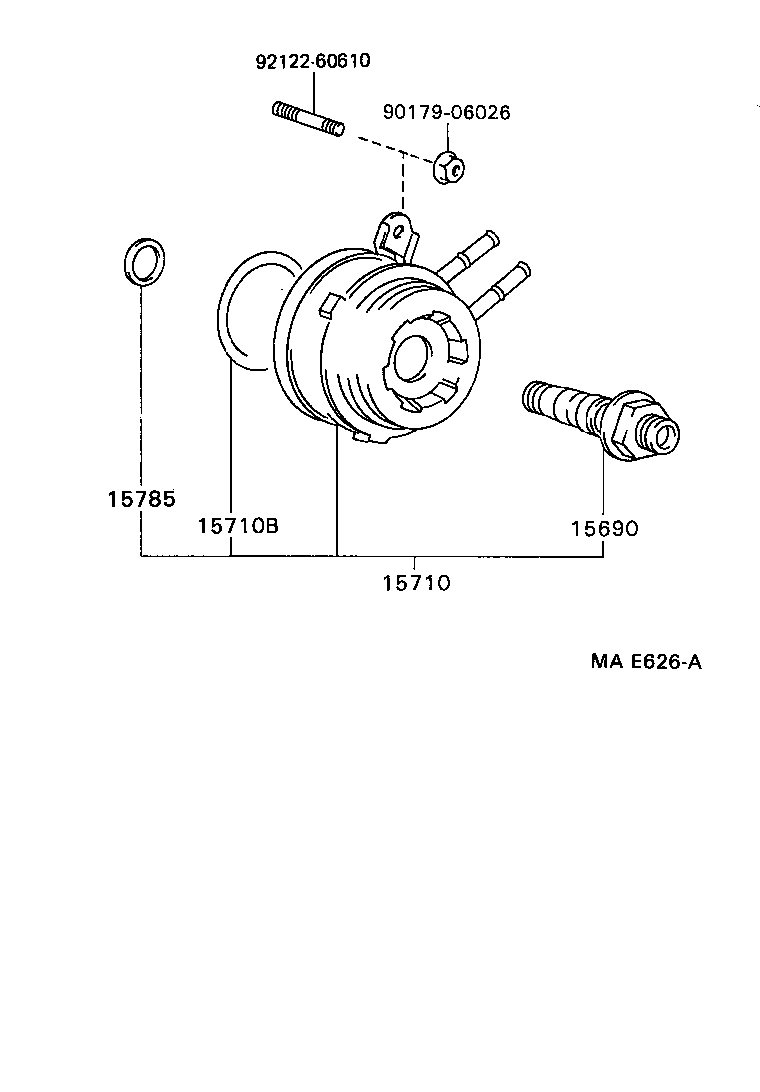

(8912-9311)3SGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15690 - VALVE ASSY, OIL COOLER RELIEF | ||||
| 15690-88470 |
3SGE..SW20 |
1 | ||
| 15695-88500 |
3SGE..SW20 |
1 | ||
| 15695-62010 |
3SGE..SW20 |
1 | ||
| 15690-88360 |
3SGE..SW20 |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-88470 |
3SGE..SW20 |
1 | ||
| 15710-88471 |
3SGE..SW20 |
1 | ||
| 15700-88360 |
3SGE..SW20 |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-58002 |
3SG#..SW20 |
1 | ||
| 90301-56005 |
3SG#..SW20 |
1 | ||
| 90301-52002 |
3SGE..SW20 |
1 | ||
| 15785 - GASKET, OIL COOLER | ||||
| 15785-35010 |
3SGE..SW20 |
1 | ||
| Common parts | ||||
| 90179-06026 | ||||
| 92122-60610 | ||||
