SW20-ACPQF (1989)

Toyota Mr2

Production Dec 1989 - Aug 1999
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

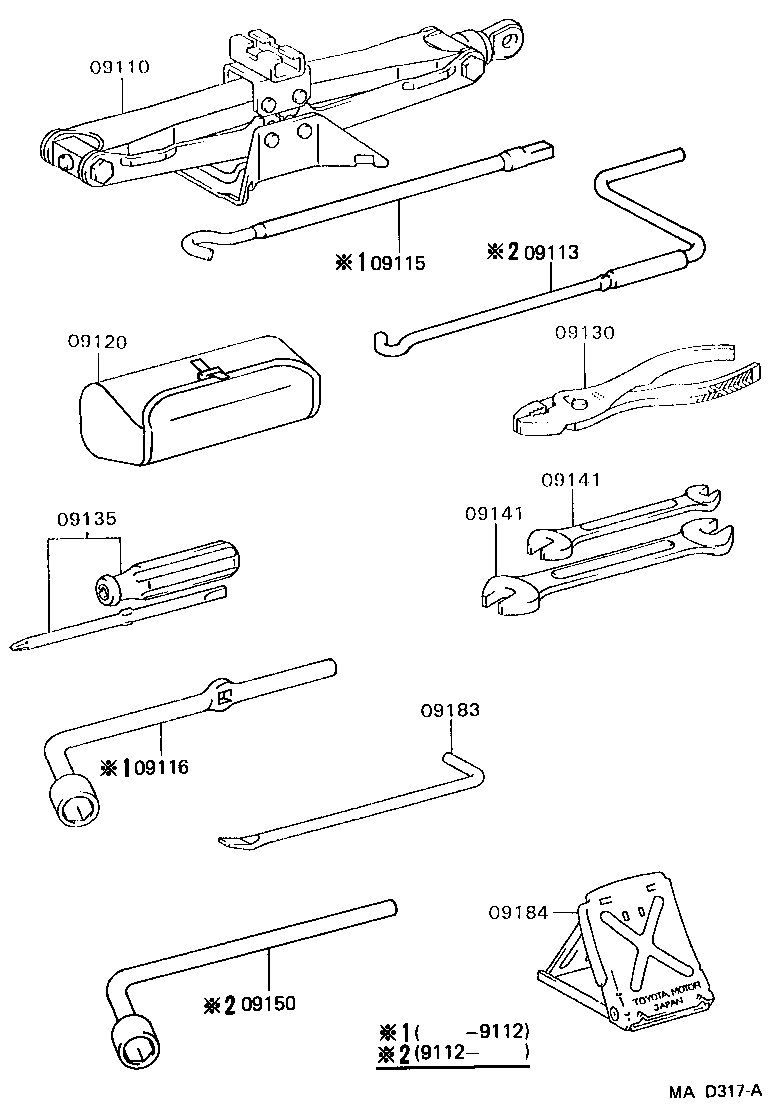

Click highlighted areas on diagram

diagram 09110 09113 09115 09116 09120 09130 09135 09141 09141 09150 09183 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-17020

SW20

 1
09110-17020

SW20

 1
09111-24030

SW20

 1
09111-24030

SW20

 1
09113 - HANDLE, JACK
09113-32010

SW20

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-16030

SW20

 1
09116 - LEVER, JACK HANDLE
09116-16010

SW20

 1
09120 - BAG, TOOL
09120-17020

SW20

 1
09130 - PLIERS
99913-11500

SW20

 1
09135 - DRIVER, SCREW
99915-10700

SW20

 1
09141 - SPANNER
99914-11214

SW20

12 X 14

 1
99914-10810

SW20

8 X 10

 1
09141 - SPANNER
99914-11214

SW20

12 X 14

 1
99914-10810

SW20

8 X 10

 1
09150 - WRENCH, HUB NUT BOX
09150-26010

SW20

 1
09183 - WRENCH, WHEEL CAP
09183-00010

SW20

 1
09184 - STOPPER, WHEEL
09184-00010

SW20

 1
