SW20-ACMZZ (1989)
Toyota Mr2
Production
Dec 1989
-
Aug 1999
Engine
3SGTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

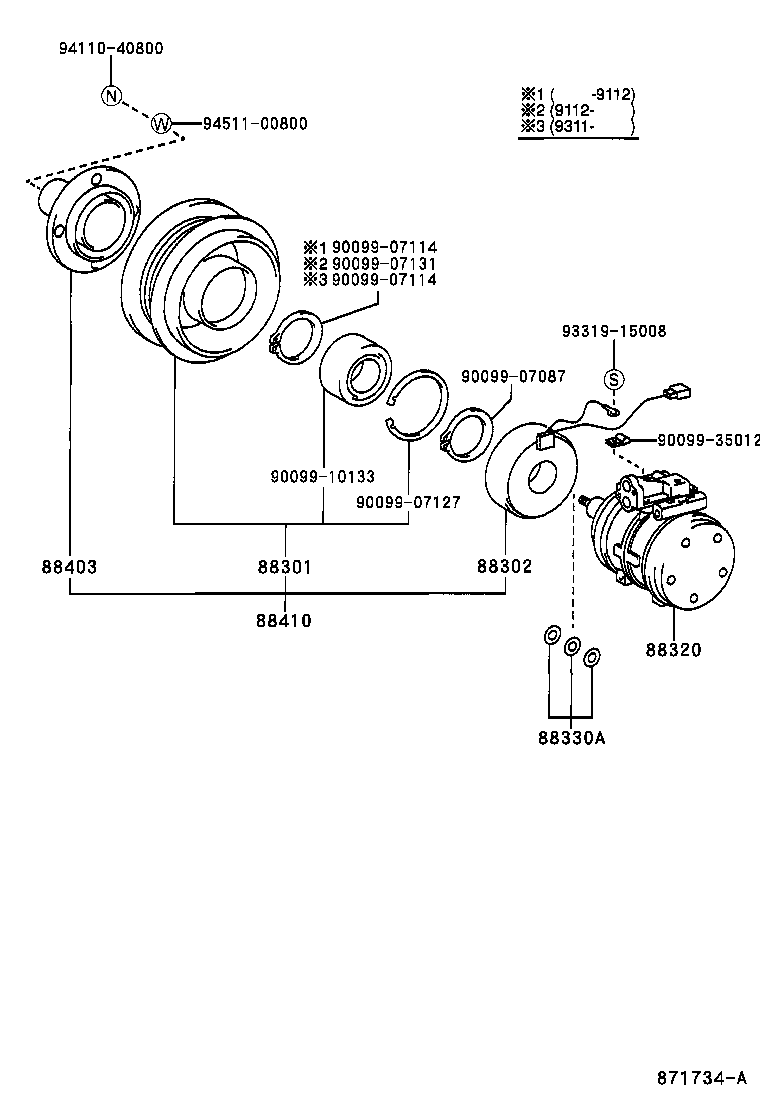

ILLUST NO. 1 OF 2(8912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-17020 |
SW20 |
1 | ||
| 88412-17010 |
SW20 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-17070 |
SW20 |
1 | ||
| 88411-17060 |
SW20 |
1 | ||
| 88411-17080 |
SW20 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-17091 |
SW20 |
1 | ||
| 88320-17090 |
SW20 |
1 | ||
| 88320-17100 |
SW20 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
SW20 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-12030 |
SW20 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-17080 |
SW20 |
1 | ||
| 88410-17070 |
SW20 |
1 | ||
| 88410-17060 |
SW20 |
1 | ||
| Common parts | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 90099-07127 | ||||
| 90099-07131 | ||||
| 90099-10133 | ||||
| 90099-35012 | ||||
| 93319-15008 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

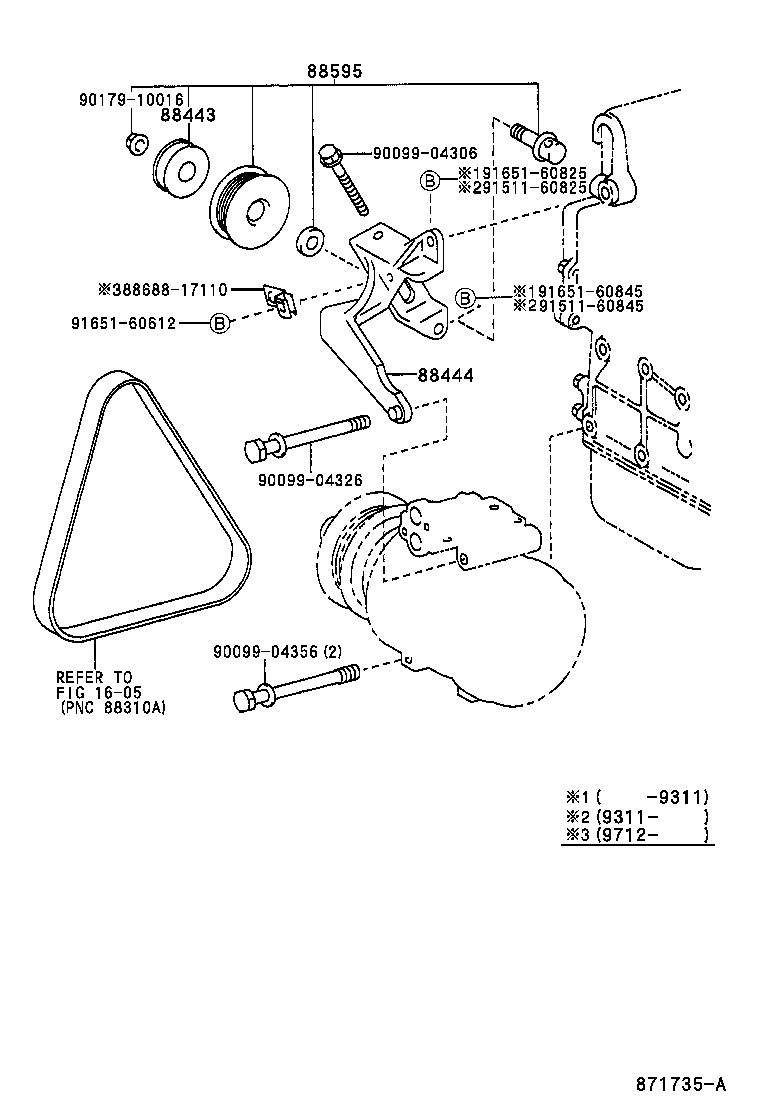

ILLUST NO. 2 OF 2(8912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88443 - COLLAR, IDLE PULLEY | ||||
| 88443-36010 |
SW20 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-17030 |
SW20 |
1 | ||
| 88444-17020 |
SW20 |
1 | ||
| 88444-17040 |
SW20 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-26100 |
SW20 |
1 | ||
| 88440-17010 |
SW20 |
1 | ||
| Common parts | ||||
| 88688-17110 | ||||
| 90099-04306 | ||||
| 90099-04326 | ||||
| 90099-04356 | ||||
| 90179-10016 | ||||
| 91511-60825 | ||||
| 91511-60845 | ||||
| 91651-60612 | ||||
| 91651-60825 | ||||
| 91651-60845 | ||||
| Linked diagrams | ||||
| 1605 | ||||
