AW11-WJPQF (1986)
Toyota Mr2
(8608- )TBR

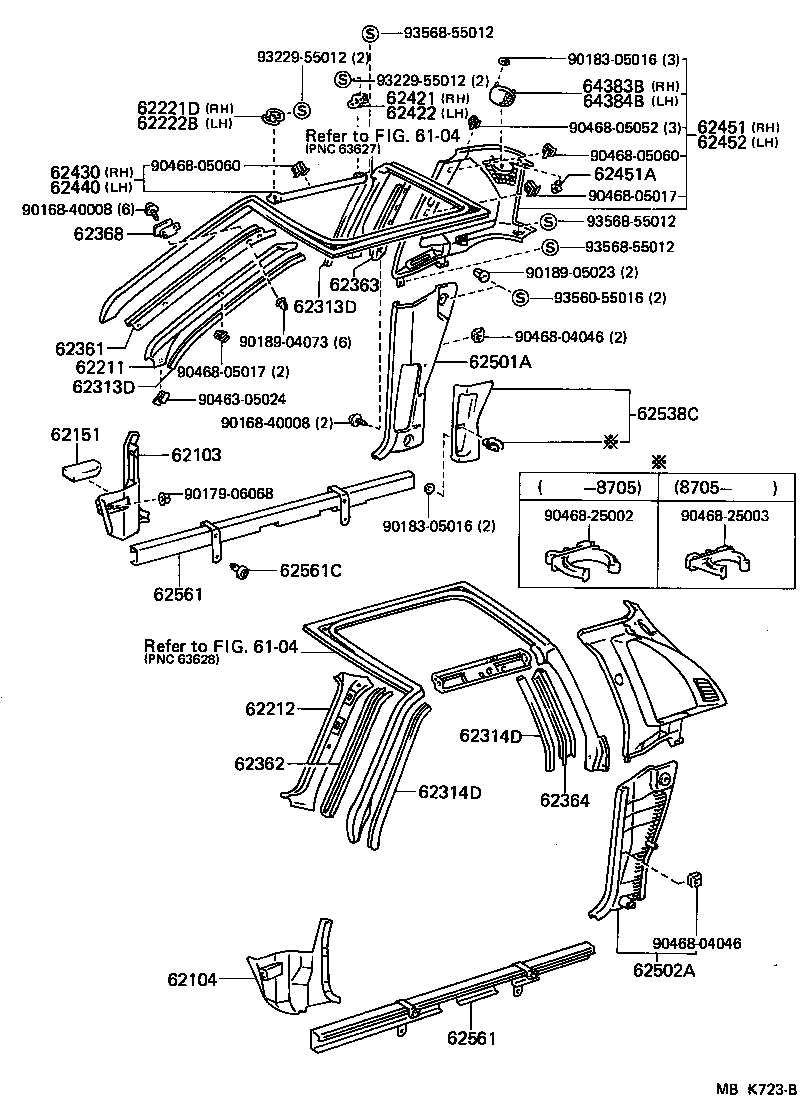

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH | ||||
| 62111-1701004 |
AW1# BLUE,DARK BLUE |
1 | ||
| 62111-1701001 |
AW1# BLACK,BLACK |
1 | ||
| 62111-1701001 |
AW1# BLACK,TRIM2# |
1 | ||
| 62111-1701011 |
AW1# BLACK,TRIM2# |
1 | ||
| 62111-1701004 |
AW1# DARK BLUE,TRIM8# |
1 | ||
| 62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH | ||||
| 62112-1701001 |
AW1# BLACK,TRIM2# |
1 | ||
| 62112-1701001 |
AW1# BLACK,BLACK |
1 | ||
| 62112-1701004 |
AW1# BLUE,DARK BLUE |
1 | ||
| 62112-1701004 |
AW1# DARK BLUE,TRIM8# |
1 | ||
| 62112-1701011 |
AW1# BLACK,TRIM2# |
1 | ||
| 62151 - PAD, COWL SIDE SILENCER, NO.1 | ||||
| 62151-17020 |
AW1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-1701004 |
AW11..TBR BLUE,DARK BLUE |
1 | ||
| 62211-1701004 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62211-1701001 |
AW11..TBR BLACK,BLACK |
1 | ||
| 62211-1701104 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62211-1701101 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62211-1701111 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62211-1701001 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-1701001 |
AW11..TBR BLACK,BLACK |
1 | ||
| 62212-1701101 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62212-1701001 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62212-1701104 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62212-1701111 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62212-1701004 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62212-1701004 |
AW11..TBR BLUE,DARK BLUE |
1 | ||
| 62221D - COVER, FRONT PILLAR GARNISH, RH | ||||
| 62221-1701101 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62221-1701004 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62221-1701004 |
AW11..TBR BLUE,DARK BLUE |
1 | ||
| 62221-1701001 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62221-1701001 |
AW11..TBR BLACK,BLACK |
1 | ||
| 62221-1701111 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62221-1701104 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62222B - COVER, FRONT PILLAR GARNISH, LH | ||||
| 62222-1701004 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62222-1701111 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62222-1701004 |
AW11..TBR BLUE,DARK BLUE |
1 | ||
| 62222-1701104 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62222-1701101 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62222-1701001 |
AW11..TBR BLACK,BLACK |
1 | ||
| 62222-1701001 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62314-1701001 |
AW11..TBR L=455,BLACK,BLACK |
1 | ||
| 62313-1701004 |
AW11..TBR L=990,BLUE,DARK BLUE |
1 | ||
| 62313-1701004 |
AW11..TBR DARK BLUE,TRIM8#,L=990 |
1 | ||
| 62313-1701001 |
AW11..TBR BLACK,TRIM2#,L=990 |
1 | ||
| 62313-1701011 |
AW11..TBR BLACK,TRIM2#,L=990 |
1 | ||
| 62313-1701001 |
AW11..TBR L=990,BLACK,BLACK |
1 | ||
| 62314-1701001 |
AW11..TBR BLACK,TRIM2#,L=455 |
1 | ||
| 62314-1701004 |
AW11..TBR L=450,BLUE,DARK BLUE |
1 | ||
| 62314-1701004 |
AW11..TBR DARK BLUE,TRIM8#,L=455 |
1 | ||
| 62314-1701011 |
AW11..TBR BLACK,TRIM2#,L=455 |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62314-1701001 |
AW11..TBR L=455,BLACK,BLACK |
1 | ||
| 62313-1701004 |
AW11..TBR L=990,BLUE,DARK BLUE |
1 | ||
| 62313-1701004 |
AW11..TBR DARK BLUE,TRIM8#,L=990 |
1 | ||
| 62313-1701001 |
AW11..TBR BLACK,TRIM2#,L=990 |
1 | ||
| 62313-1701011 |
AW11..TBR BLACK,TRIM2#,L=990 |
1 | ||
| 62313-1701001 |
AW11..TBR L=990,BLACK,BLACK |
1 | ||
| 62314-1701001 |
AW11..TBR BLACK,TRIM2#,L=455 |
1 | ||
| 62314-1701004 |
AW11..TBR L=450,BLUE,DARK BLUE |
1 | ||
| 62314-1701004 |
AW11..TBR DARK BLUE,TRIM8#,L=455 |
1 | ||
| 62314-1701011 |
AW11..TBR BLACK,TRIM2#,L=455 |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-1701004 |
AW11..TBR DARK BLUE,TRIM8#,L=990 |
1 | ||
| 62314-1701001 |
AW11..TBR BLACK,TRIM2#,L=455 |
1 | ||
| 62313-1701004 |
AW11..TBR L=990,BLUE,DARK BLUE |
1 | ||
| 62313-1701001 |
AW11..TBR BLACK,TRIM2#,L=990 |
1 | ||
| 62314-1701011 |
AW11..TBR BLACK,TRIM2#,L=455 |
1 | ||
| 62314-1701004 |
AW11..TBR L=455,BLUE,DARK BLUE |
1 | ||
| 62313-1701001 |
AW11..TBR L=990,BLACK,BLACK |
1 | ||
| 62314-1701001 |
AW11..TBR L=455,BLACK,BLACK |
1 | ||
| 62313-1701011 |
AW11..TBR BLACK,TRIM2#,L=990 |
1 | ||
| 62314-1701004 |
AW11..TBR DARK BLUE,TRIM8#,L=455 |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-1701004 |
AW11..TBR DARK BLUE,TRIM8#,L=990 |
1 | ||
| 62314-1701001 |
AW11..TBR BLACK,TRIM2#,L=455 |
1 | ||
| 62313-1701004 |
AW11..TBR L=990,BLUE,DARK BLUE |
1 | ||
| 62313-1701001 |
AW11..TBR BLACK,TRIM2#,L=990 |
1 | ||
| 62314-1701011 |
AW11..TBR BLACK,TRIM2#,L=455 |
1 | ||
| 62314-1701004 |
AW11..TBR L=455,BLUE,DARK BLUE |
1 | ||
| 62313-1701001 |
AW11..TBR L=990,BLACK,BLACK |
1 | ||
| 62314-1701001 |
AW11..TBR L=455,BLACK,BLACK |
1 | ||
| 62313-1701011 |
AW11..TBR BLACK,TRIM2#,L=990 |
1 | ||
| 62314-1701004 |
AW11..TBR DARK BLUE,TRIM8#,L=455 |
1 | ||
| 62361 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH | ||||
| 62051-17030 |
AW11..TBR |
1 | ||
| 62362 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH | ||||
| 62052-17030 |
AW11..TBR |
1 | ||
| 62363 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR RH | ||||
| 62371-17020 |
AW11..TBR |
1 | ||
| 62364 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR LH | ||||
| 62372-17020 |
AW11..TBR |
1 | ||
| 62368 - CLIP, DOOR WINDOW GLASS, NO.2 | ||||
| 62376-17010 |
AW1# |
2 | ||
| 62421 - COVER, CENTER PILLAR GARNISH, RH | ||||
| 62421-1701004 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62421-1701101 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62421-1701111 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62421-1701104 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62421-1701004 |
AW11..TBR BLUE,DARK BLUE |
1 | ||
| 62421-1701001 |
AW11..TBR BLACK,BLACK |
1 | ||
| 62422 - COVER, CENTER PILLAR GARNISH, LH | ||||
| 62422-1701101 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62422-1701104 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62422-1701001 |
AW11..TBR BLACK,BLACK |
1 | ||
| 62422-1701004 |
AW11..TBR BLUE,DARK BLUE |
1 | ||
| 62422-1701111 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62422-1701004 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62430 - GARNISH ASSY, ROOF SIDE RAIL, RH | ||||
| 62431-1701001 |
AW11..TBR BLACK,BLACK |
1 | ||
| 62431-1701004 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62431-1701111 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62431-1701001 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62431-1701101 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62431-1701004 |
AW11..TBR BLUE,DARK BLUE |
1 | ||
| 62431-1701104 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62440 - GARNISH ASSY, ROOF SIDE RAIL, LH | ||||
| 62432-1701001 |
AW11..TBR BLACK,BLACK |
1 | ||
| 62432-1701104 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62432-1701101 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62432-1701004 |
AW11..TBR BLUE,DARK BLUE |
1 | ||
| 62432-1701001 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62432-1701004 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62432-1701111 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62451 - GARNISH, ROOF SIDE INNER, RH | ||||
| 62405-1703004 |
AW11..TBR BLUE,DARK BLUE |
1 | ||
| 62405-1701001 |
AW1# BLACK,BLACK |
1 | ||
| 62405-1703004 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62405-1703011 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62405-1703001 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62405-1703001 |
AW11..TBR BLACK,BLACK |
1 | ||
| 62451A - CLIP, SIDE GARNISH | ||||
| 90467-0704101 |
AW1# BLACK,TRIM2# |
2 | ||
| 90467-0704134 |
AW1# DARK BLUE,TRIM8# |
2 | ||
| 90467-0704111 |
AW1# BLACK,TRIM2# |
2 | ||
| 90467-0704134 |
AW1# BLUE,DARK BLUE |
1 | ||
| 90467-0704101 |
AW1# BLACK,BLACK |
2 | ||
| 90467-0704113 |
AW1# GRAY,TRIM2#,8# |
2 | ||
| 62452 - GARNISH, ROOF SIDE INNER, LH | ||||
| 62406-1703004 |
AW11..TBR BLUE,DARK BLUE |
1 | ||
| 62406-1701001 |
AW1# BLACK,BLACK |
1 | ||
| 62406-1703001 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62406-1703004 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62406-1703011 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62406-1703001 |
AW11..TBR BLACK,BLACK |
1 | ||
| 62501A - PANEL ASSY, QUARTER TRIM, RH | ||||
| 62511-1703001 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62511-1703004 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62511-1703004 |
AW11..TBR BLUE,DARK BLUE |
1 | ||
| 62511-1703011 |
AW11..TBR BLACK,BLACK,TRIM2# |
1 | ||
| 62511-1703001 |
AW11..TBR BLACK,BLACK |
1 | ||
| 62502A - PANEL ASSY, QUARTER TRIM, LH | ||||
| 62512-1702001 |
AW1# BLACK,TRIM2# |
1 | ||
| 62512-1702004 |
AW1# DARK BLUE,TRIM8# |
1 | ||
| 62512-1702001 |
AW1# BLACK,BLACK |
1 | ||
| 62512-1702004 |
AW1# BLUE,DARK BLUE |
1 | ||
| 62512-1702011 |
AW1# BLACK,TRIM2# |
1 | ||
| 62538C - COVER, QUARTER TRIM, HOLE | ||||
| 62538-1701104 |
AW11..TBR DARK BLUE,TRIM8# |
1 | ||
| 62538-1701111 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62538-1701101 |
AW11..TBR BLACK,TRIM2# |
1 | ||
| 62538-1701101 |
AW11..TBR BLACK,BLACK |
1 | ||
| 62538-1701001 |
AW11..TBR BLACK,BLACK |
1 | ||
| 62538-1701104 |
AW11..TBR BLUE,DARK BLUE |
1 | ||
| 62561 - PROTECTOR, ROCKER PANEL, INNER FRONT | ||||
| 62561-17020 |
AW1# 右側 |
1 | ||
| 62561-17020 |
AW1# RH |
1 | ||
| 62562-17020 |
AW1# 左側 |
1 | ||
| 62562-17020 |
AW1# LH |
1 | ||
| 62561 - PROTECTOR, ROCKER PANEL, INNER FRONT | ||||
| 62561-17020 |
AW1# 右側 |
1 | ||
| 62561-17020 |
AW1# RH |
1 | ||
| 62562-17020 |
AW1# 左側 |
1 | ||
| 62562-17020 |
AW1# LH |
1 | ||
| 62561C - CLIP (FOR ROCKER PANEL INNER PROTECTOR) | ||||
| 90467-0601711 |
AW1# BLACK,TRIM2#,8# |
4 | ||
| 90467-0601701 |
AW1# BLACK,BLACK |
4 | ||
| 64383B - GRILLE, REAR SPEAKER, RH | ||||
| 64383-1701011 |
AW1# BLACK,TRIM2# |
1 | ||
| 64383-1701004 |
AW1# BLUE,DARK BLUE |
1 | ||
| 64383-1701001 |
AW1# BLACK,TRIM2# |
1 | ||
| 64383-1701001 |
AW1# BLACK,BLACK |
1 | ||
| 64383-1701004 |
AW1# DARK BLUE,TRIM8# |
1 | ||
| 64384B - GRILLE, REAR SPEAKER, LH | ||||
| 64384-1701004 |
AW1# DARK BLUE,TRIM8# |
1 | ||
| 64384-1701001 |
AW1# BLACK,TRIM2# |
1 | ||
| 64384-1701004 |
AW1# BLUE,DARK BLUE |
1 | ||
| 64384-1701011 |
AW1# BLACK,TRIM2# |
1 | ||
| 64384-1701001 |
AW1# BLACK,BLACK |
1 | ||
| Common parts | ||||
| 90168-40008 | ||||
| 90179-06068 | ||||
| 90183-05016 | ||||
| 90189-04073 | ||||
| 90189-05023 | ||||
| 90463-05024 | ||||
| 90468-04046 | ||||
| 90468-05017 | ||||
| 90468-05052 | ||||
| 90468-05060 | ||||
| 90468-25002 | ||||
| 90468-25003 | ||||
| 93229-55012 | ||||
| 93560-55016 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 6104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
