AW11-WJPQF (1986)

Toyota Mr2

Production Aug 1986 - Dec 1989
Engine 4AGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

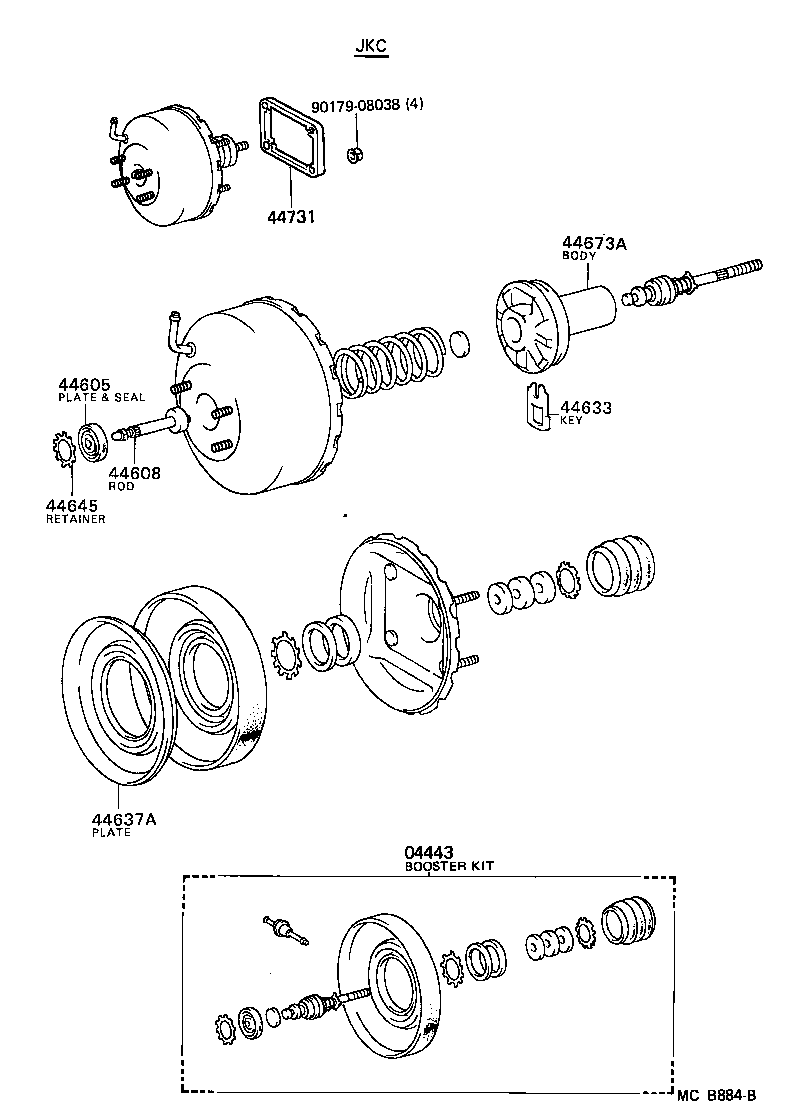

ILLUST NO. 1 OF 2(8608- )CBR,TWC

Click highlighted areas on diagram

diagram 04443 44605 44608 44633 44637A 44645 44673A 44731 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-17010

AW1#

 1
04443-17150

AW11..TWC

AISIN

 1
04443-17120

AW11..TWC

JKC

 1
04443-17151

AW11..TWC

AISIN

 1
04443-17151

AW11..TWC

AISIN

 1
04443-17120

AW11..TWC

JKC

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

AW1#..CBR,TWC

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-12520

AW1#..CBR,TWC

AISIN

 1
44606-12520

AW1#..CBR,TWC

AISIN

 1
44606-12520

AW1#

 1
44608-32020

AW1#..CBR,TWC

JKC

 1
44608-32020

AW1#..CBR,TWC

JKC

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

AW1#..CBR,TWC

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32020

AW1#..CBR,TWC

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

AW1#..CBR,TWC

 1
44673A - BODY, BOOSTER VALVE
44673-32020

AW11..TWC

 1
44673-28190

AW11..TWC

 1
44731 - BRACKET, BRAKE BOOSTER, FRONT
44731-17010

AW1#

 1
Common parts
90179-08038
