AW11-WJPQF (1986)
Toyota Mr2
(8608- )4FC..CBR,TWC

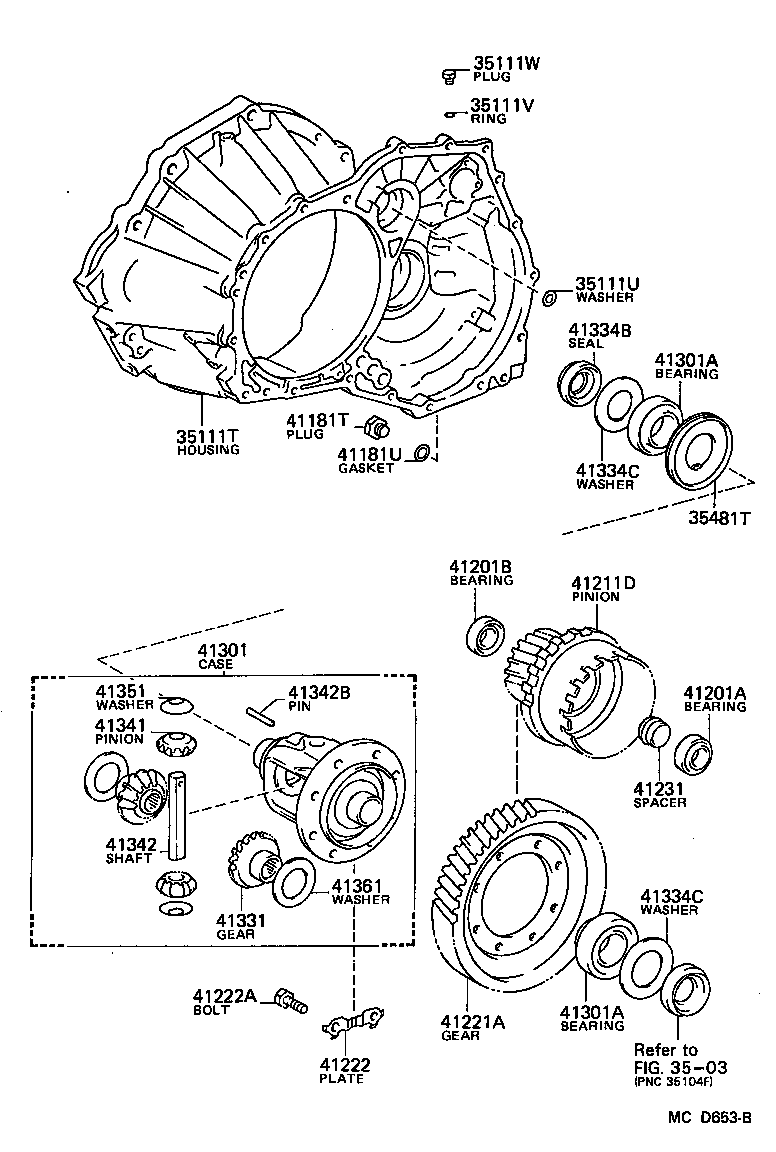

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35111T - HOUSING, TRANSAXLE | ||||
| 35105-12010 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 35105-12011 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 35105-12020 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 35105-12010 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 35111U - WASHER, SEAL (FOR REAR TRANSAXLE HOUSING) | ||||
| 90210-13002 |
AW1#..4FC |
1 | ||
| 35111V - RING, O (FOR TRANSAXLE HOUSING PLUG) | ||||
| 90301-06196 |
AW1#..4FC |
1 | ||
| 90301-06196 |
AW1#..4FC ID=6.07 |
1 | ||
| 35111W - PLUG (FOR TRANSAXLE HOUSING) | ||||
| 90341-08001 |
AW1#..4FC L=14.5 |
1 | ||
| 90341-08001 |
AW1#..4FC |
1 | ||
| 35481T - GEAR, SPEEDMETER DRIVE (ATM) | ||||
| 33481-12050 |
AW1#..4FC 歯数=25,ﾏｰｸ無し |
1 | ||
| 33481-12040 |
AW1#..4FC..(CBR,TWC) 歯数=35,ﾏｰｸ 35X29−31 |
1 | ||
| 33481-12040 |
AW1#..4FC..(CBR,TWC) 歯数=35,ﾏｰｸ 35X29−31 |
1 | ||
| 41181T - PLUG (FOR REAR DIFFERENTIAL DRAIN) | ||||
| 90341-18057 |
AW1#..4FC |
1 | ||
| 41181U - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) | ||||
| 90430-18008 |
AW1#..4FC |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-30020 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 90366-30019 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 90366-35013 |
AW1#..4FC |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-40010 |
AW1#..4FC |
1 | ||
| 90366-30020 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 90366-30019 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 41211D - PINION, DIFFERENTIAL DRIVE | ||||
| 41211-17010 |
AW1#..4FC |
1 | ||
| 41206-20030 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 41206-20030 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 41221A - GEAR, REAR DIFFERENTIAL RING | ||||
| 41221-20230 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 41221-12180 |
AW1#..4FC |
1 | ||
| 41221-20230 |
AW1#..4FC |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-12050 |
AW1#..4FC..(CBR,TWC) |
4 | ||
| 41222-12050 |
AW1#..4FC..(CBR,TWC) |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
AW1#..CBR,TWC;AW11..4FC..SPC |
8 | ||
| 90101-11353 |
AW1#..CBR,TWC;AW11..4FC..SPC |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-32010 |
AW1#..4FC |
1 | ||
| 41231-12030 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 41231-12030 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-12050 |
AW1#..4FC |
1 | ||
| 41301-17020 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 41301-12090 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 41301-17021 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 41301-17020 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-38010 |
AW1#..CBR,TWC LH |
1 | ||
| 90368-38006 |
AW1#..4FC..(CBR,TWC) RH |
1 | ||
| 90368-38010 |
AW1#..CBR,TWC 左側 |
1 | ||
| 90368-38006 |
AW1#..4FC |
2 | ||
| 90368-38006 |
AW1#..4FC..(CBR,TWC) 右側 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-38010 |
AW1#..CBR,TWC LH |
1 | ||
| 90368-38006 |
AW1#..4FC..(CBR,TWC) RH |
1 | ||
| 90368-38010 |
AW1#..CBR,TWC 左側 |
1 | ||
| 90368-38006 |
AW1#..4FC |
2 | ||
| 90368-38006 |
AW1#..4FC..(CBR,TWC) 右側 |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-12011 |
AW1#..CBR,TWC |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-34012 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 90311-34012 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 90311-34005 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-41004 |
AW1#..4FC 厚さ=1.70,LH,T=1.70 |
1 | ||
| 90201-41002 |
AW1#..4FC 厚さ=1.60,LH,T=1.60 |
1 | ||
| 90201-41003 |
AW1#..4FC 厚さ=1.65,LH,T=1.65 |
1 | ||
| 90201-41012 |
AW1#..4FC 厚さ=2.10,RH |
1 | ||
| 90201-41011 |
AW1#..4FC 厚さ=2.05,LH,T=2.05 |
1 | ||
| 90201-41014 |
AW1#..4FC 厚さ=2.20,LH,T=2.20 |
1 | ||
| 90201-41006 |
AW1#..4FC 厚さ=1.80,LH,T=1.80 |
1 | ||
| 90201-41015 |
AW1#..4FC 厚さ=2.25,LH,T=2.25 |
1 | ||
| 90201-41020 |
AW1#..4FC 厚さ=2.50,LH,T=2.50 |
1 | ||
| 90201-41007 |
AW1#..4FC 厚さ=1.85,LH,T=1.85 |
1 | ||
| 90201-41013 |
AW1#..4FC 厚さ=2.15,LH,T=2.15 |
1 | ||
| 90201-41009 |
AW1#..4FC 厚さ=1.95,LH,T=1.95 |
1 | ||
| 90201-41016 |
AW1#..4FC 厚さ=2.30,LH,T=2.30 |
1 | ||
| 90201-41010 |
AW1#..4FC 厚さ=2.00,LH,T=2.00 |
1 | ||
| 90201-41005 |
AW1#..4FC 厚さ=1.75,LH,T=1.75 |
1 | ||
| 90201-41023 |
AW1#..4FC 厚さ=2.65,LH,T=2.65 |
1 | ||
| 90201-41017 |
AW1#..4FC 厚さ=2.35,LH,T=2.35 |
1 | ||
| 90201-41018 |
AW1#..4FC 厚さ=2.40,LH,T=2.40 |
1 | ||
| 90201-41019 |
AW1#..4FC 厚さ=2.45,LH,T=2.45 |
1 | ||
| 90201-41021 |
AW1#..4FC 厚さ=2.55,LH,T=2.55 |
1 | ||
| 90201-41022 |
AW1#..4FC 厚さ=2.60,LH,T=2.60 |
1 | ||
| 90201-41025 |
AW1#..4FC..(CBR,TWC) 厚さ=2.35,ﾏｰｸ A,LH,T=2.35,MARK A |
1 | ||
| 90201-41027 |
AW1#..4FC..(CBR,TWC) 厚さ=2.45,ﾏｰｸ C,LH,T=2.45,MARK C |
1 | ||
| 90201-41024 |
AW1#..4FC..(CBR,TWC) 厚さ=2.00,ﾏｰｸ V,LH,T=2.00,MARK V |
1 | ||
| 90201-41008 |
AW1#..4FC 厚さ=1.90,LH,T=1.90 |
1 | ||
| 90201-41026 |
AW1#..4FC..(CBR,TWC) 厚さ=2.40,ﾏｰｸ B,LH,T=2.40,MARK B |
1 | ||
| 90201-41034 |
AW1#..4FC..(CBR,TWC) 厚さ=2.80,ﾏｰｸ K,LH,T=2.80,MARK K |
1 | ||
| 90201-41031 |
AW1#..4FC..(CBR,TWC) 厚さ=2.65,ﾏｰｸ G,LH,T=2.65,MARK G |
1 | ||
| 90201-41029 |
AW1#..4FC..(CBR,TWC) 厚さ=2.55,ﾏｰｸ E,LH,T=2.55,MARK E |
1 | ||
| 90201-41033 |
AW1#..4FC..(CBR,TWC) 厚さ=2.75,ﾏｰｸ J,LH,T=2.75,MARK J |
1 | ||
| 90201-41030 |
AW1#..4FC..(CBR,TWC) 厚さ=2.60,ﾏｰｸ F,LH,T=2.60,MARK F |
1 | ||
| 90201-41040 |
AW1#..4FC..(CBR,TWC) 厚さ=2.15,ﾏｰｸ R,LH,T=2.15,MARK R |
1 | ||
| 90201-41010 |
AW1#..4FC 厚さ=2.00,RH |
1 | ||
| 90201-41036 |
AW1#..4FC..(CBR,TWC) 厚さ=2.90,ﾏｰｸ M,LH,T=2.90,MARK M |
1 | ||
| 90201-41035 |
AW1#..4FC..(CBR,TWC) 厚さ=2.85,ﾏｰｸ L,LH,T=2.85,MARK L |
1 | ||
| 90201-41038 |
AW1#..4FC..(CBR,TWC) 厚さ=3.00,ﾏｰｸ P,LH,T=3.00,MARK P |
1 | ||
| 90201-41044 |
AW1#..4FC..(CBR,TWC) 厚さ=2.05,ﾏｰｸ W,LH,T=2.05,MARK W |
1 | ||
| 90201-41037 |
AW1#..4FC..(CBR,TWC) 厚さ=2.95,ﾏｰｸ N,LH,T=2.95,MARK N |
1 | ||
| 90201-41039 |
AW1#..4FC..(CBR,TWC) 厚さ=2.10,ﾏｰｸ Q,LH,T=2.10,MARK Q |
1 | ||
| 90201-41041 |
AW1#..4FC..(CBR,TWC) 厚さ=2.20,ﾏｰｸ S,LH,T=2.20,MARK S |
1 | ||
| 90201-41043 |
AW1#..4FC..(CBR,TWC) 厚さ=2.30,ﾏｰｸ U,LH,T=2.30,MARK U |
1 | ||
| 90201-41032 |
AW1#..4FC..(CBR,TWC) 厚さ=2.70,ﾏｰｸ H,LH,T=2.70,MARK H |
1 | ||
| 90201-41042 |
AW1#..4FC..(CBR,TWC) 厚さ=2.25,ﾏｰｸ T,LH,T=2.25,MARK T |
1 | ||
| 90201-41028 |
AW1#..4FC..(CBR,TWC) 厚さ=2.50,ﾏｰｸ D,LH,T=2.50,MARK D |
1 | ||
| 90201-41010 |
AW1#..4FC..(CBR,TWC) 厚さ=2.00 |
1 | ||
| 90201-41024 |
AW1#..4FC..(CBR,TWC) 厚さ=2.00,ﾏｰｸ V |
1 | ||
| 90201-41025 |
AW1#..4FC..(CBR,TWC) 厚さ=2.35,ﾏｰｸ A |
1 | ||
| 90201-41027 |
AW1#..4FC..(CBR,TWC) 厚さ=2.45,ﾏｰｸ C |
1 | ||
| 90201-41036 |
AW1#..4FC..(CBR,TWC) 厚さ=2.90,ﾏｰｸ M |
1 | ||
| 90201-41028 |
AW1#..4FC..(CBR,TWC) 厚さ=2.50,ﾏｰｸ D |
1 | ||
| 90201-41035 |
AW1#..4FC..(CBR,TWC) 厚さ=2.85,ﾏｰｸ L |
1 | ||
| 90201-41038 |
AW1#..4FC..(CBR,TWC) 厚さ=3.00,ﾏｰｸ P |
1 | ||
| 90201-41034 |
AW1#..4FC..(CBR,TWC) 厚さ=2.80,ﾏｰｸ K |
1 | ||
| 90201-41032 |
AW1#..4FC..(CBR,TWC) 厚さ=2.70,ﾏｰｸ H |
1 | ||
| 90201-41039 |
AW1#..4FC..(CBR,TWC) 厚さ=2.10,ﾏｰｸ Q |
1 | ||
| 90201-41030 |
AW1#..4FC..(CBR,TWC) 厚さ=2.60,ﾏｰｸ F |
1 | ||
| 90201-41033 |
AW1#..4FC..(CBR,TWC) 厚さ=2.75,ﾏｰｸ J |
1 | ||
| 90201-41042 |
AW1#..4FC..(CBR,TWC) 厚さ=2.25,ﾏｰｸ T |
1 | ||
| 90201-41029 |
AW1#..4FC..(CBR,TWC) 厚さ=2.55,ﾏｰｸ E |
1 | ||
| 90201-41040 |
AW1#..4FC..(CBR,TWC) 厚さ=2.15,ﾏｰｸ R |
1 | ||
| 90201-41037 |
AW1#..4FC..(CBR,TWC) 厚さ=2.95,ﾏｰｸ N |
1 | ||
| 90201-41041 |
AW1#..4FC..(CBR,TWC) 厚さ=2.20,ﾏｰｸ S |
1 | ||
| 90201-41043 |
AW1#..4FC..(CBR,TWC) 厚さ=2.30,ﾏｰｸ U |
1 | ||
| 90201-41031 |
AW1#..4FC..(CBR,TWC) 厚さ=2.65,ﾏｰｸ G |
1 | ||
| 90201-41026 |
AW1#..4FC..(CBR,TWC) 厚さ=2.40,ﾏｰｸ B |
1 | ||
| 90201-41044 |
AW1#..4FC..(CBR,TWC) 厚さ=2.05,ﾏｰｸ W |
1 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-41004 |
AW1#..4FC 厚さ=1.70,LH,T=1.70 |
1 | ||
| 90201-41002 |
AW1#..4FC 厚さ=1.60,LH,T=1.60 |
1 | ||
| 90201-41003 |
AW1#..4FC 厚さ=1.65,LH,T=1.65 |
1 | ||
| 90201-41012 |
AW1#..4FC 厚さ=2.10,RH |
1 | ||
| 90201-41011 |
AW1#..4FC 厚さ=2.05,LH,T=2.05 |
1 | ||
| 90201-41014 |
AW1#..4FC 厚さ=2.20,LH,T=2.20 |
1 | ||
| 90201-41006 |
AW1#..4FC 厚さ=1.80,LH,T=1.80 |
1 | ||
| 90201-41015 |
AW1#..4FC 厚さ=2.25,LH,T=2.25 |
1 | ||
| 90201-41020 |
AW1#..4FC 厚さ=2.50,LH,T=2.50 |
1 | ||
| 90201-41007 |
AW1#..4FC 厚さ=1.85,LH,T=1.85 |
1 | ||
| 90201-41013 |
AW1#..4FC 厚さ=2.15,LH,T=2.15 |
1 | ||
| 90201-41009 |
AW1#..4FC 厚さ=1.95,LH,T=1.95 |
1 | ||
| 90201-41016 |
AW1#..4FC 厚さ=2.30,LH,T=2.30 |
1 | ||
| 90201-41010 |
AW1#..4FC 厚さ=2.00,LH,T=2.00 |
1 | ||
| 90201-41005 |
AW1#..4FC 厚さ=1.75,LH,T=1.75 |
1 | ||
| 90201-41023 |
AW1#..4FC 厚さ=2.65,LH,T=2.65 |
1 | ||
| 90201-41017 |
AW1#..4FC 厚さ=2.35,LH,T=2.35 |
1 | ||
| 90201-41018 |
AW1#..4FC 厚さ=2.40,LH,T=2.40 |
1 | ||
| 90201-41019 |
AW1#..4FC 厚さ=2.45,LH,T=2.45 |
1 | ||
| 90201-41021 |
AW1#..4FC 厚さ=2.55,LH,T=2.55 |
1 | ||
| 90201-41022 |
AW1#..4FC 厚さ=2.60,LH,T=2.60 |
1 | ||
| 90201-41025 |
AW1#..4FC..(CBR,TWC) 厚さ=2.35,ﾏｰｸ A,LH,T=2.35,MARK A |
1 | ||
| 90201-41027 |
AW1#..4FC..(CBR,TWC) 厚さ=2.45,ﾏｰｸ C,LH,T=2.45,MARK C |
1 | ||
| 90201-41024 |
AW1#..4FC..(CBR,TWC) 厚さ=2.00,ﾏｰｸ V,LH,T=2.00,MARK V |
1 | ||
| 90201-41008 |
AW1#..4FC 厚さ=1.90,LH,T=1.90 |
1 | ||
| 90201-41026 |
AW1#..4FC..(CBR,TWC) 厚さ=2.40,ﾏｰｸ B,LH,T=2.40,MARK B |
1 | ||
| 90201-41034 |
AW1#..4FC..(CBR,TWC) 厚さ=2.80,ﾏｰｸ K,LH,T=2.80,MARK K |
1 | ||
| 90201-41031 |
AW1#..4FC..(CBR,TWC) 厚さ=2.65,ﾏｰｸ G,LH,T=2.65,MARK G |
1 | ||
| 90201-41029 |
AW1#..4FC..(CBR,TWC) 厚さ=2.55,ﾏｰｸ E,LH,T=2.55,MARK E |
1 | ||
| 90201-41033 |
AW1#..4FC..(CBR,TWC) 厚さ=2.75,ﾏｰｸ J,LH,T=2.75,MARK J |
1 | ||
| 90201-41030 |
AW1#..4FC..(CBR,TWC) 厚さ=2.60,ﾏｰｸ F,LH,T=2.60,MARK F |
1 | ||
| 90201-41040 |
AW1#..4FC..(CBR,TWC) 厚さ=2.15,ﾏｰｸ R,LH,T=2.15,MARK R |
1 | ||
| 90201-41010 |
AW1#..4FC 厚さ=2.00,RH |
1 | ||
| 90201-41036 |
AW1#..4FC..(CBR,TWC) 厚さ=2.90,ﾏｰｸ M,LH,T=2.90,MARK M |
1 | ||
| 90201-41035 |
AW1#..4FC..(CBR,TWC) 厚さ=2.85,ﾏｰｸ L,LH,T=2.85,MARK L |
1 | ||
| 90201-41038 |
AW1#..4FC..(CBR,TWC) 厚さ=3.00,ﾏｰｸ P,LH,T=3.00,MARK P |
1 | ||
| 90201-41044 |
AW1#..4FC..(CBR,TWC) 厚さ=2.05,ﾏｰｸ W,LH,T=2.05,MARK W |
1 | ||
| 90201-41037 |
AW1#..4FC..(CBR,TWC) 厚さ=2.95,ﾏｰｸ N,LH,T=2.95,MARK N |
1 | ||
| 90201-41039 |
AW1#..4FC..(CBR,TWC) 厚さ=2.10,ﾏｰｸ Q,LH,T=2.10,MARK Q |
1 | ||
| 90201-41041 |
AW1#..4FC..(CBR,TWC) 厚さ=2.20,ﾏｰｸ S,LH,T=2.20,MARK S |
1 | ||
| 90201-41043 |
AW1#..4FC..(CBR,TWC) 厚さ=2.30,ﾏｰｸ U,LH,T=2.30,MARK U |
1 | ||
| 90201-41032 |
AW1#..4FC..(CBR,TWC) 厚さ=2.70,ﾏｰｸ H,LH,T=2.70,MARK H |
1 | ||
| 90201-41042 |
AW1#..4FC..(CBR,TWC) 厚さ=2.25,ﾏｰｸ T,LH,T=2.25,MARK T |
1 | ||
| 90201-41028 |
AW1#..4FC..(CBR,TWC) 厚さ=2.50,ﾏｰｸ D,LH,T=2.50,MARK D |
1 | ||
| 90201-41010 |
AW1#..4FC..(CBR,TWC) 厚さ=2.00 |
1 | ||
| 90201-41024 |
AW1#..4FC..(CBR,TWC) 厚さ=2.00,ﾏｰｸ V |
1 | ||
| 90201-41025 |
AW1#..4FC..(CBR,TWC) 厚さ=2.35,ﾏｰｸ A |
1 | ||
| 90201-41027 |
AW1#..4FC..(CBR,TWC) 厚さ=2.45,ﾏｰｸ C |
1 | ||
| 90201-41036 |
AW1#..4FC..(CBR,TWC) 厚さ=2.90,ﾏｰｸ M |
1 | ||
| 90201-41028 |
AW1#..4FC..(CBR,TWC) 厚さ=2.50,ﾏｰｸ D |
1 | ||
| 90201-41035 |
AW1#..4FC..(CBR,TWC) 厚さ=2.85,ﾏｰｸ L |
1 | ||
| 90201-41038 |
AW1#..4FC..(CBR,TWC) 厚さ=3.00,ﾏｰｸ P |
1 | ||
| 90201-41034 |
AW1#..4FC..(CBR,TWC) 厚さ=2.80,ﾏｰｸ K |
1 | ||
| 90201-41032 |
AW1#..4FC..(CBR,TWC) 厚さ=2.70,ﾏｰｸ H |
1 | ||
| 90201-41039 |
AW1#..4FC..(CBR,TWC) 厚さ=2.10,ﾏｰｸ Q |
1 | ||
| 90201-41030 |
AW1#..4FC..(CBR,TWC) 厚さ=2.60,ﾏｰｸ F |
1 | ||
| 90201-41033 |
AW1#..4FC..(CBR,TWC) 厚さ=2.75,ﾏｰｸ J |
1 | ||
| 90201-41042 |
AW1#..4FC..(CBR,TWC) 厚さ=2.25,ﾏｰｸ T |
1 | ||
| 90201-41029 |
AW1#..4FC..(CBR,TWC) 厚さ=2.55,ﾏｰｸ E |
1 | ||
| 90201-41040 |
AW1#..4FC..(CBR,TWC) 厚さ=2.15,ﾏｰｸ R |
1 | ||
| 90201-41037 |
AW1#..4FC..(CBR,TWC) 厚さ=2.95,ﾏｰｸ N |
1 | ||
| 90201-41041 |
AW1#..4FC..(CBR,TWC) 厚さ=2.20,ﾏｰｸ S |
1 | ||
| 90201-41043 |
AW1#..4FC..(CBR,TWC) 厚さ=2.30,ﾏｰｸ U |
1 | ||
| 90201-41031 |
AW1#..4FC..(CBR,TWC) 厚さ=2.65,ﾏｰｸ G |
1 | ||
| 90201-41026 |
AW1#..4FC..(CBR,TWC) 厚さ=2.40,ﾏｰｸ B |
1 | ||
| 90201-41044 |
AW1#..4FC..(CBR,TWC) 厚さ=2.05,ﾏｰｸ W |
1 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22020 |
AW1# |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-12110 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 41342-12110 |
AW1#..CBR,TWC |
1 | ||
| 41342-12020 |
AW1#..CBR,TWC |
1 | ||
| 41342B - PIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
AW1#..CBR,TWC;AW11..4FC..SPC |
1 | ||
| 90250-06058 |
AW1# |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-12020 |
AW1#..CBR,TWC |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22020 |
AW1#..4FC 厚さ=1.00,ﾏｰｸ 02,T=1.00 |
2 | ||
| 41361-22150 |
AW1#..4FC 厚さ=1.05,ﾏｰｸ 15,T=1.05 |
2 | ||
| 41361-22140 |
AW1#..4FC 厚さ=0.95,ﾏｰｸ 14,T=0.95 |
2 | ||
| 41361-22040 |
AW1#..4FC 厚さ=1.20,ﾏｰｸ 04,T=1.20 |
2 | ||
| 41361-22160 |
AW1#..4FC 厚さ=1.15,ﾏｰｸ 16,T=1.15 |
2 | ||
| 41361-17060 |
AW1#..4FC 厚さ=1.20 |
2 | ||
| 41361-17010 |
AW1#..4FC 厚さ=0.95 |
2 | ||
| 41361-17020 |
AW1#..4FC 厚さ=1.00 |
2 | ||
| 41361-17030 |
AW1#..4FC 厚さ=1.05 |
2 | ||
| 41361-17050 |
AW1#..4FC 厚さ=1.15 |
2 | ||
| 41361-17020 |
AW1#..4FC 厚さ=1.00 |
2 | ||
| 41361-17060 |
AW1#..4FC 厚さ=1.20 |
2 | ||
| 41361-22030 |
AW1#..4FC 厚さ=1.10,ﾏｰｸ 03,T=1.10 |
2 | ||
| 41361-17030 |
AW1#..4FC 厚さ=1.05 |
2 | ||
| 41361-17010 |
AW1#..4FC 厚さ=0.95 |
2 | ||
| 41361-17040 |
AW1#..4FC 厚さ=1.10 |
2 | ||
| 41361-17040 |
AW1#..4FC 厚さ=1.10 |
2 | ||
| 41361-17050 |
AW1#..4FC 厚さ=1.15 |
2 | ||
| Linked diagrams | ||||
| 3503 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
