AW11-WJPQF (1986)
Toyota Mr2
Production
Aug 1986
-
Dec 1989
Engine
4AGELU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

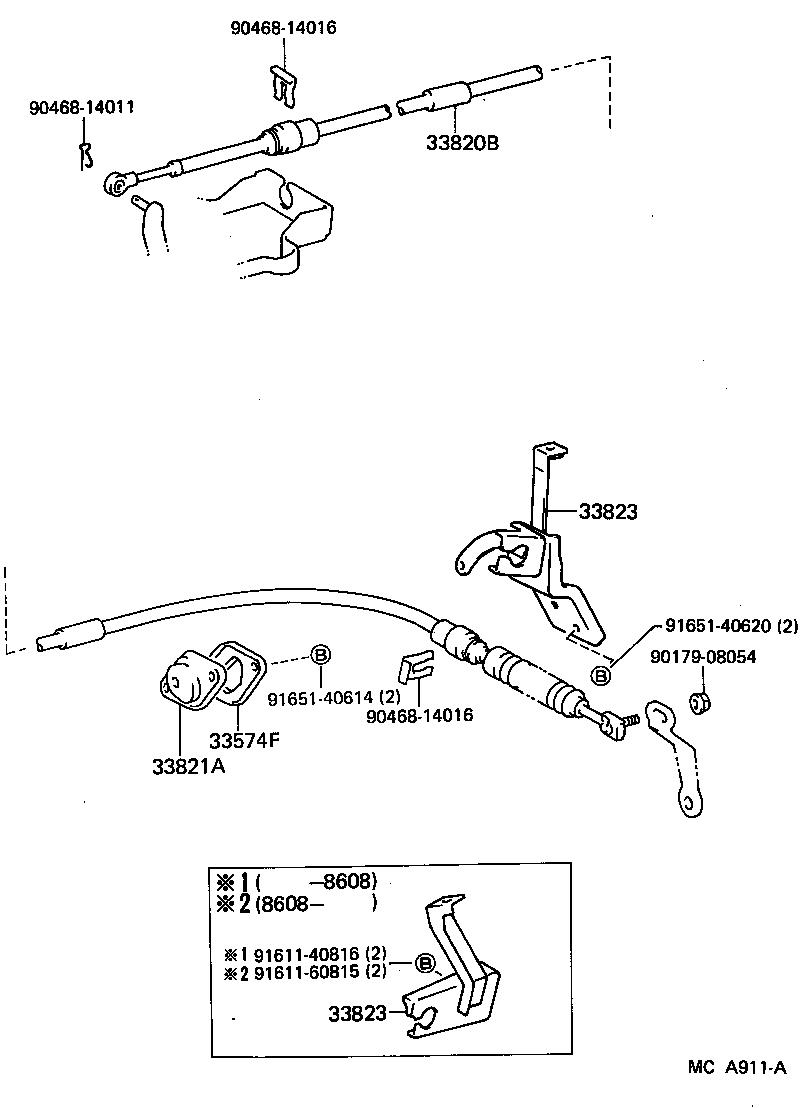

ILLUST NO. 2 OF 2(8406-8712)4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-17010 |
AW1# |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-17010 |
AW11..4FC |
1 | ||
| 33820-17030 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 33820-17030 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01267 |
AW1#..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-17050 |
AW11..4FC |
1 | ||
| 33823-17020 |
AW1#..4FC |
1 | ||
| 33823-17050 |
AW11..4FC..TWC |
1 | ||
| 33823-17030 |
AW1#..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-17050 |
AW11..4FC |
1 | ||
| 33823-17020 |
AW1#..4FC |
1 | ||
| 33823-17050 |
AW11..4FC..TWC |
1 | ||
| 33823-17030 |
AW1#..4FC |
1 | ||
| Common parts | ||||
| 90179-08054 | ||||
| 90468-14011 | ||||
| 90468-14016 | ||||
| 91611-40816 | ||||
| 91611-60815 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||

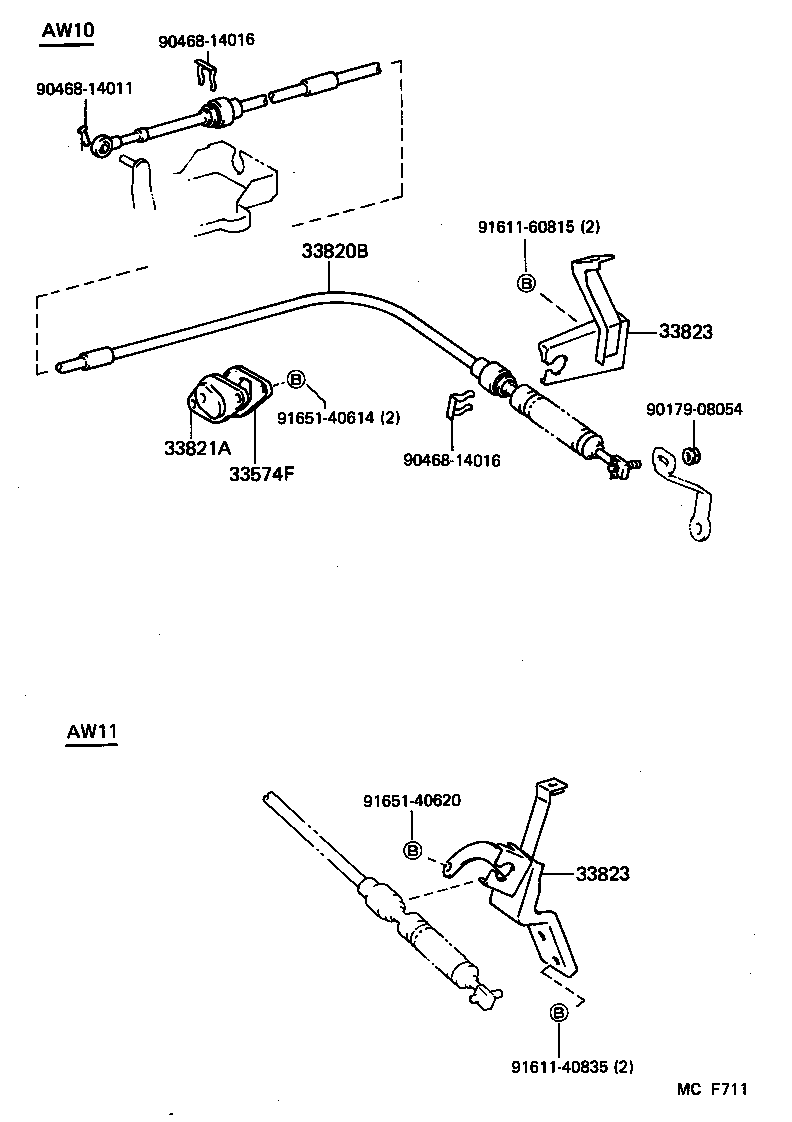

ILLUST NO. 2 OF 2(8712- )4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-17010 |
AW1# |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-17010 |
AW11..4FC |
1 | ||
| 33820-17030 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 33820-17030 |
AW1#..4FC..(CBR,TWC) |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01267 |
AW1#..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-17050 |
AW11..4FC |
1 | ||
| 33823-17020 |
AW1#..4FC |
1 | ||
| 33823-17050 |
AW11..4FC..TWC |
1 | ||
| 33823-17030 |
AW1#..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-17050 |
AW11..4FC |
1 | ||
| 33823-17020 |
AW1#..4FC |
1 | ||
| 33823-17050 |
AW11..4FC..TWC |
1 | ||
| 33823-17030 |
AW1#..4FC |
1 | ||
| Common parts | ||||
| 90179-08054 | ||||
| 90468-14011 | ||||
| 90468-14016 | ||||
| 91611-40835 | ||||
| 91611-60815 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
(8901- )4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35519C - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-24010 |
AW1#..4FC |
1 | ||
