AW11-WJMQR (1986)

Toyota Mr2

Production Aug 1986 - Dec 1989
Engine 4AGZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )TBR

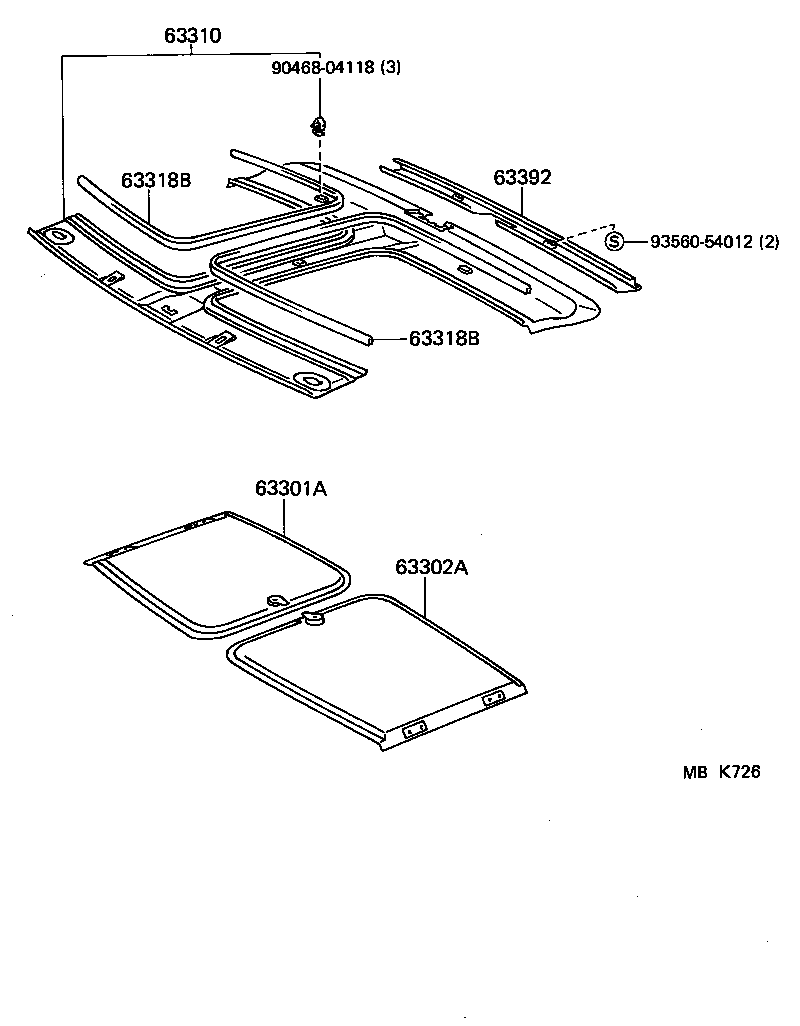

Click highlighted areas on diagram

diagram 63301A 63302A 63310 63318B 63318B 63392 9046804118 9356054012
Part # Description Qty Price
63301A - TRIM SUB-ASSY, SUNSHADE, NO.1 RH
63301-1701001

AW11..TBR

BLACK,BLACK

 1
63301-1701004

AW11..TBR

DARK BLUE,TRIM8#

 1
63301-1701004

AW11..TBR

BLUE,DARK BLUE

 1
63301-1701001

AW11..TBR

BLACK,TRIM2#

 1
63302A - TRIM SUB-ASSY, SUNSHADE, NO.1 LH
63302-1701004

AW11..TBR

BLUE,DARK BLUE

 1
63302-1701001

AW11..TBR

BLACK,BLACK

 1
63302-1701004

AW11..TBR

DARK BLUE,TRIM8#

 1
63302-1701001

AW11..TBR

BLACK,TRIM2#

 1
63310 - HEADLINING ASSY, ROOF
63311-1704003

AW1#

W/REMOVABLE ROOF,LIGHT GRAY,LIGHT GRAY

 1
63311-1701004

AW11..TBR

DARK BLUE,TRIM8#

 1
63311-1701001

AW11..TBR

BLACK,BLACK

 1
63311-1701001

AW11..TBR

BLACK,TRIM2#

 1
63311-1701004

AW11..TBR

BLUE,DARK BLUE

 1
63311-1703003

AW1#

LIGHT GRAY,LIGHT GRAY

 1
63318B - MOULDING, ROOF HEADLINING SET, NO.1
63318-1702001

AW11..TBR

BLACK,BLACK

 2
63318-1702004

AW11..TBR

BLUE,DARK BLUE

 1
63318-1702011

AW11..TBR

BLACK,TRIM2#

 2
63318-1702001

AW11..TBR

BLACK,TRIM2#

 2
63318-1702004

AW11..TBR

DARK BLUE,TRIM8#

 2
63318B - MOULDING, ROOF HEADLINING SET, NO.1
63318-1702001

AW11..TBR

BLACK,BLACK

 2
63318-1702004

AW11..TBR

BLUE,DARK BLUE

 1
63318-1702011

AW11..TBR

BLACK,TRIM2#

 2
63318-1702001

AW11..TBR

BLACK,TRIM2#

 2
63318-1702004

AW11..TBR

DARK BLUE,TRIM8#

 2
63392 - TRIM, ROOF HEADLINING, REAR
63392-1701004

AW1#

BLUE,DARK BLUE

 1
63392-1701001

AW1#

BLACK,TRIM2#

 1
63392-1701001

AW1#

BLACK,BLACK

 1
63392-1701004

AW1#

DARK BLUE,TRIM8#

 1
63392-1701011

AW1#

BLACK,TRIM2#

 1
Common parts
90468-04118
93560-54012
