AW11-WCPQR (1986)

Toyota Mr2

Production Aug 1986 - Dec 1989
Engine 4AGZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8608- )

Click highlighted areas on diagram

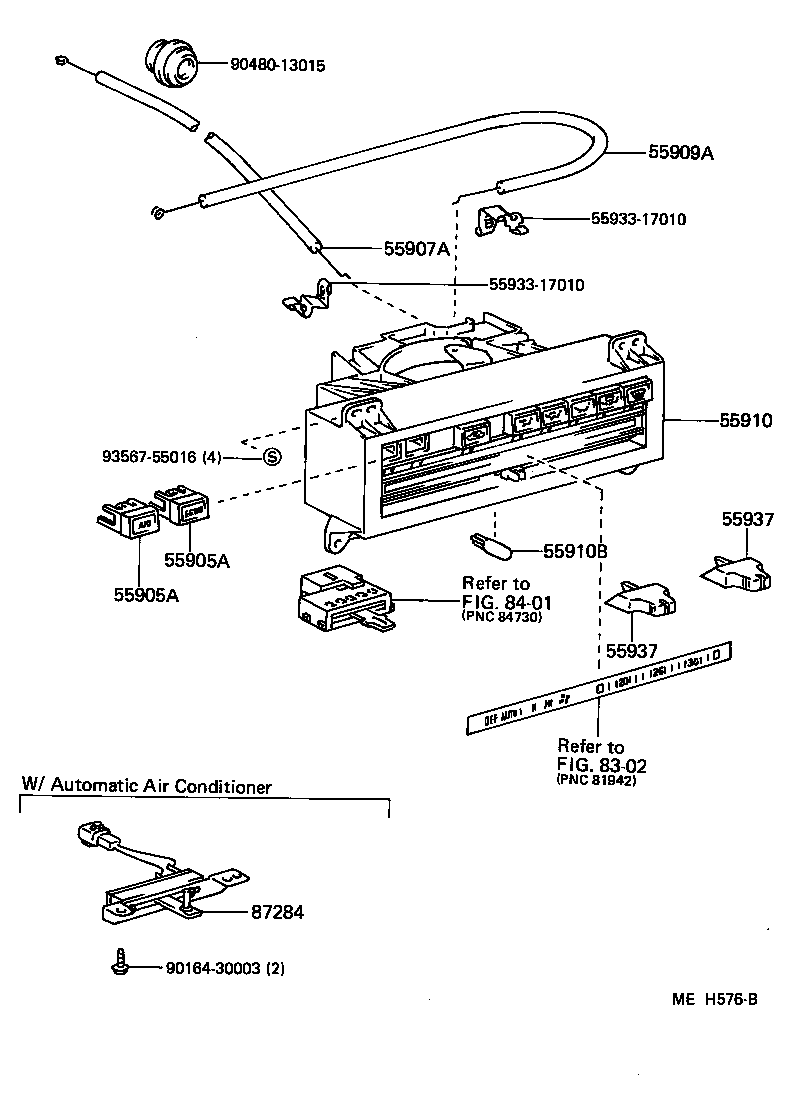

diagram 55905A 55905A 55907A 55909A 55910 55910B 5593317010 5593317010 55937 55937 8302 8401 87284 9016430003 9048013015 9356755016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-89110

AW1#

 3
55905-17020

AW11

ECON

 1
55905-17020

AW1#

ECON

 1
55905-17010

AW11

A/C

 1
55905-17010

AW1#

A/C

 1
55905A - KNOB, HEATER CONTROL
55905-89110

AW1#

 3
55905-17020

AW11

ECON

 1
55905-17020

AW1#

ECON

 1
55905-17010

AW11

A/C

 1
55905-17010

AW1#

A/C

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-17010

AW1#

 1
55907-17011

AW1#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-17010

AW1#

 1
55909-17011

AW1#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-17030

AW1#

 1
55910-17040

AW1#

ｵ-ﾄｴｱｺﾝ

 1
55910-17010

AW1#

 1
55910B - BULB, HEATER CONTROL
90010-01017

AW1#

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-17030

AW1#

 2
55905-17030

AW11

 2
55937 - KNOB, HEATER CONTROL LEVER
55905-17030

AW1#

 2
55905-17030

AW11

 2
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-17030

AW11

 1
88032-17011

AW11

 1
Common parts
55933-17010
90164-30003
90480-13015
93567-55016
Linked diagrams
8302
8401
