AW11-WCPQF (1984)

Toyota Mr2

Production Jun 1984 - Dec 1989
Engine 4AGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )

Click highlighted areas on diagram

diagram 64401 64401A 64461 64501 64502 64550 64602 64606 64606A 64606A 64607 64607A 64620 64620A 64645 7507 7601 8271114350 9010506037 9010506063 9011908267 9017908096 9017908096 9162140612 9162140612 9165140612 9166140612 9166140612
Part # Description Qty Price

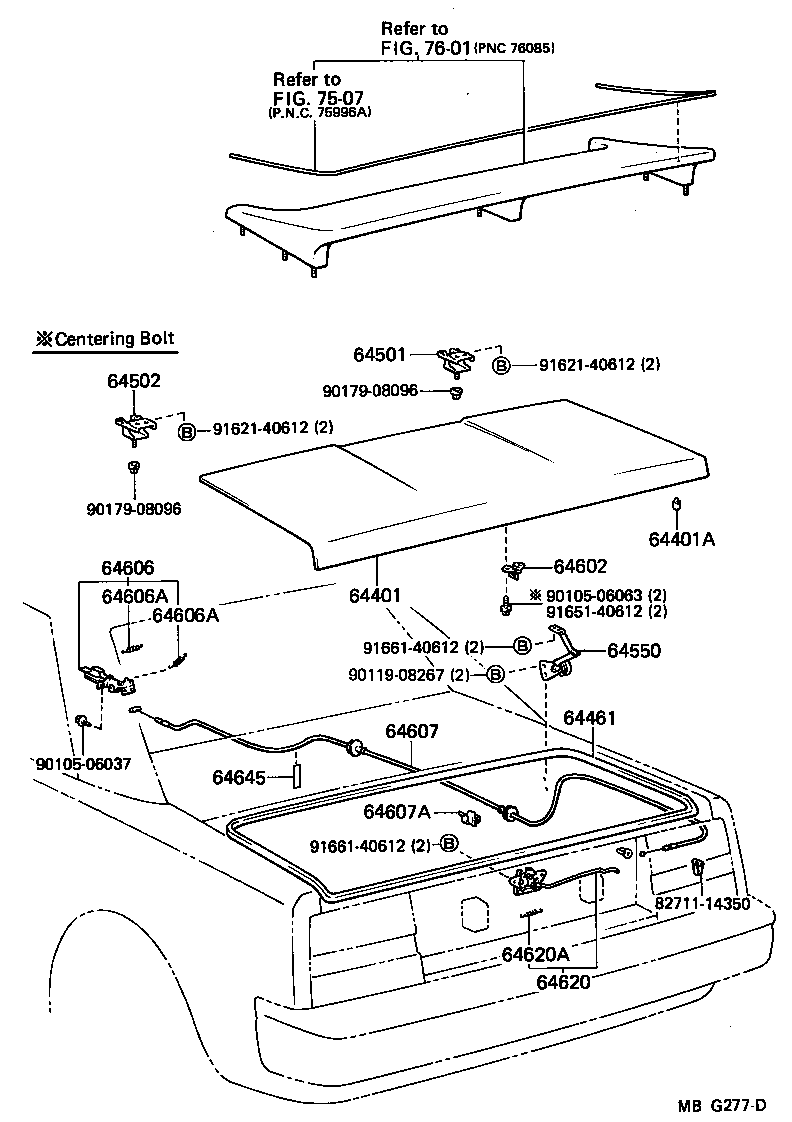

64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-17030

AW1#

W/SPOILER

 1
64401-17051

AW1#

W/SPOILER

 1
64401-17010

AW1#

 1
64401-17051

AW11

ｱﾘ(ｽﾎﾟｲﾗ-)

 1
64401-17050

AW1#

W/SPOILER

 1
64401-17020

AW1#

 1
64401-17051

AW11

ｱﾘ(ｽﾎﾟｲﾗ-)

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09005

AW1#

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-17010

AW1#

 1
64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-17010

AW1#

 1
64510-17011

AW1#

 1
64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64510-17010

AW1#

 1
64510-17011

AW1#

 1
64550 - BALANCER ASSY, LUGGAGE COMPARTMENT DOOR
64550-17020

AW1#

W/SPOILER

 1
64550-17010

AW1#

 1
64550-17020

AW11

ｱﾘ(ｽﾎﾟｲﾗ-)

 1
64550-17020

AW1#

ｱﾘ(ｽﾎﾟｲﾗ-)

 1
64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64620-17010

AW1#

 1
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-17010

AW1#

 1
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004

AW1#

 2
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004

AW1#

 2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-17010

AW1#

 1
64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
90467-09031

AW1#

 1
64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-17010

AW1#

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90506-07017

AW1#

 1
90506-07011

AW1#

 1
64645 - TAPE, LUGGAGE LOCK CONTROL CABLE
64645-17010

AW1#

 1
Common parts
82711-14350
90105-06037
90105-06063
90119-08267
90179-08096
91621-40612
91651-40612
91661-40612
Linked diagrams
7507
7601
