AW11-WCPQF (1984)
Toyota Mr2
Production
Jun 1984
-
Dec 1989
Engine
4AGELU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

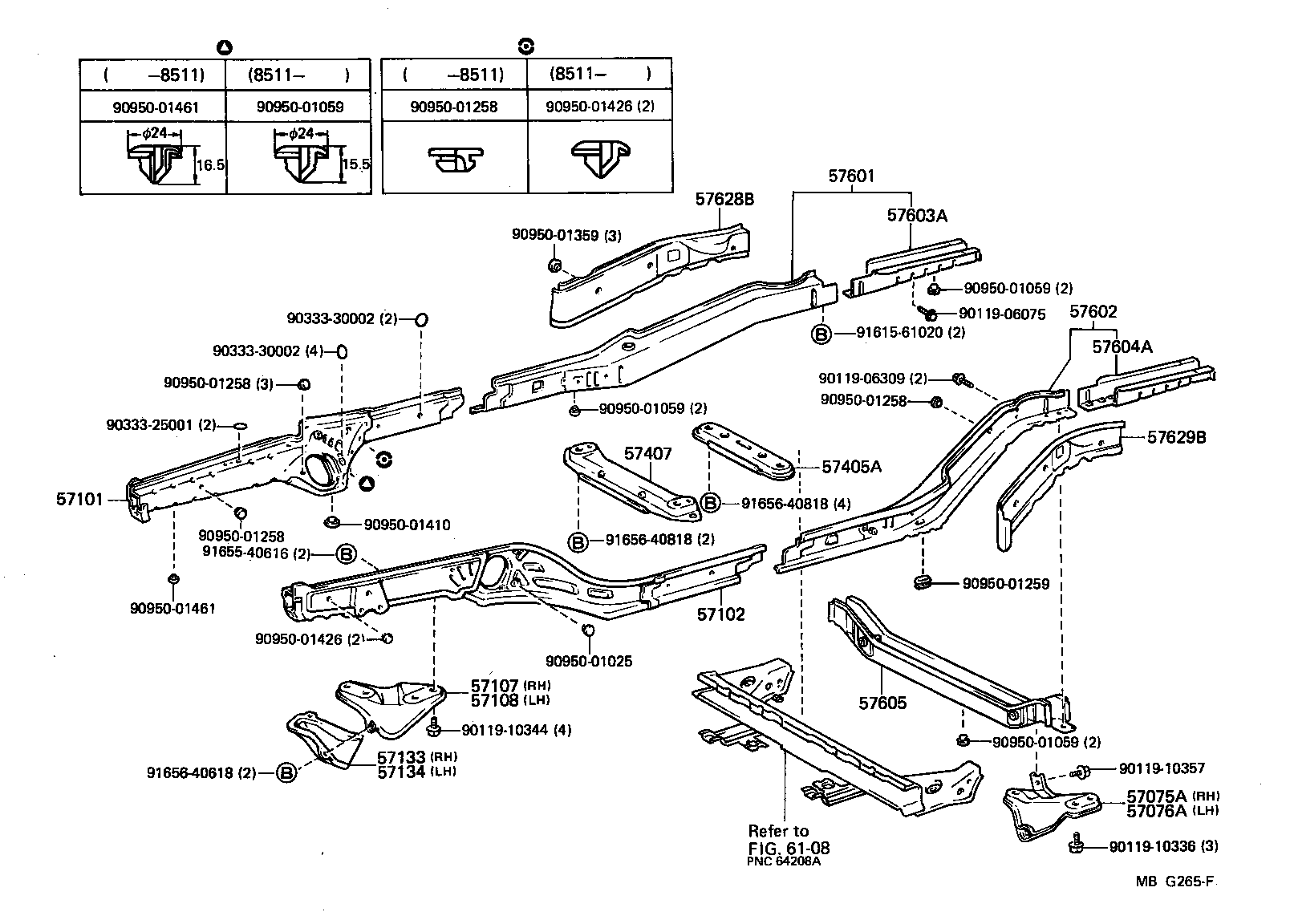

(8406-8608)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57075A - BRACKET SUB-ASSY, REAR SUSPENSION ARM, RH | ||||
| 57075-17010 |
AW1# |
1 | ||
| 57075-17011 |
AW1# |
1 | ||
| 57076A - BRACKET SUB-ASSY, REAR SUSPENSION ARM, LH | ||||
| 57076-17010 |
AW1# |
1 | ||
| 57076-17011 |
AW1# |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-17900 |
AW1# |
1 | ||
| 57101-17903 |
AW1#..CP |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-17904 |
AW1#..CP |
1 | ||
| 57102-17900 |
AW1# |
1 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-17020 |
AW1# COLD SPEC |
1 | ||
| 57107-17020 |
AW1# |
1 | ||
| 57107-17020 |
AW1# |
1 | ||
| 57107-17010 |
AW1# |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-17020 |
AW1# |
1 | ||
| 57108-17020 |
AW1# COLD SPEC |
1 | ||
| 57108-17010 |
AW1# |
1 | ||
| 57108-17020 |
AW1# |
1 | ||
| 57133 - PROTECTOR, STRUT BAR BRACKET, RH | ||||
| 57133-17010 |
AW1# ｶﾝﾚﾝﾁ ｼﾖｳ |
1 | ||
| 57133-17010 |
AW1# COLD SPEC |
1 | ||
| 57134 - PROTECTOR, STRUT BAR BRACKET, LH | ||||
| 57134-17010 |
AW1# ｶﾝﾚﾝﾁ ｼﾖｳ |
1 | ||
| 57134-17010 |
AW1# COLD SPEC |
1 | ||
| 57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2 | ||||
| 57459-17010 |
AW1# |
1 | ||
| 57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1 | ||||
| 57408-17010 |
AW1# |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-17903 |
AW1#..CP |
1 | ||
| 57601-17900 |
AW1# |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-17900 |
AW1# |
1 | ||
| 57602-17904 |
AW1#..CP..4FC..(CBR,TWC) |
1 | ||
| 57602-17904 |
AW1#..CP..4FC;AW11..CP..5F..SPC |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-17011 |
AW1#..CP |
1 | ||
| 57603-17010 |
AW1# |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-17011 |
AW1#..CP |
1 | ||
| 57604-17010 |
AW1# |
1 | ||
| 57605 - CROSSMEMBER SUB-ASSY, REAR | ||||
| 57605-17011 |
AW1# |
1 | ||
| 57605-17011 |
AW1#..CBR,TWC |
1 | ||
| 57605-17010 |
AW1# |
1 | ||
| 57628B - PLATE, REAR FLOOR SIDE MEMBER, RH | ||||
| 57628-17010 |
AW1#..CP |
1 | ||
| 57628-17020 |
AW1# |
1 | ||
| 57629B - PLATE, REAR FLOOR SIDE MEMBER, LH | ||||
| 57629-17010 |
AW1#..CP |
1 | ||
| 57629-17020 |
AW1# |
1 | ||
| Common parts | ||||
| 90119-06075 | ||||
| 90119-06309 | ||||
| 90119-10336 | ||||
| 90119-10344 | ||||
| 90119-10357 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90950-01025 | ||||
| 90950-01059 | ||||
| 90950-01258 | ||||
| 90950-01259 | ||||
| 90950-01359 | ||||
| 90950-01410 | ||||
| 90950-01426 | ||||
| 90950-01461 | ||||
| 91615-61020 | ||||
| 91655-40616 | ||||
| 91656-40618 | ||||
| 91656-40818 | ||||
| Linked diagrams | ||||
| 6108 | ||||

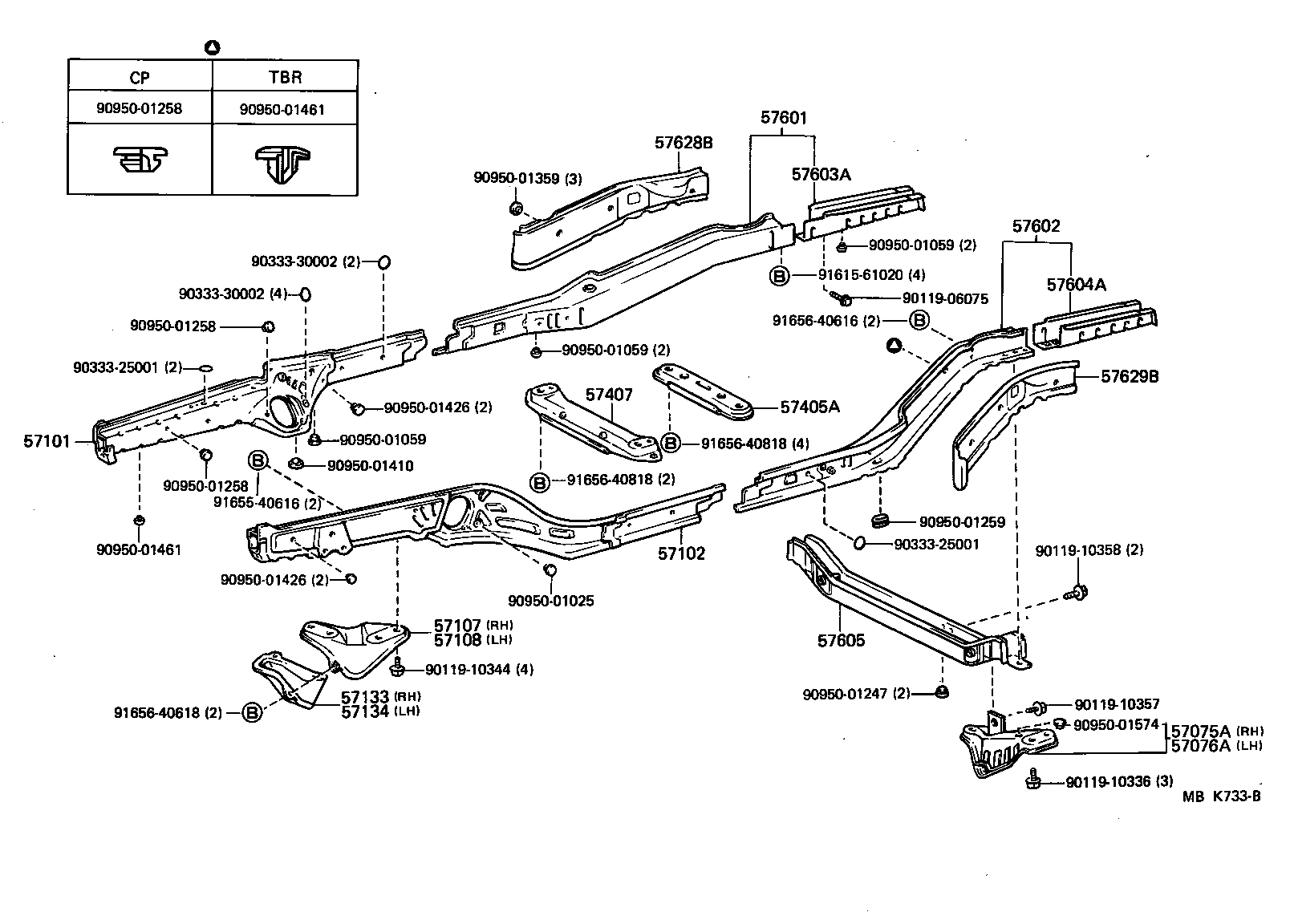

(8608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57075A - BRACKET SUB-ASSY, REAR SUSPENSION ARM, RH | ||||
| 57075-17010 |
AW1# |
1 | ||
| 57075-17011 |
AW1# |
1 | ||
| 57076A - BRACKET SUB-ASSY, REAR SUSPENSION ARM, LH | ||||
| 57076-17010 |
AW1# |
1 | ||
| 57076-17011 |
AW1# |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-17900 |
AW1# |
1 | ||
| 57101-17903 |
AW1#..CP |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-17904 |
AW1#..CP |
1 | ||
| 57102-17900 |
AW1# |
1 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-17020 |
AW1# COLD SPEC |
1 | ||
| 57107-17020 |
AW1# |
1 | ||
| 57107-17020 |
AW1# |
1 | ||
| 57107-17010 |
AW1# |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-17020 |
AW1# |
1 | ||
| 57108-17020 |
AW1# COLD SPEC |
1 | ||
| 57108-17010 |
AW1# |
1 | ||
| 57108-17020 |
AW1# |
1 | ||
| 57133 - PROTECTOR, STRUT BAR BRACKET, RH | ||||
| 57133-17010 |
AW1# ｶﾝﾚﾝﾁ ｼﾖｳ |
1 | ||
| 57133-17010 |
AW1# COLD SPEC |
1 | ||
| 57134 - PROTECTOR, STRUT BAR BRACKET, LH | ||||
| 57134-17010 |
AW1# ｶﾝﾚﾝﾁ ｼﾖｳ |
1 | ||
| 57134-17010 |
AW1# COLD SPEC |
1 | ||
| 57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2 | ||||
| 57459-17010 |
AW1# |
1 | ||
| 57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1 | ||||
| 57408-17010 |
AW1# |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-17903 |
AW1#..CP |
1 | ||
| 57601-17900 |
AW1# |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-17900 |
AW1# |
1 | ||
| 57602-17904 |
AW1#..CP..4FC..(CBR,TWC) |
1 | ||
| 57602-17904 |
AW1#..CP..4FC;AW11..CP..5F..SPC |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-17011 |
AW1#..CP |
1 | ||
| 57603-17010 |
AW1# |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-17011 |
AW1#..CP |
1 | ||
| 57604-17010 |
AW1# |
1 | ||
| 57605 - CROSSMEMBER SUB-ASSY, REAR | ||||
| 57605-17011 |
AW1# |
1 | ||
| 57605-17011 |
AW1#..CBR,TWC |
1 | ||
| 57605-17010 |
AW1# |
1 | ||
| 57628B - PLATE, REAR FLOOR SIDE MEMBER, RH | ||||
| 57628-17010 |
AW1#..CP |
1 | ||
| 57628-17020 |
AW1# |
1 | ||
| 57629B - PLATE, REAR FLOOR SIDE MEMBER, LH | ||||
| 57629-17010 |
AW1#..CP |
1 | ||
| 57629-17020 |
AW1# |
1 | ||
| Common parts | ||||
| 90119-06075 | ||||
| 90119-10336 | ||||
| 90119-10344 | ||||
| 90119-10357 | ||||
| 90119-10358 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90950-01025 | ||||
| 90950-01059 | ||||
| 90950-01247 | ||||
| 90950-01258 | ||||
| 90950-01259 | ||||
| 90950-01359 | ||||
| 90950-01410 | ||||
| 90950-01426 | ||||
| 90950-01461 | ||||
| 90950-01574 | ||||
| 91615-61020 | ||||
| 91655-40616 | ||||
| 91656-40616 | ||||
| 91656-40618 | ||||
| 91656-40818 | ||||
