AW11-WCMQR (1986)
Toyota Mr2
Production
Aug 1986
-
Dec 1989
Engine
4AGZE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

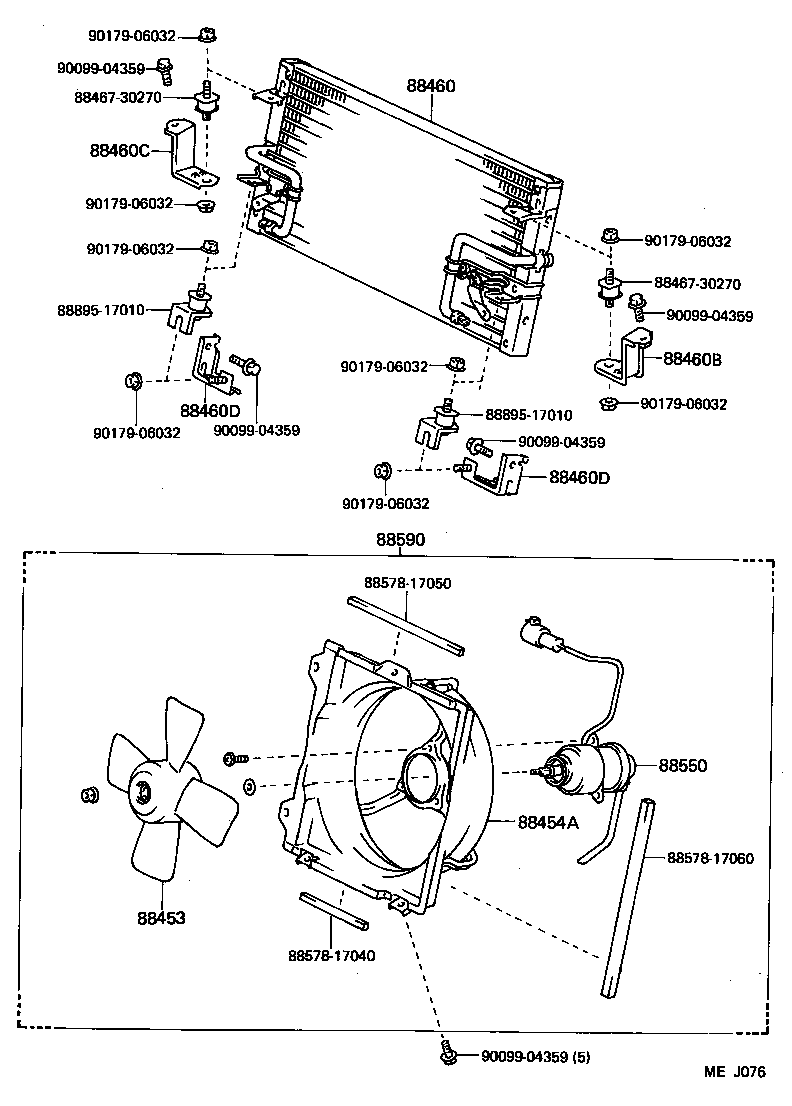

ILLUST NO. 1 OF 2(8608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 16361-16020 |
AW11..5F |
1 | ||
| 16361-16020 |
AW1#..5F |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88590-17030 |
AW1#..5F |
1 | ||
| 88590-17090 |
AW11..5F |
1 | ||
| 88590-17090 |
AW1#..5F |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-17040 |
AW1# |
1 | ||
| 88460-17020 |
AW1# |
1 | ||
| 88460-17040 |
AW11 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-17190 |
AW1# |
1 | ||
| 88688-17020 |
AW1# |
1 | ||
| 88688-17190 |
AW11 |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-17180 |
AW1# |
1 | ||
| 88688-17010 |
AW1# |
1 | ||
| 88688-17180 |
AW11 |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-17200 |
AW1# RH |
1 | ||
| 88688-17030 |
AW1# |
2 | ||
| 88688-17210 |
AW1# LH |
1 | ||
| 88688-17210 |
AW11 LH |
1 | ||
| 88688-17200 |
AW11 RH |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-17200 |
AW1# RH |
1 | ||
| 88688-17030 |
AW1# |
2 | ||
| 88688-17210 |
AW1# LH |
1 | ||
| 88688-17210 |
AW11 LH |
1 | ||
| 88688-17200 |
AW11 RH |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-16010 |
AW1#..5F |
1 | ||
| 16363-16010 |
AW11..5F |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-17010 |
AW1#..5F |
1 | ||
| 88590-17070 |
AW1#..5F |
1 | ||
| 88590-17070 |
AW11..5F |
1 | ||
| Common parts | ||||
| 88467-30270 | ||||
| 88578-17040 | ||||
| 88578-17050 | ||||
| 88578-17060 | ||||
| 88895-17010 | ||||
| 90099-04359 | ||||
| 90179-06032 | ||||
