AW11-WCMQR (1986)
Toyota Mr2
Production
Aug 1986
-
Dec 1989
Engine
4AGZE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )

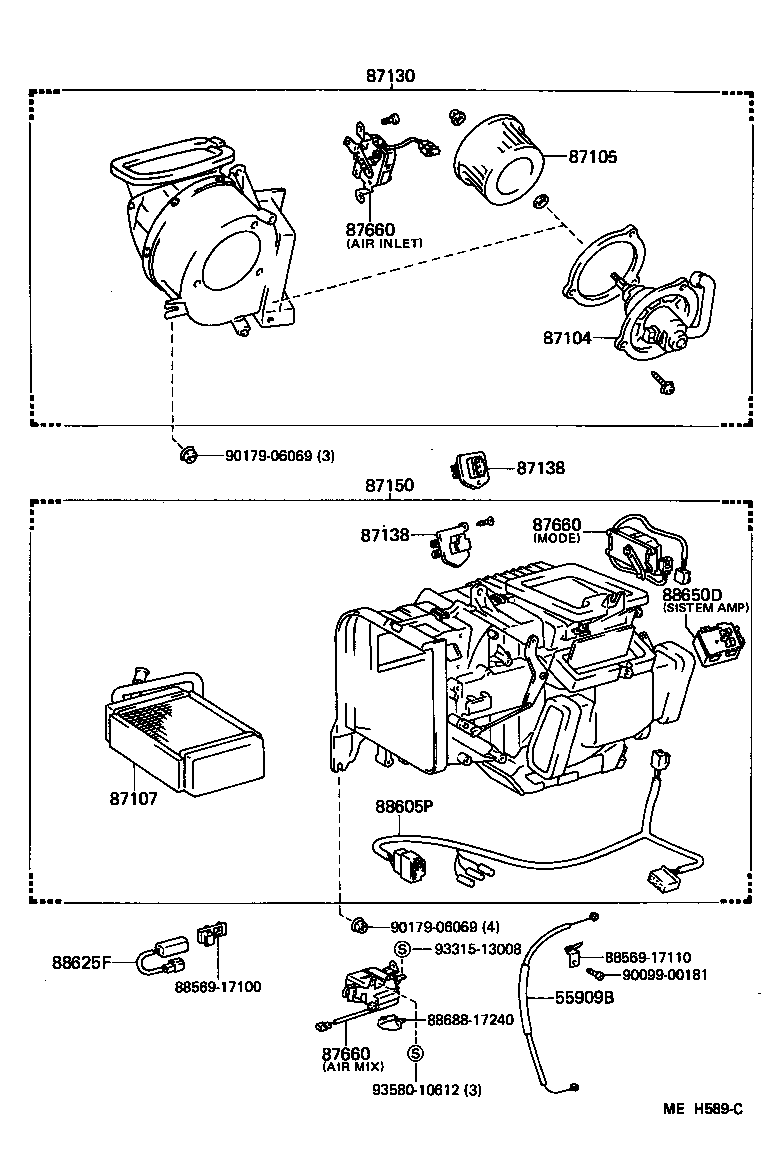

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55909B - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-17030 |
AW11 W/*AAC |
1 | ||
| 55909-17030 |
AW11 |
1 | ||
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-17020 |
AW1# |
1 | ||
| 87104-17050 |
AW1# |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14030 |
AW1# |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-17010 |
AW1# |
1 | ||
| 87107-17020 |
AW1# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107-17020 |
AW1# COLD SPEC |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-17020 |
AW1# |
1 | ||
| 87130-17050 |
AW1# |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 88635-17030 |
AW11 W/*AAC |
1 | ||
| 88635-17030 |
AW11 ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 87138-17030 |
AW1# |
1 | ||
| 88635-17020 |
AW11 W/*AAC |
1 | ||
| 87138-17010 |
AW1# |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 88635-17030 |
AW11 W/*AAC |
1 | ||
| 88635-17030 |
AW11 ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 87138-17030 |
AW1# |
1 | ||
| 88635-17020 |
AW11 W/*AAC |
1 | ||
| 87138-17010 |
AW1# |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-17100 |
AW1# |
1 | ||
| 87150-17020 |
AW1# COLD SPEC |
1 | ||
| 87150-17110 |
AW1# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-17110 |
AW1# COLD SPEC |
1 | ||
| 87150-17010 |
AW1# |
1 | ||
| 87660 - SERVO ASSY, AIR CONDITIONER | ||||
| 88660-17010 |
AW11 |
1 | ||
| 87106-17060 |
AW11 W/*AAC,AIR MIX |
1 | ||
| 87106-17030 |
AW1# MODE |
1 | ||
| 87106-17010 |
AW1# |
1 | ||
| 87106-17010 |
AW1# AIR INLET |
1 | ||
| 87106-17030 |
AW1# ﾓｰﾄﾞ |
1 | ||
| 87106-17060 |
AW11 ｱﾘ(ｵ-ﾄｴｱｺﾝ),ｴｱﾐｯｸｽ |
1 | ||
| 87660 - SERVO ASSY, AIR CONDITIONER | ||||
| 88660-17010 |
AW11 |
1 | ||
| 87106-17060 |
AW11 W/*AAC,AIR MIX |
1 | ||
| 87106-17030 |
AW1# MODE |
1 | ||
| 87106-17010 |
AW1# |
1 | ||
| 87106-17010 |
AW1# AIR INLET |
1 | ||
| 87106-17030 |
AW1# ﾓｰﾄﾞ |
1 | ||
| 87106-17060 |
AW11 ｱﾘ(ｵ-ﾄｴｱｺﾝ),ｴｱﾐｯｸｽ |
1 | ||
| 87660 - SERVO ASSY, AIR CONDITIONER | ||||
| 88660-17010 |
AW11 |
1 | ||
| 87106-17060 |
AW11 W/*AAC,AIR MIX |
1 | ||
| 87106-17030 |
AW1# MODE |
1 | ||
| 87106-17010 |
AW1# |
1 | ||
| 87106-17010 |
AW1# AIR INLET |
1 | ||
| 87106-17030 |
AW1# ﾓｰﾄﾞ |
1 | ||
| 87106-17060 |
AW11 ｱﾘ(ｵ-ﾄｴｱｺﾝ),ｴｱﾐｯｸｽ |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-17130 |
AW1# |
1 | ||
| 88625F - SENSOR, TEMPERATURE | ||||
| 88625-17070 |
AW11 |
1 | ||
| 88650D - AMPLIFIER ASSY | ||||
| 87161-17010 |
AW1# SISTEM AMP |
1 | ||
| 87161-17010 |
AW1# |
1 | ||
| Common parts | ||||
| 88569-17100 | ||||
| 88569-17110 | ||||
| 88688-17240 | ||||
| 90099-00181 | ||||
| 90179-06069 | ||||
| 93315-13008 | ||||
| 93580-10612 | ||||
