AW11-WCMQR (1986)

Toyota Mr2

Production Aug 1986 - Dec 1989
Engine 4AGZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

Click highlighted areas on diagram

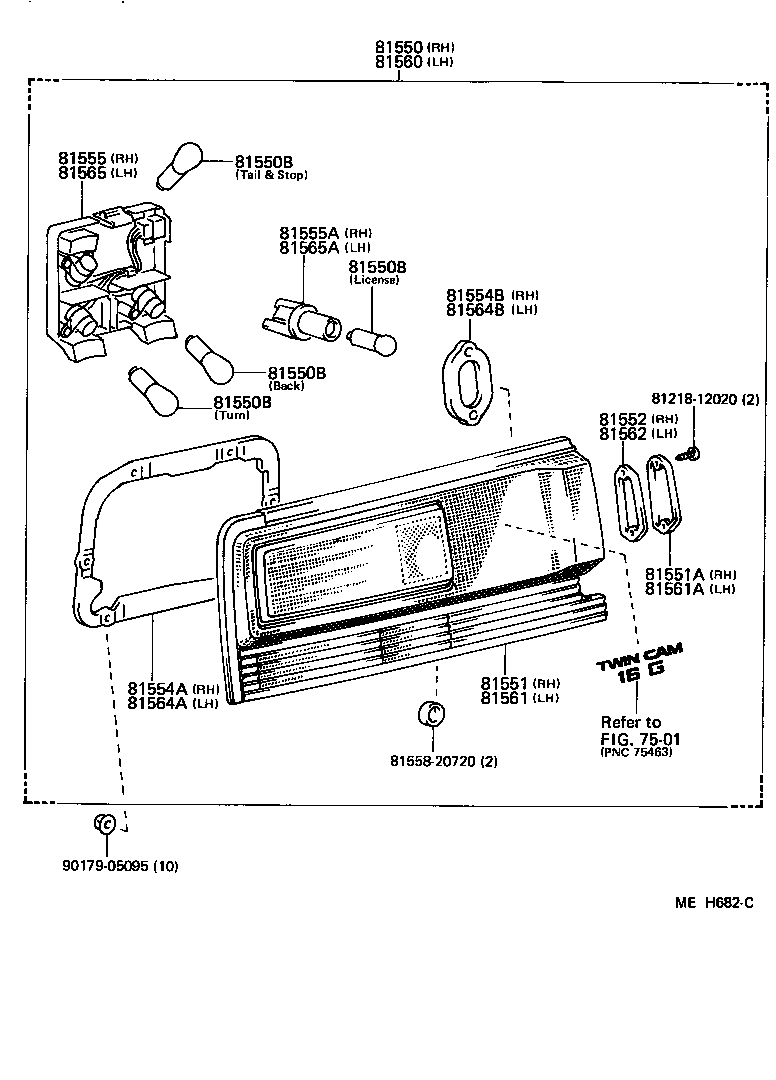

diagram 7501 8121812020 81550 81550B 81550B 81550B 81550B 81551 81551A 81552 81554A 81554B 81555 81555A 8155820720 81560 81561 81561A 81562 81564A 81564B 81565 81565A 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-17040

AW1#

 1
81550-80220

AW1#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AW1#

12V 23W,12V 23W(TURN & BACK)

 4
99132-21210

AW1#

12V 21/5W,12V 21/5W(TAIL & STOP)

 2
99132-11075

AW1#

12V 7.5W,12V 7.5W(LICENSE)

 2
99132-11075

AW1#

12V 7.5W

 2
99132-21210

AW1#

12V 21/5W

 2
99132-11230

AW1#

12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AW1#

12V 23W,12V 23W(TURN & BACK)

 4
99132-21210

AW1#

12V 21/5W,12V 21/5W(TAIL & STOP)

 2
99132-11075

AW1#

12V 7.5W,12V 7.5W(LICENSE)

 2
99132-11075

AW1#

12V 7.5W

 2
99132-21210

AW1#

12V 21/5W

 2
99132-11230

AW1#

12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AW1#

12V 23W,12V 23W(TURN & BACK)

 4
99132-21210

AW1#

12V 21/5W,12V 21/5W(TAIL & STOP)

 2
99132-11075

AW1#

12V 7.5W,12V 7.5W(LICENSE)

 2
99132-11075

AW1#

12V 7.5W

 2
99132-21210

AW1#

12V 21/5W

 2
99132-11230

AW1#

12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AW1#

12V 23W,12V 23W(TURN & BACK)

 4
99132-21210

AW1#

12V 21/5W,12V 21/5W(TAIL & STOP)

 2
99132-11075

AW1#

12V 7.5W,12V 7.5W(LICENSE)

 2
99132-11075

AW1#

12V 7.5W

 2
99132-21210

AW1#

12V 21/5W

 2
99132-11230

AW1#

12V 23W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-17040

AW1#

 1
81551-17010

AW1#

 1
81551A - LENS, REAR COMBINATION LAMP, RH
81556-17040

AW1#

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-17040

AW1#

 1
81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH
81554-17010

AW1#

 1
81554B - GASKET, REAR COMBINATION LAMP BODY, NO.2 RH
81554-17040

AW1#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-17040

AW1#

 1
81555-17010

AW1#

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81275-12240

AW1#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-17080

AW11..5F..SPC

SUPER EDITION

 1
81560-17041

AW11

 1
81560-80235

AW11

 1
81560-17090

AW1#

SUPER EDITION

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-17040

AW11

 1
81561-17041

AW11

 1
81561A - LENS, REAR COMBINATION LAMP, LH
81566-17011

AW1#

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-17040

AW1#

 1
81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH
81554-17010

AW1#

 1
81564B - GASKET, REAR COMBINATION LAMP BODY, NO.2 LH
81554-17040

AW1#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-17010

AW1#

 1
81565-17011

AW11

 1
81565-17011

AW1#

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81275-12240

AW1#

 1
Common parts
81218-12020
81558-20720
90179-05095
Linked diagrams
7501
