AW11-WCMQR (1986)
Toyota Mr2
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

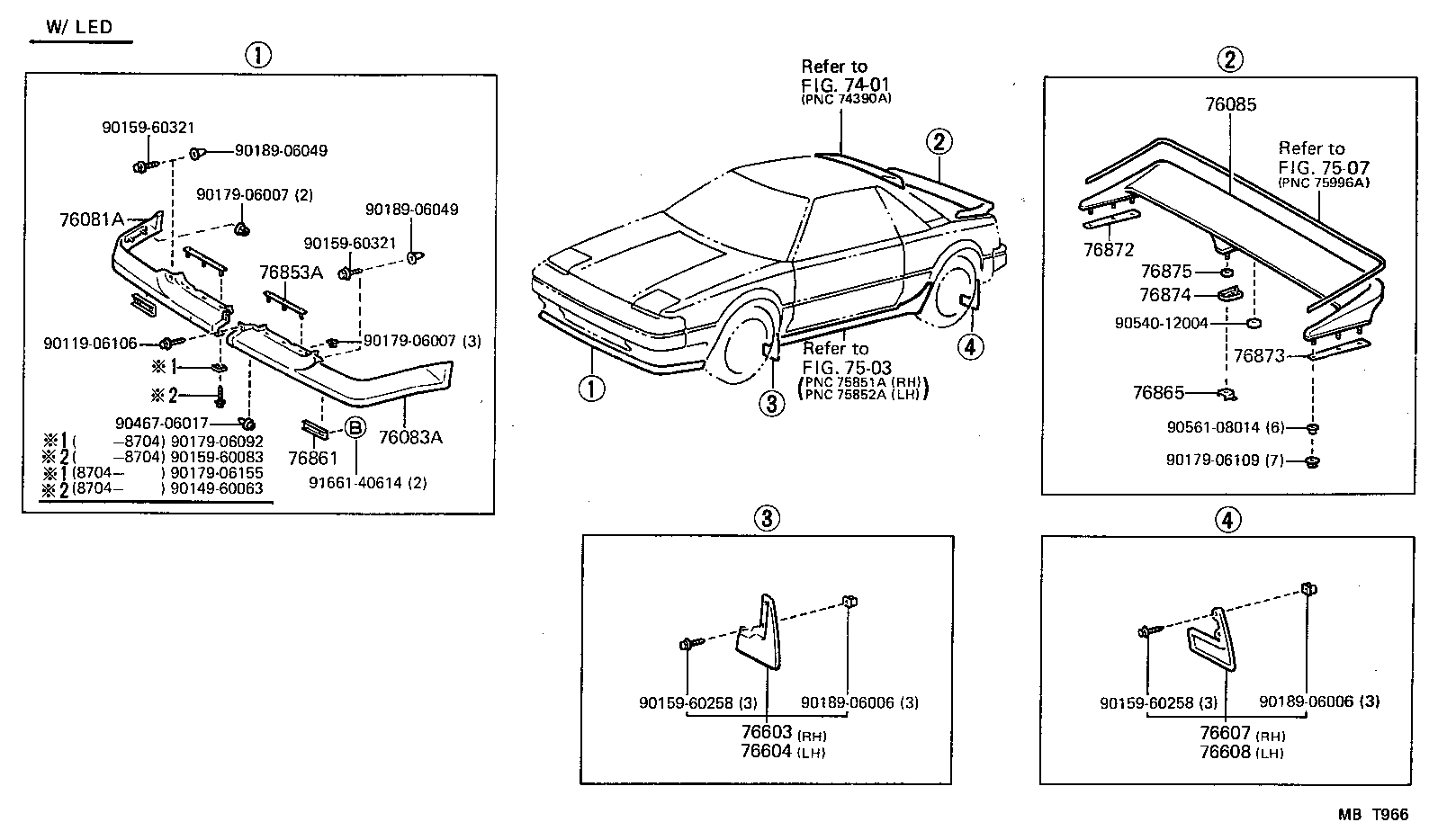

| 76081A - SPOILER SUB-ASSY, FRONT RH | ||||
| 76081-1701023 |
AW1# GRAY-M,GRAY M,21E ,167 |
1 | ||
| 76081-1701002 |
AW1# SUPER RED 2,3E5 |
1 | ||
| 76081-1701008 |
AW1# SUPER WHITE 2,SUPER WHITE 2,040 |
1 | ||
| 76081-1701004 |
AW11..SPC MEDIUM BLUE MICA,MEDIUM BLUE METALLIC,8E3 |
1 | ||
| 76081-1701013 |
AW1# MEDIUM GRAY METALLIC,2Z9 |
1 | ||
| 76081-1701002 |
AW1# SUPER RED 2,SUPER RED 2,3E5 |
1 | ||
| 76081-1701005 |
AW1# BEIGE-M,BEIGE METALLIC,28B |
1 | ||
| 76081-1701023 |
AW1# GRAY-M,GRAY M,21E ,167 |
1 | ||
| 76081-1701018 |
AW1# SUPER WHITE 3,043 |
1 | ||
| 76081-1701004 |
AW11..SPC MEDIUM BLUE METALLIC,8E3 |
1 | ||
| 76081-1701022 |
AW1# RED MICA,3H4 |
1 | ||
| 76081-1701008 |
AW1# SUPER WHITE 2,040 |
1 | ||
| 76081-1701013 |
AW1# GRAY-M,MEDIUM GRAY METALLIC,2Z9 |
1 | ||
| 76081-1701005 |
AW11..5F..SPC ｽ-ﾊﾟ-ｴﾃﾞｲｼﾖﾝ,BEIGE-M,BEIGE METALLIC,22E |
1 | ||
| 76081-1701003 |
AW1# SUPER SILVER M,28J |
1 | ||
| 76083A - SPOILER SUB-ASSY, FRONT LH | ||||
| 76083-1701008 |
AW1# SUPER WHITE 2,SUPER WHITE 2,040 |
1 | ||
| 76083-1701002 |
AW1# SUPER RED 2,SUPER RED 2,3E5 |
1 | ||
| 76083-1701013 |
AW1# GRAY-M,MEDIUM GRAY METALLIC,2Z9 |
1 | ||
| 76083-1701008 |
AW1# SUPER WHITE 2,040 |
1 | ||
| 76083-1701002 |
AW1# SUPER RED 2,3E5 |
1 | ||
| 76083-1701004 |
AW11..SPC MEDIUM BLUE MICA,MEDIUM BLUE METALLIC,8E3 |
1 | ||
| 76083-1701005 |
AW11..5F..SPC ｽ-ﾊﾟ-ｴﾃﾞｲｼﾖﾝ,BEIGE-M,BEIGE METALLIC,22E |
1 | ||
| 76083-1701013 |
AW1# MEDIUM GRAY METALLIC,2Z9 |
1 | ||
| 76083-1701018 |
AW1# SUPER WHITE 3,043 |
1 | ||
| 76083-1701023 |
AW1# GRAY-M,GRAY M,21E ,167 |
1 | ||
| 76083-1701004 |
AW11..SPC MEDIUM BLUE METALLIC,8E3 |
1 | ||
| 76083-1701003 |
AW1# SUPER SILVER M,28J |
1 | ||
| 76083-1701022 |
AW1# RED MICA,3H4 |
1 | ||
| 76083-1701005 |
AW1# BEIGE-M,BEIGE METALLIC,28B |
1 | ||
| 76083-1701023 |
AW1# GRAY-M,GRAY M,21E ,167 |
1 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-1701001 |
AW1# BLACK,BLACK/GOLD |
1 | ||
| 76085-1701138 |
AW1# SUPER WHITE 2 & SILVER-M,SUPER WHITE 2,040 |
1 | ||
| 76085-1701148 |
AW1# WHITE & SILVER-M,WHITE,2Z9 |
1 | ||
| 76085-1701158 |
AW11..5F..SPC SUPER EDITION,WHITE,WHITE/DARK BEIGE M,22E |
1 | ||
| 76085-1701112 |
AW1# SUPER RED 2 & BEIGE-M,SUPER RED 2,3E5 |
1 | ||
| 76085-1701114 |
AW11..SPC MEDIUM BLUE MICA & BLUE-M,MEDIUM BLUE METALLIC,8E3 |
1 | ||
| 76085-1701112 |
AW11 SUPER RED 2,3E5 |
1 | ||
| 76085-1701127 |
AW1# D-GREEN-M & SILVER-M,DARK GREEN METALLIC,28B |
1 | ||
| 76085-1701114 |
AW11..SPC MEDIUM BLUE METALLIC,8E3 |
1 | ||
| 76085-1701110 |
AW11 SUPER WHITE 3,043 |
1 | ||
| 76085-1701138 |
AW11 SUPER WHITE 2,040 |
1 | ||
| 76085-1701123 |
AW1# GRAY-M,GRAY M,21E ,167 |
1 | ||
| 76085-1701148 |
AW11 WHITE,2Z9 |
1 | ||
| 76085-1701123 |
AW11 GRAY M,167 ,21E |
1 | ||
| 76085-17902 |
AW11 W/LED STOP LAMP |
1 | ||
| 76085-1701122 |
AW11 RED MICA,3H4 |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76603-19115 |
AW1# |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76604-19115 |
AW1# |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-19505 |
AW11 GRAY-M,167 ,21E |
1 | ||
| 76607-19415 |
AW11 BLUE MICA,8E3 |
1 | ||
| 76607-19335 |
AW11 MEDIUM GRAY-M,2Z9 |
1 | ||
| 76607-19335 |
AW11 MEDIUM GRAY-M,2Z9 |
1 | ||
| 76607-19405 |
AW11 BEIGE-M,28B |
1 | ||
| 76607-19505 |
AW11 GRAY-M,167 ,21E |
1 | ||
| 76607-19325 |
AW11 SUPER WHITE 2,040 |
1 | ||
| 76607-19405 |
AW11..5F..SPC SUPER EDITION,BEIGE-M,22E |
1 | ||
| 76607-19205 |
AW1# |
1 | ||
| 76607-19325 |
AW11 SUPER WHITE 2,040 |
1 | ||
| 76607-19295 |
AW11 SUPER RED 2,3E5 |
1 | ||
| 76607-19415 |
AW11 BLUE MICA,8E3 |
1 | ||
| 76607-19295 |
AW11 SUPER RED 2,3E5 |
1 | ||
| 76607-19565 |
AW11 8E4 |
1 | ||
| 76607-19545 |
AW11 BLACK,202 |
1 | ||
| 76607-19395 |
AW11 SUPER SILVER-M 2,166 ,28J |
1 | ||
| 76607-19345 |
AW11 BLACK LIMITED,204 |
1 | ||
| 76607-19555 |
AW11 LIGHT BLUE MICA-M,8G2 |
1 | ||
| 76607-19525 |
AW11 SUPER WHITE 3,043 |
1 | ||
| 76607-19535 |
AW11 RED MICA,3H4 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-19295 |
AW11 SUPER RED 2,3E5 |
1 | ||
| 76608-19325 |
AW11 SUPER WHITE 2,040 |
1 | ||
| 76608-19335 |
AW11 MEDIUM GRAY-M,2Z9 |
1 | ||
| 76608-19415 |
AW11 BLUE MICA,8E3 |
1 | ||
| 76608-19335 |
AW11 MEDIUM GRAY-M,2Z9 |
1 | ||
| 76608-19345 |
AW11 BLACK LIMITED,204 |
1 | ||
| 76608-19205 |
AW1# |
1 | ||
| 76608-19325 |
AW11 SUPER WHITE 2,040 |
1 | ||
| 76608-19505 |
AW11 GRAY-M,167 ,21E |
1 | ||
| 76608-19295 |
AW11 SUPER RED 2,3E5 |
1 | ||
| 76608-19545 |
AW11 BLACK,202 |
1 | ||
| 76608-19405 |
AW11 BEIGE-M,28B |
1 | ||
| 76608-19555 |
AW11 LIGHT BLUE MICA-M,8G2 |
1 | ||
| 76608-19405 |
AW11..5F..SPC ｽ-ﾊﾟ-ｴﾃﾞｲｼﾖﾝ,BEIGE-M,22E |
1 | ||
| 76608-19415 |
AW11 BLUE MICA,8E3 |
1 | ||
| 76608-19505 |
AW11 GRAY-M,167 ,21E |
1 | ||
| 76608-19395 |
AW11 SUPER SILVER-M 2,166 ,28J |
1 | ||
| 76608-19565 |
AW11 8E4 |
1 | ||
| 76608-19535 |
AW11 RED MICA,3H4 |
1 | ||
| 76608-19525 |
AW11 SUPER WHITE 3,043 |
1 | ||
| 76853A - RETAINER, FRONT SPOILER, UPPER NO.1 | ||||
| 76853-17010 |
AW1# |
2 | ||
| 76861 - RETAINER, FRONT SPOILER, LOWER NO.1 | ||||
| 76861-17011 |
AW1# |
2 | ||
| 76861-17010 |
AW1# |
1 | ||
| 76865 - RETAINER, REAR SPOILER, NO.1 | ||||
| 76865-17010 |
AW11 |
1 | ||
| 76865-17010 |
AW11 |
1 | ||
| 76865-17010 |
AW1# |
1 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-17010 |
AW11 |
1 | ||
| 76872-17010 |
AW11 |
1 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-17010 |
AW11 |
1 | ||
| 76873-17010 |
AW11 |
1 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-17020 |
AW11 |
1 | ||
| 76874-17020 |
AW11 |
1 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-17010 |
AW11 |
1 | ||
| 76875-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90119-06106 | ||||
| 90149-60063 | ||||
| 90159-60083 | ||||
| 90159-60258 | ||||
| 90159-60321 | ||||
| 90179-06007 | ||||
| 90179-06092 | ||||
| 90179-06109 | ||||
| 90179-06155 | ||||
| 90189-06006 | ||||
| 90189-06049 | ||||
| 90467-06017 | ||||
| 90540-12004 | ||||
| 90561-08014 | ||||
| 91661-40614 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 7503 | ||||
| 7507 | ||||
