AW11-WCMQR (1986)

Toyota Mr2

Production Aug 1986 - Dec 1989
Engine 4AGZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )4FC ; (8608- )5F..SPC

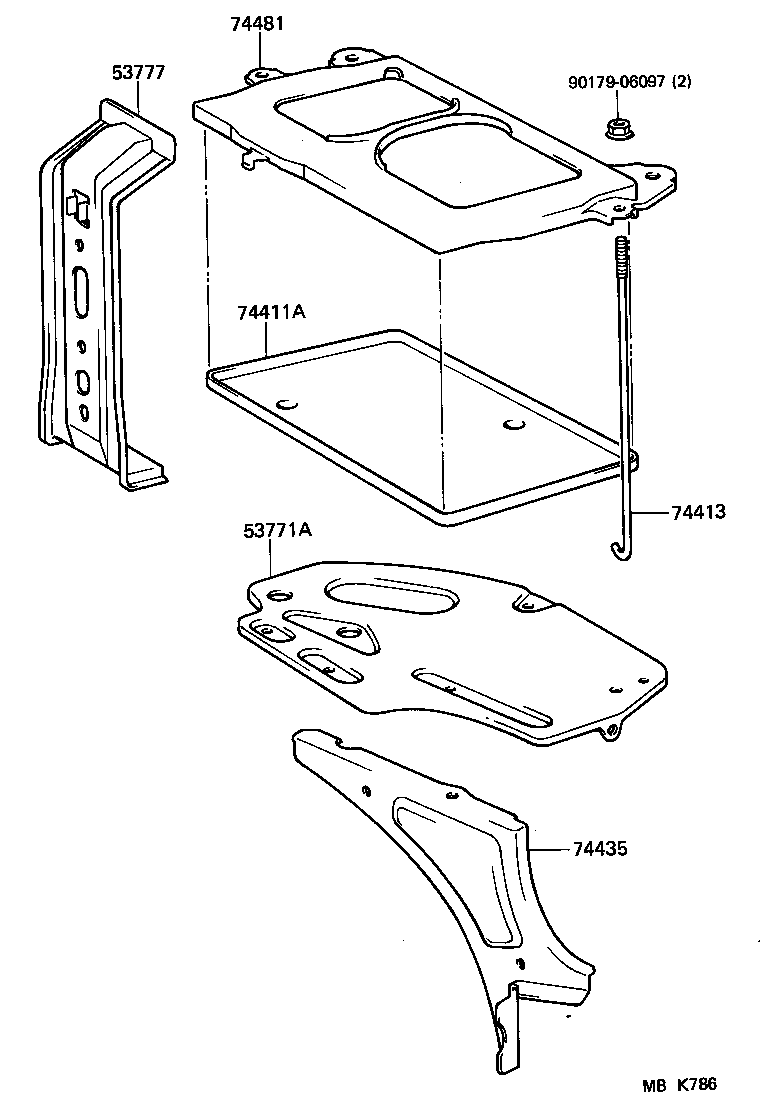

Click highlighted areas on diagram

diagram 53771A 53777 74411A 74413 74435 74481 9017906097
Part # Description Qty Price
53771A - SUPPORT, BATTERY CARRIER
53771-17020

AW1#..4FC;AW11..5F..SPC

 1
53771-17020

AW11..SPC

 1
53771-17010

AW1#

 1
53777 - SUPPORT, BATTERY CARRIER, NO.2
53777-17020

AW11..SPC

 1
53777-17010

AW1#

 1
53777-17020

AW1#..4FC;AW11..5F..SPC

 1
74411A - TRAY, BATTERY
74431-14050

AW1#

W/NS40ZAL

 1
74431-14050

AW1#..CBR,TWC;AW11..5F..SPC

 1
74431-14020

AW1#

W/46B24L

 1
74431-14050

AW11..5F..SPC

W/34B19L

 1
74431-14020

AW1#..CBR,TWC;AW11..5F..SPC

ｶﾝﾚｲﾁ ｼﾖｳ

 1
74431-14020

AW1#

W/NS60L

 1
74431-14020

AW1#..CBR,TWC;AW11..5F..SPC

ｶﾝﾚｲﾁ ｼﾖｳ

 1
74413 - BOLT, BATTERY CLAMP
74451-16010

AW1#

 1
74451-16010

AW1#..4FC;AW11..5F..SPC

 2
74435 - SUPPORT, BATTERY TRAY, NO.3
74435-17010

AW11..SPC

 1
74435-17010

AW1#..4FC;AW11..5F..SPC

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-17010

AW1#

 1
74404-17050

AW11..SPC

W/46B24L

 1
74404-17040

AW11..5F..SPC

W/39B19L

 1
74404-17050

AW11..5F..SPC;AW1#..4FC..(CBR,TWC)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
74404-17050

AW11..5F..SPC;AW1#..4FC..(CBR,TWC)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
74404-17040

AW11..5F..SPC;AW1#..4FC..(CBR,TWC)

 1
Common parts
90179-06097
