AW11-WCMQR (1986)
Toyota Mr2
Production
Aug 1986
-
Dec 1989
Engine
4AGZE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )

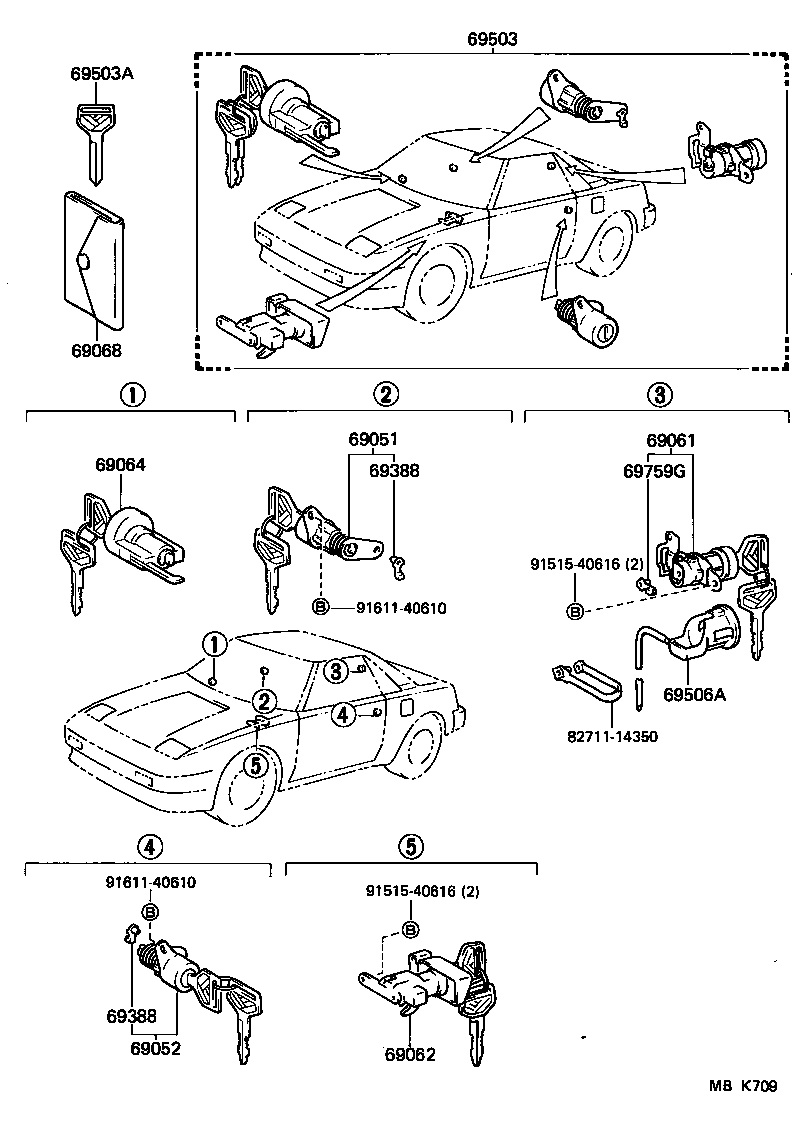

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-17010 |
AW1# |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-17010 |
AW1# |
1 | ||
| 69061 - CYLINDER & KEY SET, LUGGAGE LOCK | ||||
| 69055-17011 |
AW1# |
1 | ||
| 69055-17010 |
AW1# |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-1701004 |
AW1# DARK BLUE,TRIM8# |
1 | ||
| 69056-1701004 |
AW1# BLUE,DARK BLUE |
1 | ||
| 69056-1701001 |
AW1# BLACK,BLACK |
1 | ||
| 69056-1701001 |
AW1# BLACK,TRIM2# |
1 | ||
| 69056-1701011 |
AW1# BLACK,TRIM2# |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-10140 |
AW1# |
1 | ||
| 69057-17020 |
AW1# |
1 | ||
| 69068 - COVER SUB-ASSY, KEY | ||||
| 69555-17010 |
AW1# |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-30050 |
AW1# LH |
1 | ||
| 69759-30040 |
AW1# RH |
1 | ||
| 69759-30050 |
AW1# 左側 |
1 | ||
| 69759-30040 |
AW1# 右側 |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-30050 |
AW1# LH |
1 | ||
| 69759-30040 |
AW1# RH |
1 | ||
| 69759-30050 |
AW1# 左側 |
1 | ||
| 69759-30040 |
AW1# 右側 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-17050 |
AW1# |
1 | ||
| 69005-1705204 |
AW1# BLUE,DARK BLUE |
1 | ||
| 69005-1705205 |
AW1# BEIGE,DARK BEIGE |
1 | ||
| 69005-1705105 |
AW1# BEIGE,DARK BEIGE |
1 | ||
| 69005-1705104 |
AW1# BLUE,DARK BLUE |
1 | ||
| 69005-1705201 |
AW1# BLACK,BLACK |
1 | ||
| 69005-1705204 |
AW1# DARK BLUE,TRIM8# |
1 | ||
| 69005-1705211 |
AW1# BLACK,TRIM2# |
1 | ||
| 69005-1705101 |
AW1# BLACK,BLACK |
1 | ||
| 69005-1705201 |
AW1# BLACK,TRIM2# |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00094 |
AW1# ｻﾌﾞｷｰ,SUB |
1 | ||
| 90999-00085 |
AW1# ﾏｽﾀｰｷｰ,MASTER |
1 | ||
| 90999-00128 |
AW1# ﾏｽﾀｰｷｰ,*68付き,MASTER,W/PROTECTOR |
1 | ||
| 90999-00094 |
AW1# ｻﾌﾞｷｰ |
1 | ||
| 90999-00085 |
AW1# ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00128 |
AW1# ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69506A - HOSE SUB-ASSY, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69506-17010 |
AW1# |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-24090 |
AW1# |
1 | ||
| Common parts | ||||
| 82711-14350 | ||||
| 91515-40616 | ||||
| 91611-40610 | ||||
