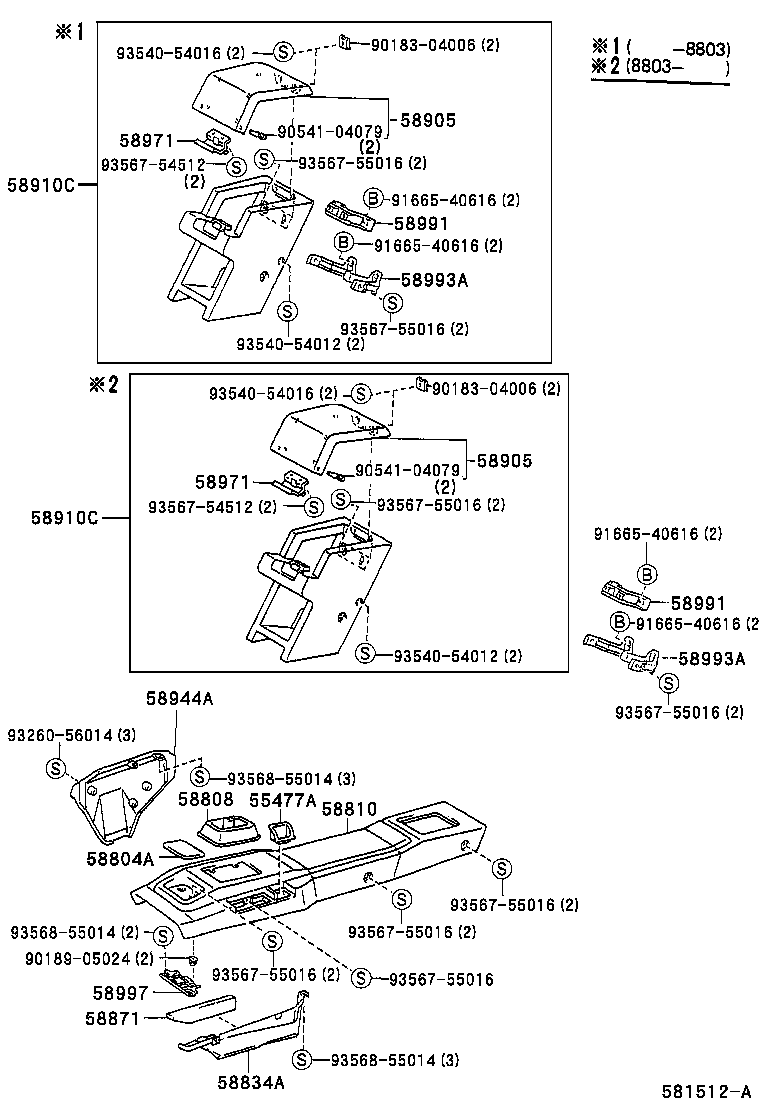

AW11-WCMQR (1986)
Toyota Mr2
(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-17010 |
AW1# |
1 | ||
| 55477-17010 |
AW1# BLACK |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-1704001 |
AW1# BLACK,TRIM2# |
1 | ||
| 58804-1704001 |
AW1# BLACK,BLACK |
1 | ||
| 58804-1704004 |
AW1# BLUE,DARK BLUE |
1 | ||
| 58804-1704011 |
AW1# BLACK,TRIM2# |
1 | ||
| 58804-1702001 |
AW1# BLACK,BLACK |
1 | ||
| 58804-1704004 |
AW1# DARK BLUE,TRIM8# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1701001 |
AW1#..5F BLACK,BLACK |
1 | ||
| 58808-17010 |
AW1#..5F |
1 | ||
| 58808-1701004 |
AW1#..5F BLUE,DARK BLUE |
1 | ||
| 58808-1701001 |
AW1#..5F BLACK,TRIM2# |
1 | ||
| 58808-1701004 |
AW1#..5F DARK BLUE,TRIM8# |
1 | ||
| 58808-1701011 |
AW1#..5F BLACK,TRIM2# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58801-1701001 |
AW1# BLACK,BLACK |
1 | ||
| 58801-1709001 |
AW11..5F BLACK,TRIM2# |
1 | ||
| 58801-1709004 |
AW11..5F DARK BLUE,TRIM8# |
1 | ||
| 58801-1703001 |
AW11..5F W/LEATHER,BLACK,BLACK |
1 | ||
| 58801-1709001 |
AW11..5F BLACK,BLACK |
1 | ||
| 58801-1709011 |
AW11..5F BLACK,TRIM2# |
1 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-1702011 |
AW1# BLACK,TRIM2# |
1 | ||
| 58834-1702001 |
AW1# BLACK,TRIM2# |
1 | ||
| 58834-1702004 |
AW1# BLUE,DARK BLUE |
1 | ||
| 58834-1702001 |
AW1# BLACK,BLACK |
1 | ||
| 58834-1702004 |
AW1# DARK BLUE,TRIM8# |
1 | ||
| 58871 - CUSHION, CONSOLE BOX | ||||
| 58871-17020 |
AW1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1702104 |
AW1# DARK BLUE,TRIM8# |
1 | ||
| 58905-1702101 |
AW1# BLACK,BLACK |
1 | ||
| 58905-1702001 |
AW1# BLACK,BLACK |
1 | ||
| 58905-1702101 |
AW1# BLACK,TRIM2# |
1 | ||
| 58905-1702104 |
AW1# BLUE,DARK BLUE |
1 | ||
| 58905-1702111 |
AW1# BLACK,TRIM2# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1702104 |
AW1# DARK BLUE,TRIM8# |
1 | ||
| 58905-1702101 |
AW1# BLACK,BLACK |
1 | ||
| 58905-1702001 |
AW1# BLACK,BLACK |
1 | ||
| 58905-1702101 |
AW1# BLACK,TRIM2# |
1 | ||
| 58905-1702104 |
AW1# BLUE,DARK BLUE |
1 | ||
| 58905-1702111 |
AW1# BLACK,TRIM2# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-1901601 |
AW1# BLACK,BLACK |
1 | ||
| 58910-1701101 |
AW1# BLACK,TRIM2# |
1 | ||
| 58910-1901501 |
AW1# BLACK,BLACK |
1 | ||
| 58910-1701104 |
AW1# DARK BLUE,TRIM8# |
1 | ||
| 58910-1901604 |
AW1# BLUE,DARK BLUE |
1 | ||
| 58910-1701111 |
AW1# BLACK,TRIM2# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-1901601 |
AW1# BLACK,BLACK |
1 | ||
| 58910-1701101 |
AW1# BLACK,TRIM2# |
1 | ||
| 58910-1901501 |
AW1# BLACK,BLACK |
1 | ||
| 58910-1701104 |
AW1# DARK BLUE,TRIM8# |
1 | ||
| 58910-1901604 |
AW1# BLUE,DARK BLUE |
1 | ||
| 58910-1701111 |
AW1# BLACK,TRIM2# |
1 | ||
| 58944A - COVER, CONSOLE, REAR | ||||
| 58944-1703011 |
AW1# BLACK,TRIM2# |
1 | ||
| 58944-1701001 |
AW1# BLACK,BLACK |
1 | ||
| 58944-1703004 |
AW1# DARK BLUE,TRIM8# |
1 | ||
| 58944-1703004 |
AW1# BLUE,DARK BLUE |
1 | ||
| 58944-1703001 |
AW1# BLACK,BLACK |
1 | ||
| 58944-1703001 |
AW1# BLACK,TRIM2# |
1 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-1701001 |
AW1# BLACK,BLACK |
1 | ||
| 58971-1701004 |
AW1# BLUE,DARK BLUE |
1 | ||
| 58971-1701001 |
AW1# BLACK,TRIM2# |
1 | ||
| 58971-1701004 |
AW1# DARK BLUE,TRIM8# |
1 | ||
| 58971-1701011 |
AW1# BLACK,TRIM2# |
1 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-1701001 |
AW1# BLACK,BLACK |
1 | ||
| 58971-1701004 |
AW1# BLUE,DARK BLUE |
1 | ||
| 58971-1701001 |
AW1# BLACK,TRIM2# |
1 | ||
| 58971-1701004 |
AW1# DARK BLUE,TRIM8# |
1 | ||
| 58971-1701011 |
AW1# BLACK,TRIM2# |
1 | ||
| 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER | ||||
| 58991-17010 |
AW1# |
1 | ||
| 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER | ||||
| 58991-17010 |
AW1# |
1 | ||
| 58993A - BRACKET, CONSOLE BOX MOUNTING, LOWER | ||||
| 58993-17010 |
AW1# |
1 | ||
| 58993A - BRACKET, CONSOLE BOX MOUNTING, LOWER | ||||
| 58993-17010 |
AW1# |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-17010 |
AW1# |
1 | ||
| Common parts | ||||
| 90183-04006 | ||||
| 90189-05024 | ||||
| 90541-04079 | ||||
| 91665-40616 | ||||
| 93260-56014 | ||||
| 93540-54012 | ||||
| 93540-54016 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
