AW11-WCMQR (1986)
Toyota Mr2
Production
Aug 1986
-
Dec 1989
Engine
4AGZE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

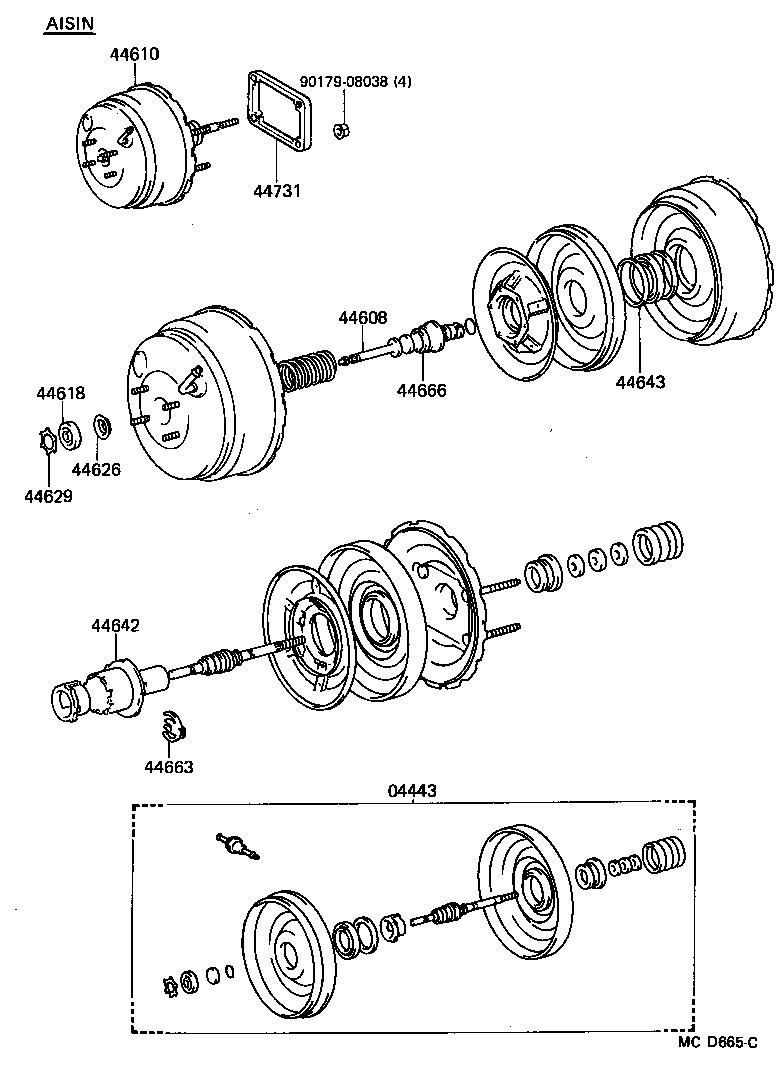

ILLUST NO. 1 OF 2(8608- )SPC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-17010 |
AW1# |
1 | ||
| 04443-17060 |
AW11..SPC JKC |
1 | ||
| 04443-17100 |
AW11..SPC AISIN |
1 | ||
| 04443-17060 |
AW11..SPC JKC |
1 | ||
| 04443-17101 |
AW11..SPC AISIN |
1 | ||
| 04443-17101 |
AW11..SPC AISIN |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-20810 |
AW11..SPC JKC |
1 | ||
| 44606-20800 |
AW11..SPC AISIN |
1 | ||
| 44608-20810 |
AW11..SPC JKC |
1 | ||
| 44606-12520 |
AW1# |
1 | ||
| 44606-20800 |
AW11..SPC AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-17010 |
AW1# |
1 | ||
| 44610-17080 |
AW11..SPC |
1 | ||
| 44610-17081 |
AW11..SPC |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
AW1# |
1 | ||
| 44621-14030 |
AW11..SPC |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
AW11..SPC |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
AW1# |
1 | ||
| 44628-60010 |
AW11..SPC |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-16050 |
AW1# |
1 | ||
| 44642-20800 |
AW11..SPC |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-20800 |
AW11..SPC |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
AW1# |
1 | ||
| 44635-20800 |
AW11..SPC |
1 | ||
| 44666 - CASE, REACTION DISC | ||||
| 44657-27260 |
AW11..SPC |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-17010 |
AW1# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

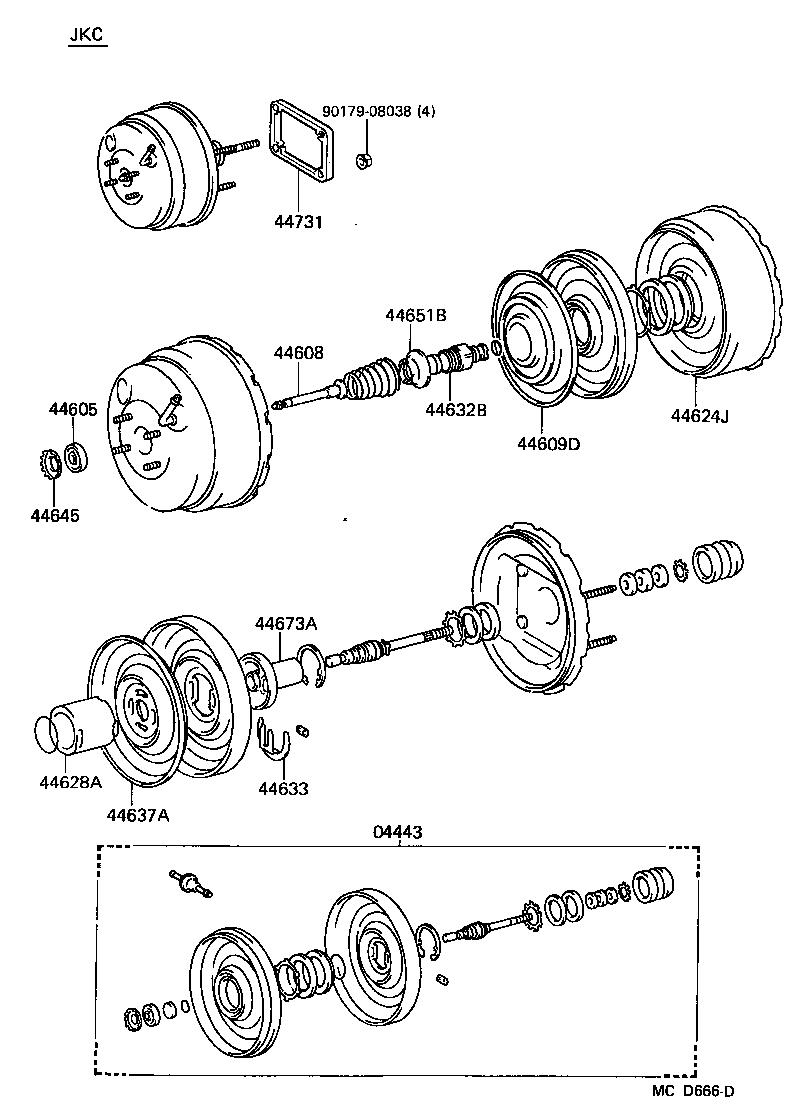

ILLUST NO. 1 OF 2(8608- )SPC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-17010 |
AW1# |
1 | ||
| 04443-17060 |
AW11..SPC JKC |
1 | ||
| 04443-17100 |
AW11..SPC AISIN |
1 | ||
| 04443-17060 |
AW11..SPC JKC |
1 | ||
| 04443-17101 |
AW11..SPC AISIN |
1 | ||
| 04443-17101 |
AW11..SPC AISIN |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-30350 |
AW11..SPC |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-20810 |
AW11..SPC JKC |
1 | ||
| 44606-20800 |
AW11..SPC AISIN |
1 | ||
| 44608-20810 |
AW11..SPC JKC |
1 | ||
| 44606-12520 |
AW1# |
1 | ||
| 44606-20800 |
AW11..SPC AISIN |
1 | ||
| 44609D - PLATE & RETAINER SUB-ASSY, BOOSTER | ||||
| 44609-20810 |
AW11..SPC |
1 | ||
| 44609-17090 |
AW11..SPC |
1 | ||
| 44624J - PLATE, BOOSTER CENTER | ||||
| 44624-20810 |
AW11..SPC |
1 | ||
| 44628A - BODY, BOOSTER CENTER | ||||
| 44628-20810 |
AW11..SPC |
1 | ||
| 44632B - HUB, BOOSTER REACTION DISK | ||||
| 44632-27290 |
AW11..SPC |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-20811 |
AW11..SPC |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-20810 |
AW11..SPC |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-10080 |
AW11..SPC |
1 | ||
| 44651B - NUT, BOOSTER | ||||
| 44651-20810 |
AW11..SPC |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-20810 |
AW11..SPC |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-17010 |
AW1# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
