AW11-WCMQR (1986)

Toyota Mr2

Production Aug 1986 - Dec 1989
Engine 4AGZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

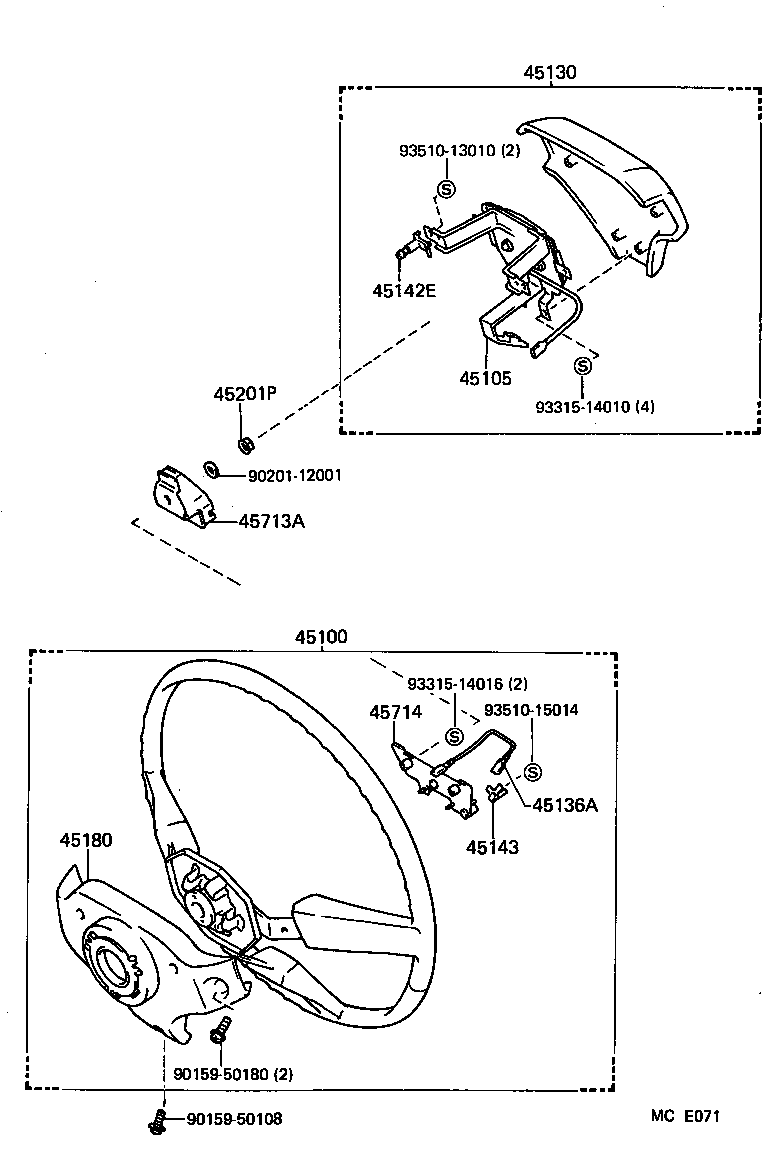

(8608- )

Click highlighted areas on diagram

diagram 45100 45105 45130 45136A 45142E 45143 45180 45201P 45713A 45714 9015950108 9015950180 9020112001 9331514010 9331514016 9351013010 9351015014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-12450

AW11

LEATHER

 1
45100-1230001

AW1#

BLACK

 1
45100-1706001

AW11..5F

BLACK,BLACK

 1
45100-1706004

AW11..5F

BLUE,DARK BLUE

 1
45100-1706004

AW11..5F

DARK BLUE,TRIM8#

 1
45100-1706011

AW11..5F

BLACK,TRIM2#

 1
45100-1706001

AW11..5F

BLACK,TRIM2#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-17020

AW10;AW11..5F

 1
45105-17020

AW11..5F

 1
45130 - BUTTON ASSY, HORN
45130-1702001

AW11..5F

BLACK,BLACK

 1
45130-1702004

AW11..5F

BLUE,DARK BLUE

 1
45130-1702001

AW10;AW11..5F

BLACK,TRIM2#

 1
45130-1702011

AW10;AW11..5F

BLACK,TRIM2#

 1
45130-1702004

AW10;AW11..5F

DARK BLUE,TRIM8#

 1
45130-10150

AW11..SPC

SUPER EDITION

 1
45142E - PIECE, HORN CONTACT
45142-20060

AW1#

 2
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-1701001

AW11..5F

BLACK,BLACK

 1
45180-1701001

AW10;AW11..5F

BLACK,TRIM2#

 1
45180-1701011

AW10;AW11..5F

BLACK,TRIM2#

 1
45180-1701004

AW10;AW11..5F

DARK BLUE,TRIM8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

AW1#

 1
90179-12025

AW1#

 1
Common parts
90159-50108
90159-50180
90201-12001
93315-14010
93315-14016
93510-13010
93510-15014

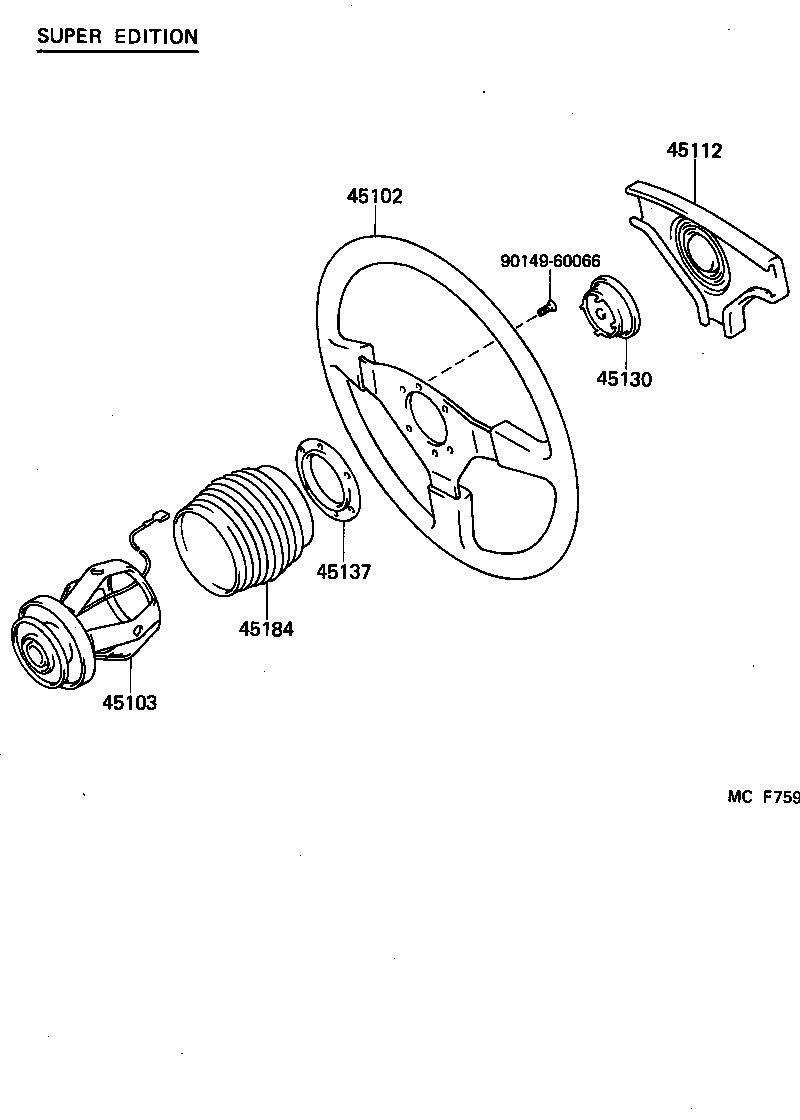

(8801- )

Click highlighted areas on diagram

diagram 45102 45103 45112 45130 45137 45184 9014960066
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45111-10060

AW11..SPC

SUPER EDITION

 1
45103 - HUB SUB-ASSY, STEERING WHEEL
45103-10170

AW11..SPC

SUPER EDITION

 1
45112 - PAD, STEERING WHEEL
45112-10190

AW11..SPC

SUPER EDITION

 1
45130 - BUTTON ASSY, HORN
45130-1702001

AW11..5F

BLACK,BLACK

 1
45130-1702004

AW11..5F

BLUE,DARK BLUE

 1
45130-1702001

AW10;AW11..5F

BLACK,TRIM2#

 1
45130-1702011

AW10;AW11..5F

BLACK,TRIM2#

 1
45130-1702004

AW10;AW11..5F

DARK BLUE,TRIM8#

 1
45130-10150

AW11..SPC

SUPER EDITION

 1
45137 - PLATE, HORN BUTTON STOP
45137-10010

AW11..SPC

SUPER EDITION

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-10050

AW11..SPC

SUPER EDITION

 1
45184-1207001

AW1#

BLACK

 1
Common parts
90149-60066
