AW11-WCMQR (1986)

Toyota Mr2

Production Aug 1986 - Dec 1989
Engine 4AGZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

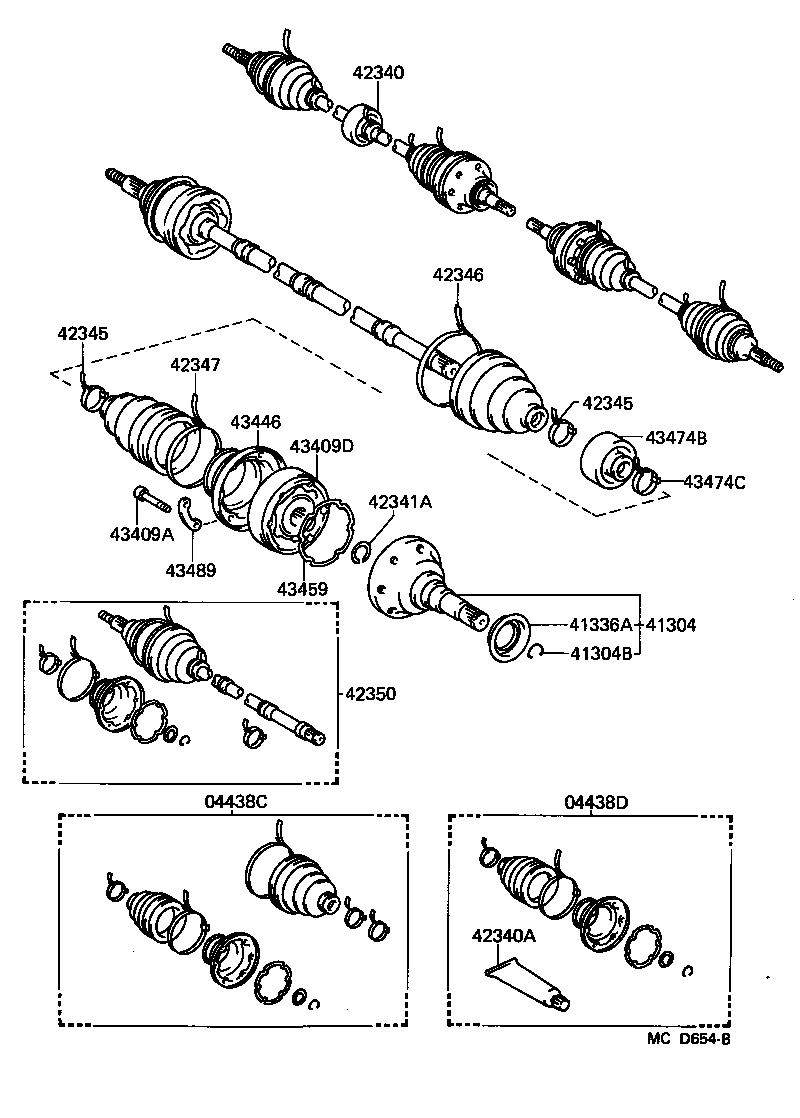

ILLUST NO. 2 OF 2(8608- )SPC

Click highlighted areas on diagram

diagram 04438C 04438D 41304 41304B 41336A 42340 42340A 42341A 42345 42345 42346 42347 42350 43409A 43409D 43446 43459 43474B 43474C 43489
Part # Description Qty Price
04438C - BOOT KIT, REAR DRIVE SHAFT
04437-17020

AW11..SPC

 2
04437-17020

AW11..SPC

 2
04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT
04438-17030

AW11..5F

 2
04437-17010

AW11..SPC

 2
04437-17010

AW11..SPC

 2
41304 - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR
41304-17030

AW11..5F..SPC

RH

 1
41309-17030

AW11..5F..SPC

LH

 1
41309-17030

AW11..5F..SPC

LH

 1
41304-17030

AW11..5F..SPC

RH

 1
41304B - RING, HOLE SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
90521-33002

AW11..5F..SPC

 2
90521-33002

AW11..5F..SPC

 1
41336A - COVER, DUST(FOR DIFFERENTIAL SIDE GEAR SHAFT)
41336-17020

AW11..5F..SPC

LH

 1
41336-17010

AW11..5F..SPC

RH

 1
41336-17010

AW11..5F..SPC

RH

 1
41336-17020

AW11..5F..SPC

LH

 1
42340 - SHAFT ASSY, REAR DRIVE
42340-17020

AW11..5F

LH

 1
42330-17020

AW11..5F

RH

 1
42330-17060

AW11..5F..SPC

RH

 1
42340-17040

AW11..5F..SPC

LH

 1
42340-17040

AW11..5F..SPC

LH

 1
42330-17060

AW11..5F..SPC

RH

 1
42340A - GREASE (FOR REAR DRIVE SHAFT)
90999-94029

AW11..SPC

43G

 1
90999-94029

AW11..SPC

 2
90999-94028

AW11..SPC

90G

 1
90999-94028

AW11..SPC

 2
42341A - RING, SNAP (FOR REAR DRIVE SHAFT)
90520-26028

AW11..SPC

 2
90520-26028

AW11..SPC

 1
42345 - CLAMP, REAR DRIVE SHAFT BOOT
42345-14010

AW11..5F

 4
42345-14010

AW11..SPC

 2
42345 - CLAMP, REAR DRIVE SHAFT BOOT
42345-14010

AW11..5F

 4
42345-14010

AW11..SPC

 2
42346 - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
90949-01339

AW11..SPC

 1
42347 - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
90949-01340

AW11..SPC

 1
90949-01340

AW11..SPC

 2
42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD
43470-19065

AW11..5F

LH

 1
43460-19065

AW11..5F

RH

 1
43460-19235

AW11..5F..SPC

RH

 1
43470-19175

AW11..5F..SPC

LH

 1
43460-19235

AW11..5F..SPC

RH

 1
43470-19175

AW11..5F..SPC

LH

 1
43409A - BOLT (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)
90110-10007

AW11..SPC

 12
43409D - JOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE
43409-17010

AW11..SPC

 2
43446 - COVER, REAR AXLE INBOARD JOINT
43446-17010

AW11..SPC

 2
43459 - GASKET, REAR AXLE INBOARD JOINT END COVER
43459-17010

AW11..SPC

 2
43474B - DAMPER, REAR DRIVE SHAFT
43474-17020

AW11..SPC

 1
43474-17010

AW1#

 1
43474C - CLAMP (FOR REAR DRIVE SHAFT DAMPER)
42345-14010

AW1#

 2
43489 - WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT
43489-17010

AW11..SPC

 6
