AW11-WCMQR (1986)
Toyota Mr2

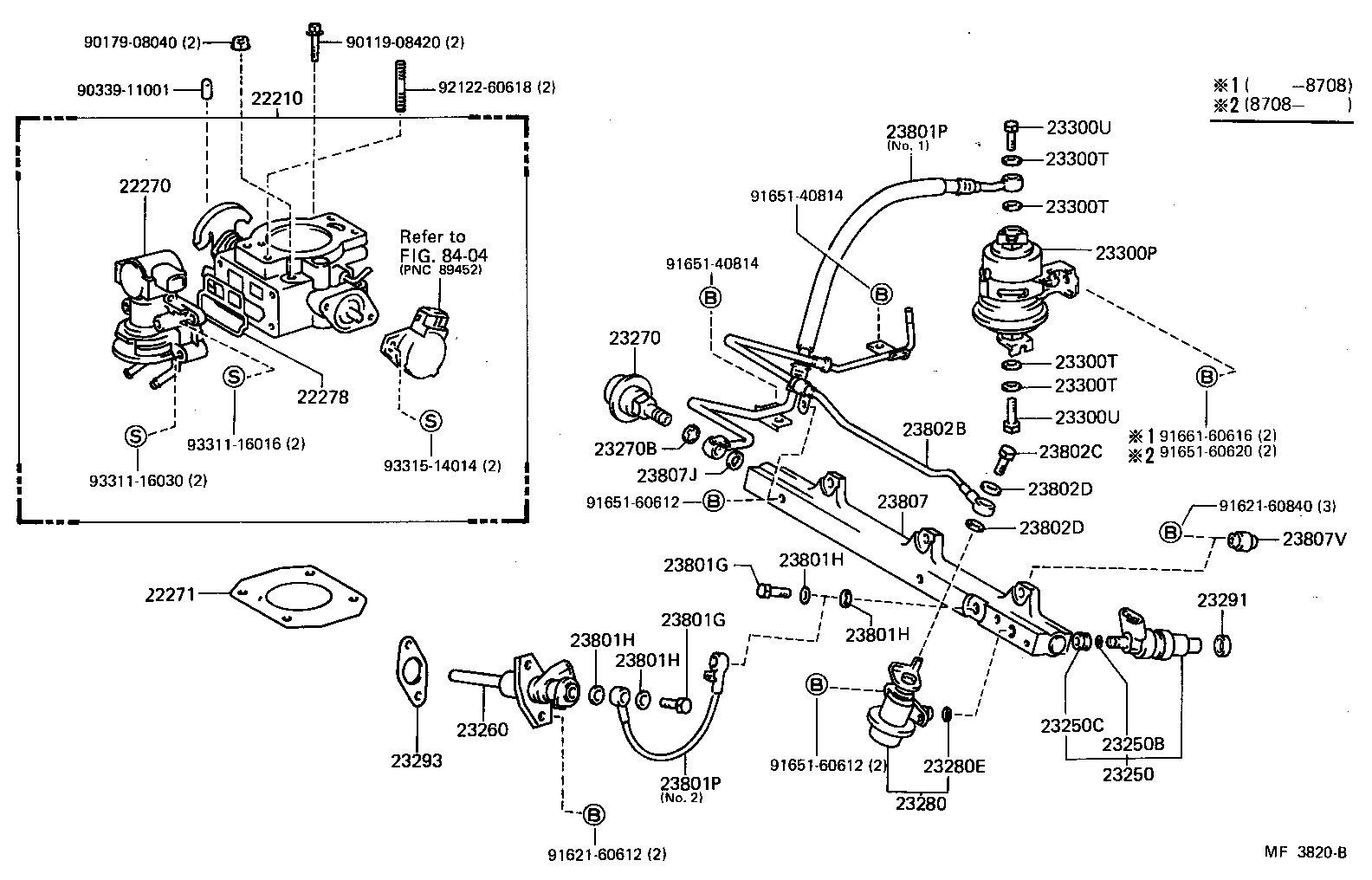

ILLUST NO. 1 OF 2(8608- )4AGZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-16150 |
4AGZE..AW11 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-16010 |
4AGZE..AW11 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-16030 |
4AGZE..AW11 |
1 | ||
| 22278 - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22278-16010 |
4AGZE..AW11 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-1606003 |
4AGZE..AW11 MARK YELLOW,MARK YELLOW |
4 | ||
| 23209-1606004 |
4AGZE..AW11 MARK WHITE,MARK WHITE |
4 | ||
| 23209-1606102 |
4AGZE..AW11 MARK BLACK |
4 | ||
| 23209-1606102 |
4AGZE..AW11 MARK BLACK,MARK BLACK |
4 | ||
| 23209-1606002 |
4AGZE..AW11 MARK BLACK,MARK BLACK |
4 | ||
| 23209-1606101 |
4AGZE..AW11 MARK BLUE |
4 | ||
| 23209-1606104 |
4AGZE..AW11 MARK WHITE |
4 | ||
| 23209-1606103 |
4AGZE..AW11 MARK YELLOW,MARK YELLOW |
4 | ||
| 23209-1606001 |
4AGZE..AW11 MARK BLUE,MARK BLUE |
4 | ||
| 23209-1606104 |
4AGZE..AW11 MARK WHITE,MARK WHITE |
4 | ||
| 23209-1606103 |
4AGZE..AW11 MARK YELLOW |
4 | ||
| 23209-1606101 |
4AGZE..AW11 MARK BLUE,MARK BLUE |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
4AG#..AW11 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
4AG#..AW11 |
4 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-19075 |
4AGZE..AW11 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-70020 |
4AGZE..AW11 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23232-28010 |
4AG#..AW11 |
1 | ||
| 23232-28010 |
4AGZE..AW11 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-16050 |
4AGZE..AW11 |
1 | ||
| 23280-16051 |
4AGZE..AW11 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
4AG#..AW11 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
4AG#..AW11 |
4 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-16010 |
4AG#..AW11 |
1 | ||
| 23293-16010 |
4AGZE..AW11 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-19165 |
4AG#..AW11 |
1 | ||
| 23300-19065 |
4AG#..AW11 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
4AG#..AW11 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
4AG#..AW11 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
4AG#..AW11 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
4AG#..AW11 |
4 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
4AG#..AW11 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
4AG#..AW11 |
2 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08003 |
4AG#..AW11 |
2 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08003 |
4AG#..AW11 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08005 |
4AG#..AW11 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08005 |
4AG#..AW11 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08005 |
4AG#..AW11 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08005 |
4AG#..AW11 |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23901-16080 |
4AGZE..AW11 NO.2 |
1 | ||
| 23902-16060 |
4AGZE..AW11 NO.1 |
1 | ||
| 23902-16091 |
4AGZE..AW11 NO.1 |
1 | ||
| 23901-16080 |
4AGZE..AW11 NO.2 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23901-16080 |
4AGZE..AW11 NO.2 |
1 | ||
| 23902-16060 |
4AGZE..AW11 NO.1 |
1 | ||
| 23902-16091 |
4AGZE..AW11 NO.1 |
1 | ||
| 23901-16080 |
4AGZE..AW11 NO.2 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23903-16030 |
4AGZE..AW11 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-08003 |
4AGZE..AW11 |
1 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-08005 |
4AGZE..AW11 |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-08005 |
4AGZE..AW11 |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-16040 |
4AGZE..AW11 |
1 | ||
| 23807-16041 |
4AGZE..AW11 |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90201-12109 |
4AGZE..AW11 |
1 | ||
| 90201-12109 |
4AG#..AW11 |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08009 |
4AG#..AW11 |
3 | ||
| Common parts | ||||
| 90119-08420 | ||||
| 90179-08040 | ||||
| 90339-11001 | ||||
| 91621-60612 | ||||
| 91621-60840 | ||||
| 91651-40814 | ||||
| 91651-60612 | ||||
| 91651-60620 | ||||
| 91661-60616 | ||||
| 92122-60618 | ||||
| 93311-16016 | ||||
| 93311-16030 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 8404 | ||||
