AW11-WCMQR (1986)

Toyota Mr2

Production Aug 1986 - Dec 1989
Engine 4AGZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )4AGZE

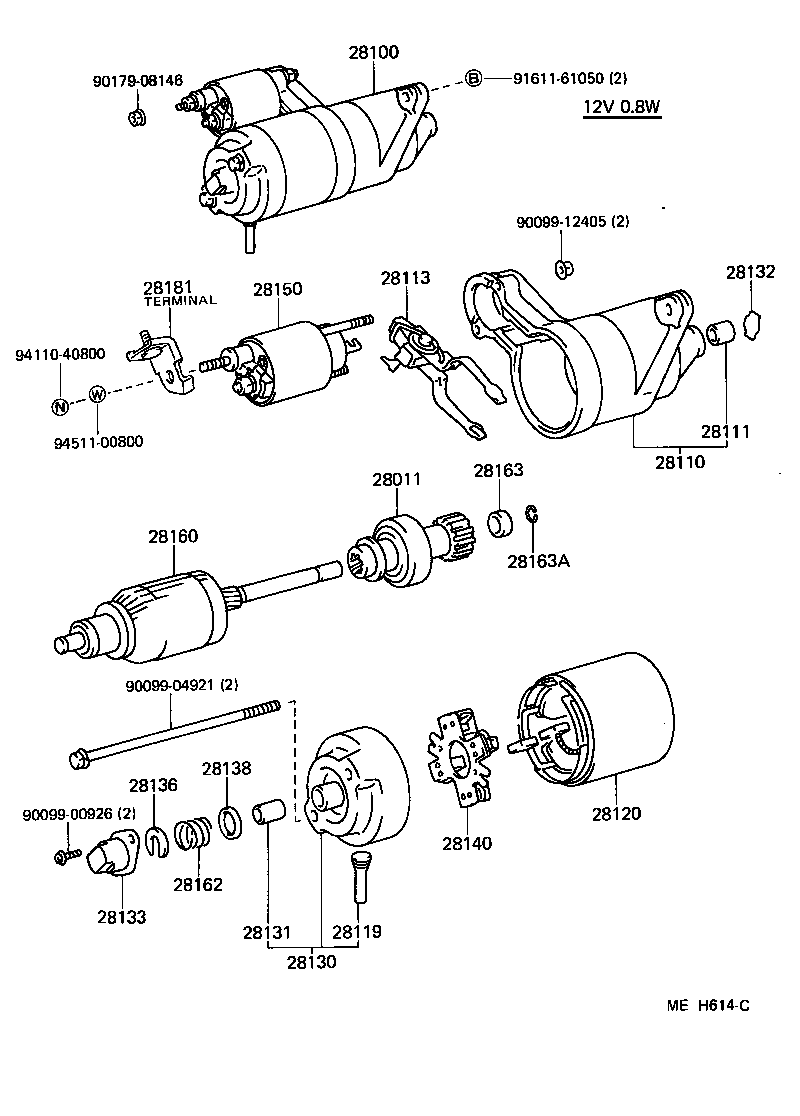

Click highlighted areas on diagram

diagram 28011 28100 28110 28111 28113 28119 28120 28130 28131 28132 28133 28136 28138 28140 28150 28160 28162 28163 28163A 28181 9009900926 9009904921 9009912405 9017908146 9161161050 9411040800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042

3ALU,4AG#..AW1#

12V 1.0KW

 1
28011-16010

4AGZE..AW11

12V 0.8KW

 1
28011-16010

4AGZE..AW11

 1
28011-26042

3ALU,4AG#..AW1#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
28100 - STARTER ASSY
28100-16010

4AGZE..AW11

12V 0.8KW,12V 0.8KW

 1
28100-16010

4AGZE..AW11

12V 0.8KW

 1
28100-16020

4AGZE..AW11

12V 1.0KW,12V 1.0KW

 1
28100-16020

4AGZE..AW11

12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-16010

4AGZE..AW11

 1
28110-16010

4AGZE..AW11

12V 0.8KW

 1
28110-16020

4AGZE..AW11

ｶﾝﾚｲﾁ ｼﾖｳ

 1
28110-16020

4AGZE..AW11

12V 1.0KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

3ALU,4AG#..AW1#

 1
28111-51011

3ALU,4AG#..AW1#

12V 0.8KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-16010

4AGZE..AW11

12V 0.8KW

 1
28113-16010

4AGZE..AW11

 1
28119 - COVER, STARTER END FRAME
28199-77090

3ALU,4AGZE..AW1#

12V 0.8KW

 1
28199-77090

3ALU,4AGZE..AW1#

 1
28120 - YOKE ASSY, STARTER
28120-26071

3ALU,4AG#..AW1#

12V 1.0KW

 1
28120-15010

3ALU,4AGZE..AW1#

 1
28120-26071

3ALU,4AG#..AW1#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
28120-15010

3ALU,4AGZE..AW1#

12V 0.8KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-16010

4AGZE..AW11

12V 0.8KW

 1
28130-72010

4AGZE..AW11

12V 1.0KW

 1
28130-16010

4AGZE..AW11

 1
28130-72010

4AGZE..AW11

ｶﾝﾚｲﾁ ｼﾖｳ

 1
28131 - BUSH, COMMUTATOR END FRAME
90099-10134

3ALU,4AG#..AW1#

12V 0.8KW

 1
90099-10134

3ALU,4AG#..AW1#

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28166-24030

4AGZE..AW11

 1
28166-24030

4AGZE..AW11

12V 0.8KW

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-15010

3ALU,4AG#..AW1#

12V 0.8KW

 1
28132-15010

3ALU,4AG#..AW1#

 1
28136 - PLATE, STARTER LOCK
28136-15010

3ALU,4AG#..AW1#

 1
28136-15010

3ALU,4AG#..AW1#

12V 0.8KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-15010

3ALU,4AG#..AW1#

12V 0.8KW

 1
28138-15010

3ALU,4AG#..AW1#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-15010

3ALU,4AG#..AW1#

12V 0.8KW

 1
28140-15010

3ALU,4AG#..AW1#

 1
28140-26070

3ALU,4AG#..AW1#

12V 1.0KW

 1
28140-26070

3ALU,4AG#..AW1#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-37010

3ALU,4AG#..AW1#

 1
28150-37010

3ALU,4AG#..AW1#

12V 0.8KW

 1
28150-72080

4AGZE..AW11

12V 1.0KW

 1
28150-72080

4AGZE..AW11

ｶﾝﾚｲﾁ ｼﾖｳ

 1
28160 - ARMATURE ASSY, STARTER
28160-16010

4AGZE..AW11

 1
28160-16010

4AGZE..AW11

12V 0.8KW

 1
28160-26070

3ALU,4AG#..AW1#

12V 1.0KW

 1
28160-26070

3ALU,4AG#..AW1#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
28162 - SPRING, STARTER BRAKE
28162-15010

3ALU,4AG#..AW1#

 1
28162-15010

3ALU,4AG#..AW1#

12V 0.8KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

3ALU,4AG#..AW1#

12V 0.8KW

 1
28163-40011

3ALU,4AG#..AW1#

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

3ALU,4AG#..AW1#

12V 0.8KW

 1
90099-07047

3ALU,4AG#..AW1#

 1
28181 - TERMINAL, STARTER
82951-17010

4AG#..AW11

 1
Common parts
90099-00926
90099-04921
90099-12405
90179-08146
91611-61050
94110-40800
94511-00800
